Valve Rocker Arm Cover Installation - Left

  1. Install the valve rocker arm cover gasket into the valve rocker arm cover.
  2. Apply sealer GM P/N United States 12345739, GM P/N Canada 10953541 or the equivalent to the notches where the cylinder head and intake manifold meet.
  3. Install the valve rocker arm cover.
  4. Install the valve rocker arm cover bolts.

    Tighten

    Tighten the valve rocker arm cover bolts to 10 N.m (89 INCH lbs).

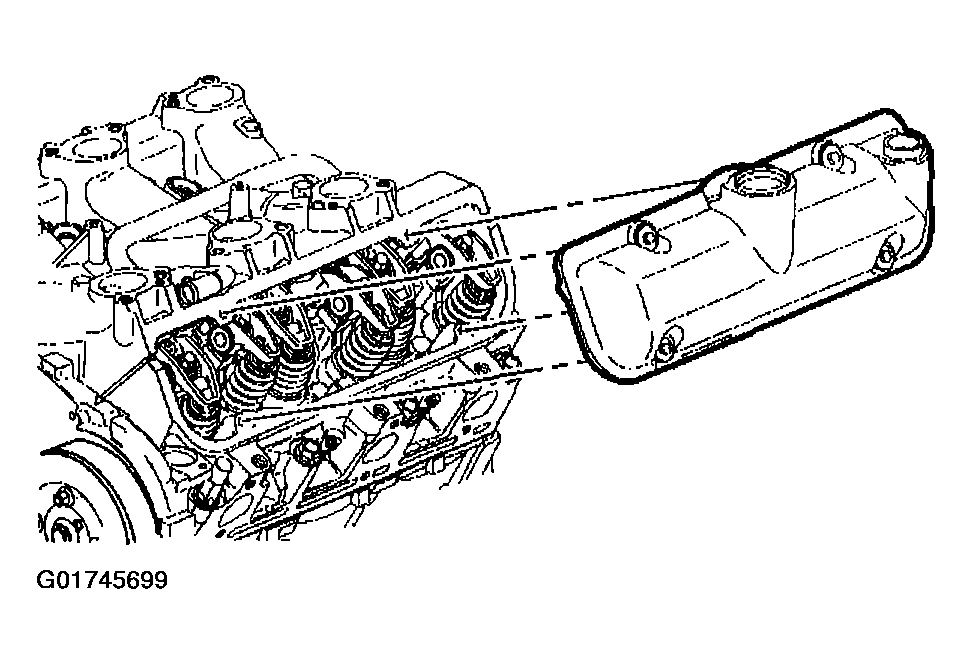

    Fig 1: Installing Rocker Arm Valve Cover (Left)
    G01745699Courtesy of GENERAL MOTORS CORP.
