Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the front fender liner to the wheelhouse opening over the stud.

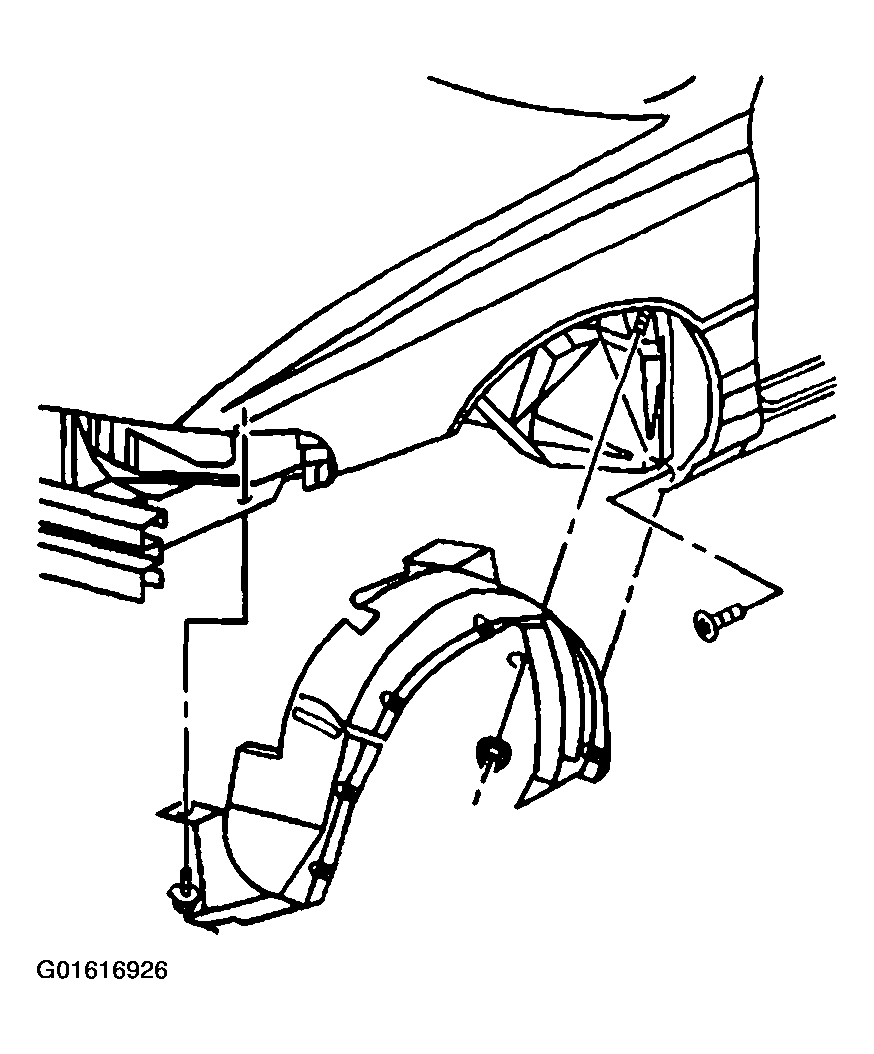

    Fig 1: Front Fender Liner
    G01616926Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the nut to the stud at the rear of the front fender liner.

    Tighten

    Tighten the front fender liner nut to 3 N.m (27 lb in).

  3. Install the screws to the front fender liner at the rear of the fender.

    Tighten

    Tighten the front fender liner screws to 7 N.m (61 lb in).

  4. Install the screws to the front tab of the front fender liner at the lower engine compartment side rail.

    Tighten

    Tighten the front fender liner screws to 7 N.m (61 lb in).

  5. Install the screws to the front fender liner at the front bumper fascia.

    Tighten

    Tighten the front fender liner to front bumper fascia screws to 2 N.m (18 lb in).

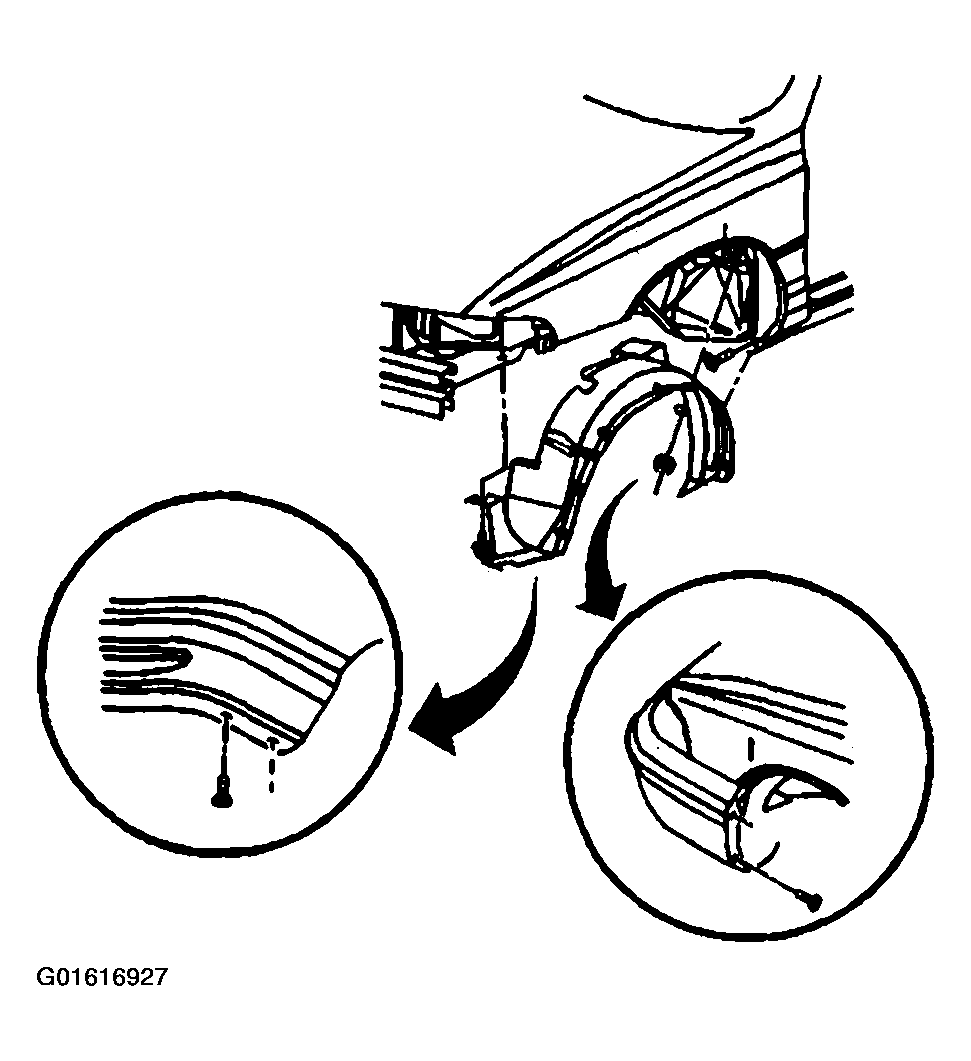

    Fig 2: Installing Screws To Fender Liner
    G01616927Courtesy of GENERAL MOTORS CORP.
