Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the hood to the vehicle with an assistant.
  2. Align the hood hinges to the alignment marks on the hood.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the bolts to the upper hood hinge, with an assistant.

    Tighten

    Tighten the upper hood hinge bolts to 27 N.m (20 lb ft).

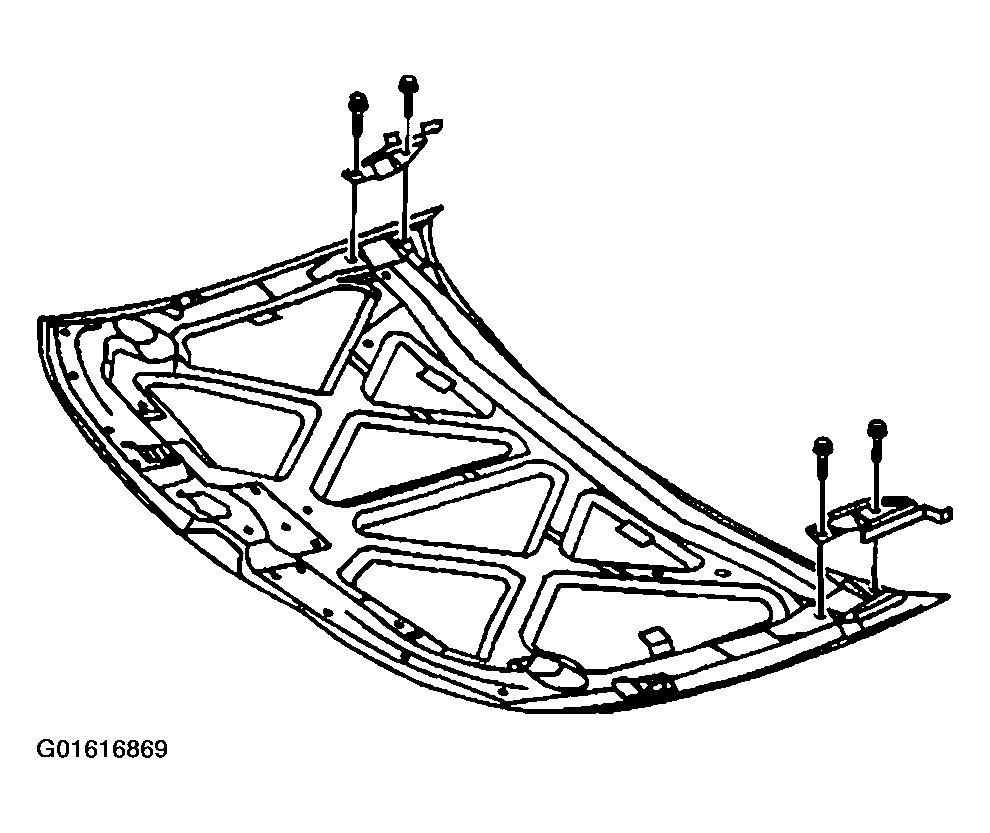

    Fig 1: Installing Upper Hood Hinges
    G01616869Courtesy of GENERAL MOTORS CORP.
  4. Install the assist rods to the hood. Refer to Assist Rod Replacement - Hood .
  5. Adjust the hood. Refer to Hood Adjustment .
