Installation Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the weather-strip to the pinch-weld flange.
  2. Start at the passenger side corner, with a pressing motion, work toward the center of the car.
  3. Install the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement .
  4. Close the hood.

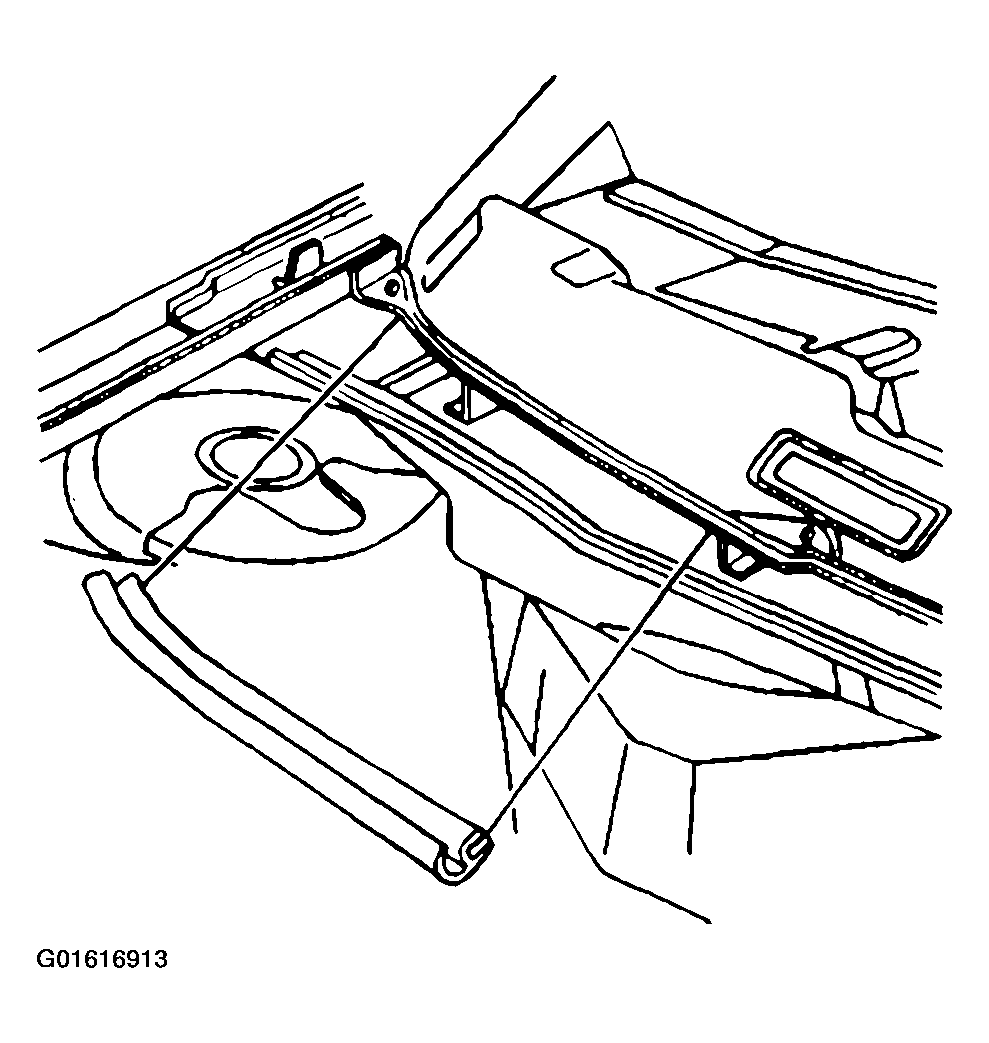

    Fig 1: Plenum Chamber Water Deflector
    G01616913Courtesy of GENERAL MOTORS CORP.
