Removal Procedure

WARNING: This page is about a different car, the 2002 Pontiac Grand Prix. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and suitably support the vehicle. Refer to LIFTING AND JACKING THE VEHICLE .
  2. Remove the push-in retainers from the engine splash shield.
  3. Remove the engine splash shield from the lower flange of the engine compartment side rail.

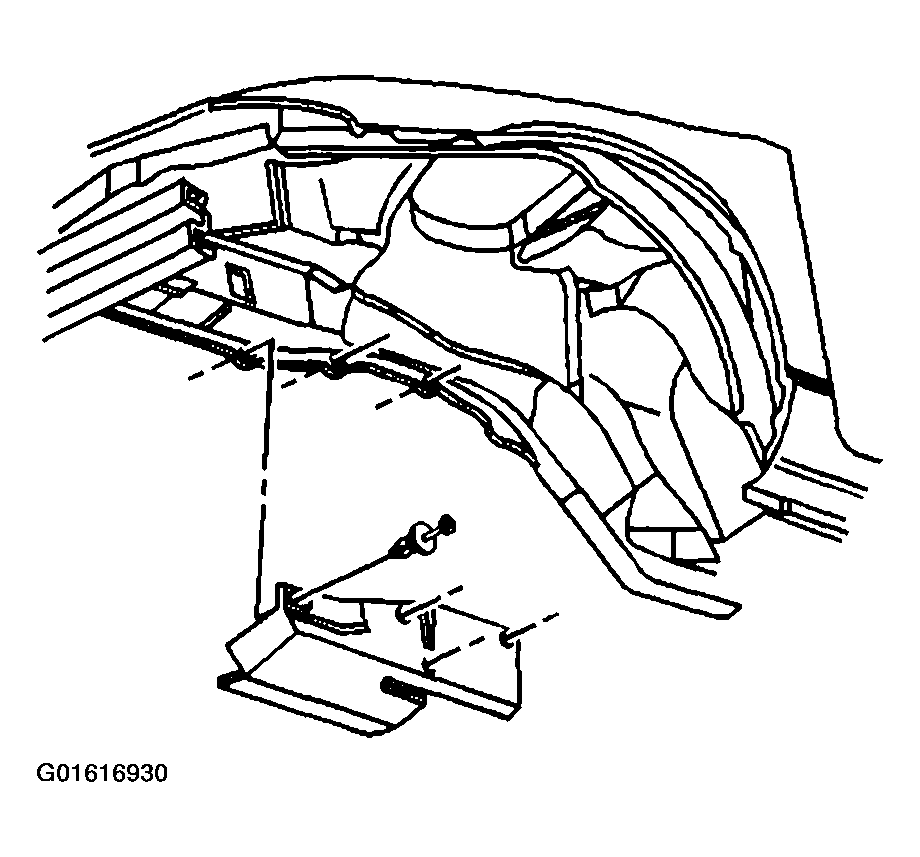

    Fig 1: Engine Splash Shield
    G01616930Courtesy of GENERAL MOTORS CORP.
