Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

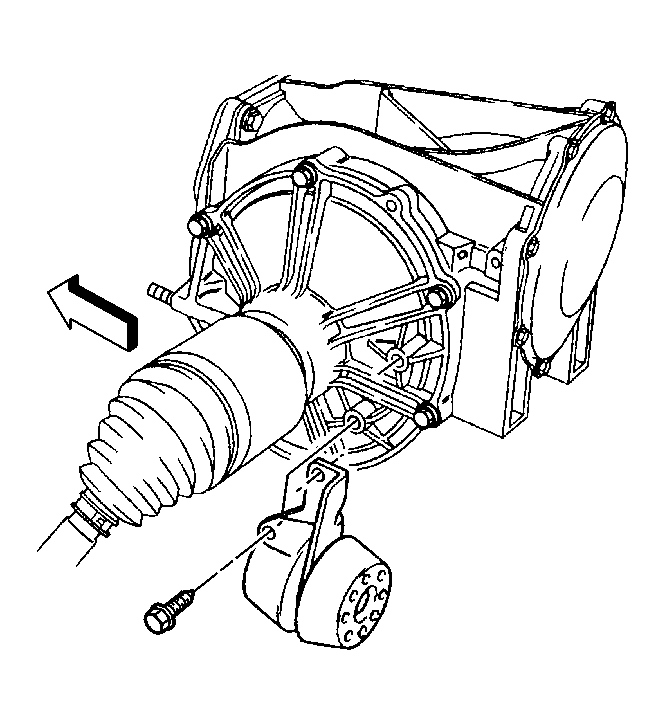

    Fig 1: Differential Cover, Damper/Tuned Absorber & Bolts
    GM71503Courtesy of GENERAL MOTORS CORP.
  1. Install the damper/tuned absorber to the differential.
    2. NOTE: Refer to Fastener Notice in Cautions and Notices.
  2. Install the damper/tuned absorber mounting bolts.

    Tighten:  Tighten the damper/tuned absorber mounting bolts to 25 N.m (18 lb ft).

  3. Install the LH rear tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
  4. Lower the vehicle.
