Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the ground strap to the stud.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the ground strap nut to the stud at the front of dash.

    Tighten

    Tighten the nut to 9 N.m (80 lb in).

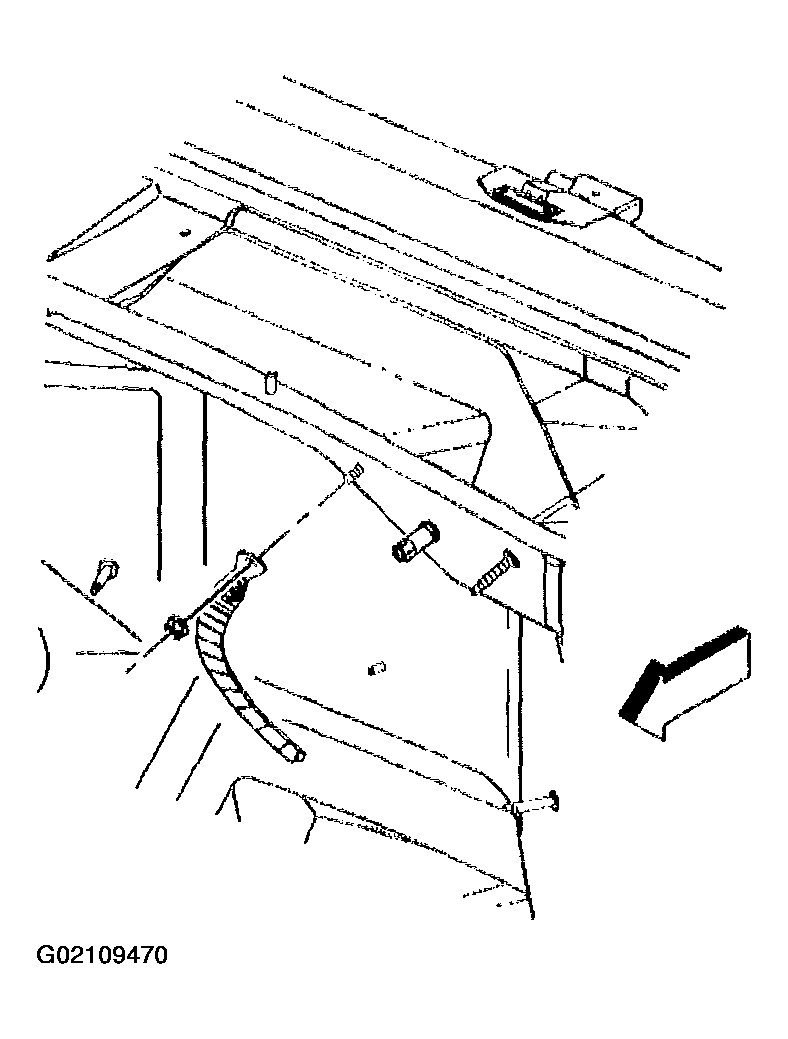

    Fig 1: Install Ground Strap & Nut
    G02109470Courtesy of GENERAL MOTORS CORP.
  3. Position the ground strap and engine wiring harness ground.
  4. Install the engine wiring harness ground bolt.

    Tighten

    Tighten the bolt to 16 N.m (12 lb ft).

  5. If necessary, install the engine sight shield. Refer to ENGINE SIGHT SHIELD REPLACEMENT (4.8L, 5.3L, AND 6.0L ENGINES) or  ENGINE SIGHT SHIELD REPLACEMENT (6.0L ENGINE W/RPOS Y91 AND Z88)  .

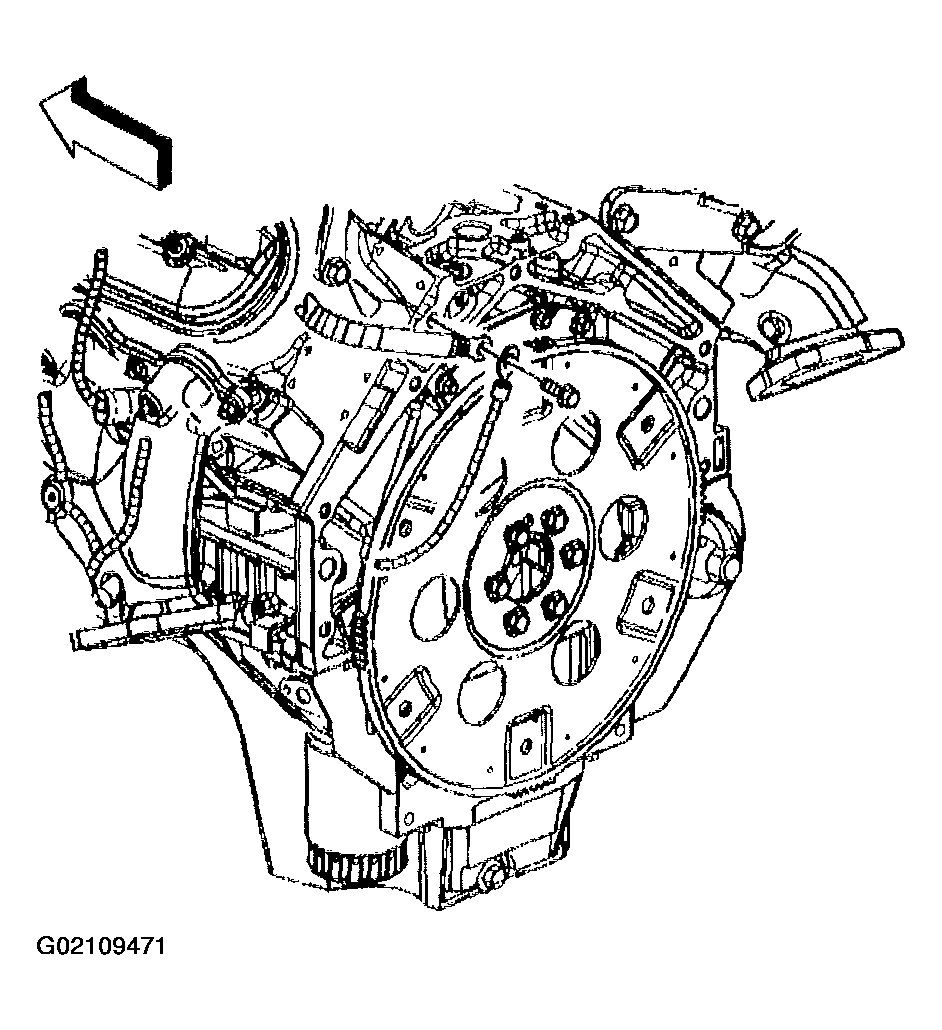

    Fig 2: Install Engine Wiring Harness Ground Bolt
    G02109471Courtesy of GENERAL MOTORS CORP.
