Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the bulb.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the 2 retaining screws.

    Tighten

    Tighten the screws to 2 N.m (17 lb in).

  3. Connect the electrical wires.
    Fig 1: Installing Bulb & Retaining Screws
    G01577268Courtesy of GENERAL MOTORS CORP.
  4. Install the exterior courtesy lamp into the rear view mirror pressing into place until fully seated.

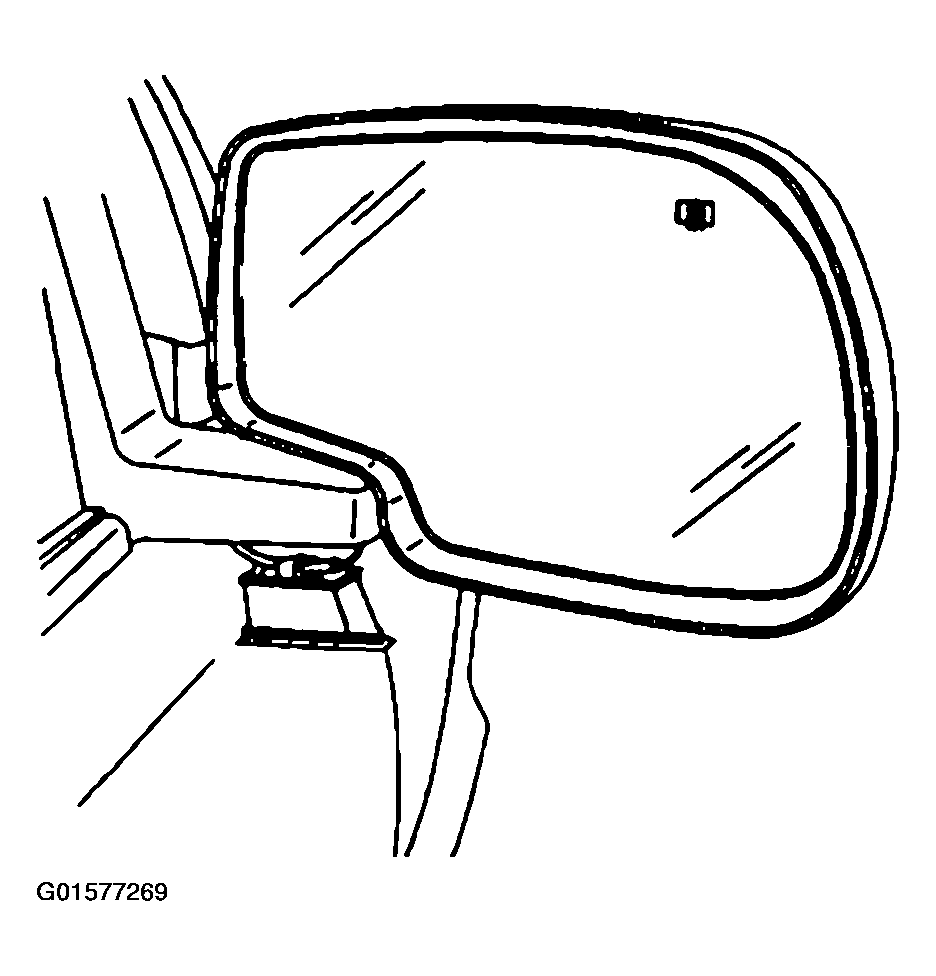

    Fig 2: Installing Exterior Courtesy Lamp
    G01577269Courtesy of GENERAL MOTORS CORP.
