Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Refer to FASTENER NOTICE .
  1. Install the fog lamp bracket bolts and bracket, as needed.

    Tighten

    Tighten the fog lamp bolt to 25 N.m (18 lb ft).

  2. Install the fog lamp to the fog lamp bracket.
  3. Install the fog lamp adjuster bolt and spring to the adjuster nut.
  4. Install the push pin retainers that attach the fog lamp to the bracket.
  5. Connect the electrical connector to the fog lamp.
  6. Inspect the fog lamp aiming.

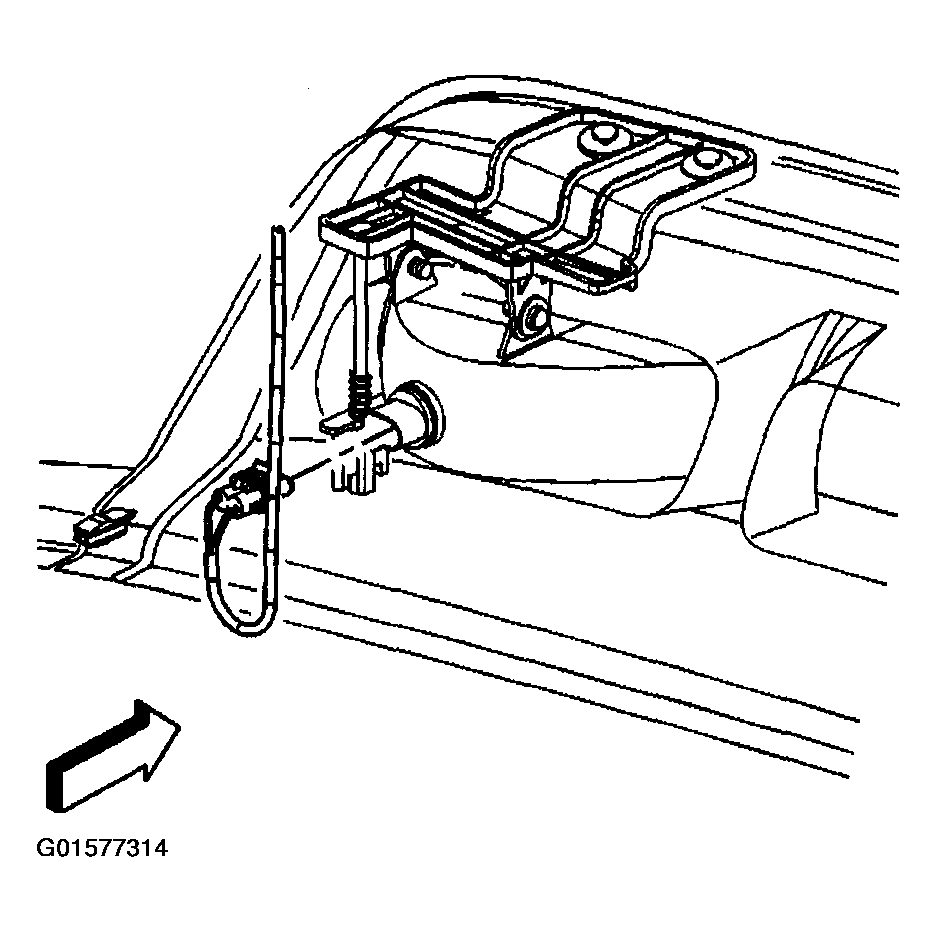

    Fig 1: Connecting Front Fog Lamp Electrical Connector (Old Style)
    G01577314Courtesy of GENERAL MOTORS CORP.
