Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connectors.
    Fig 1: Connecting Headlamp Switch Electrical Connectors
    G01577254Courtesy of GENERAL MOTORS CORP.
  2. Install the headlamp switch by snapping the headlamps switch into place.
  3. Install the bezel to the instrument panel. Refer to INSTRUMENT PANEL CLUSTER (IPC) REPLACEMENT .

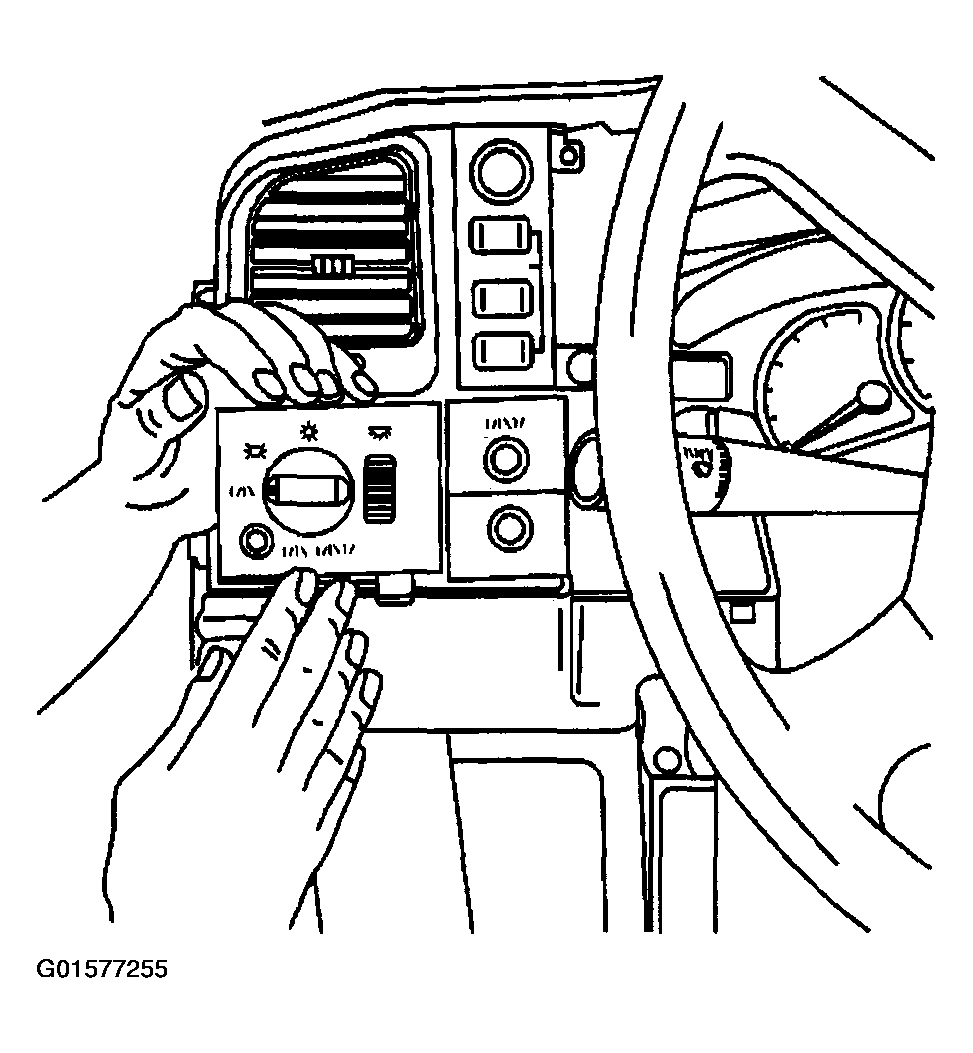

    Fig 2: Installing Headlamp Switch
    G01577255Courtesy of GENERAL MOTORS CORP.
