Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install 4 new pushnuts (1).

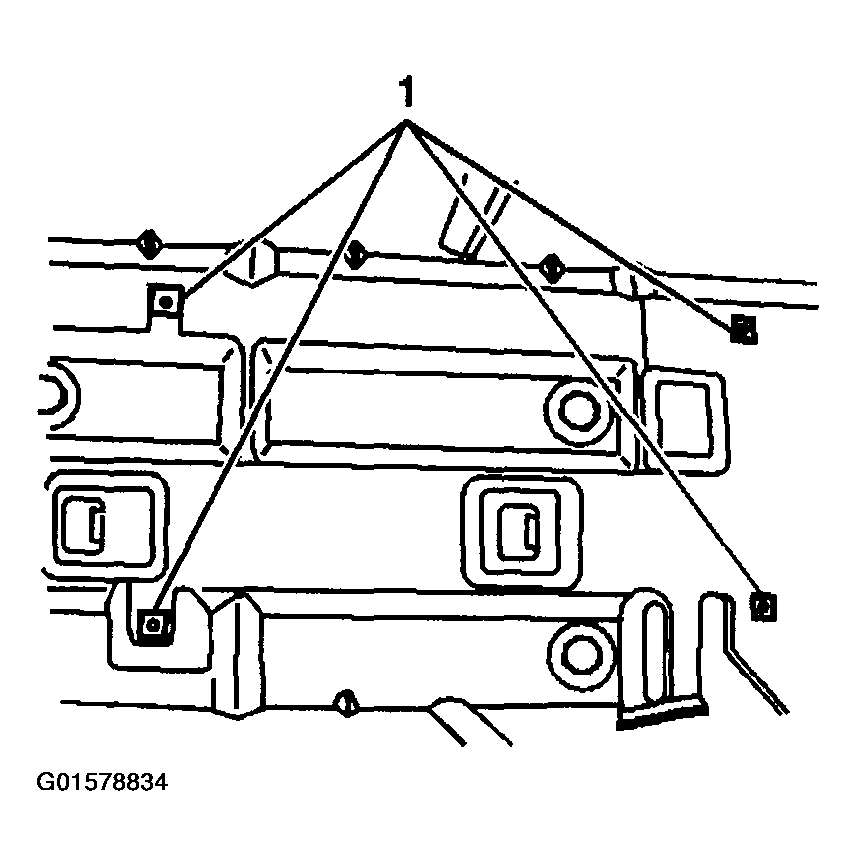

Fig 1: Installing Pushnuts
Courtesy of GENERAL MOTORS CORP.
Place the amplifier on the console bracket.
Connect the wire connector to the amplifier.
NOTE: Refer to FASTENER NOTICE .
Install the 4 retaining screws.
Tighten

Tighten the 4 retaining screws to 3.4 N.m (30 lb in).

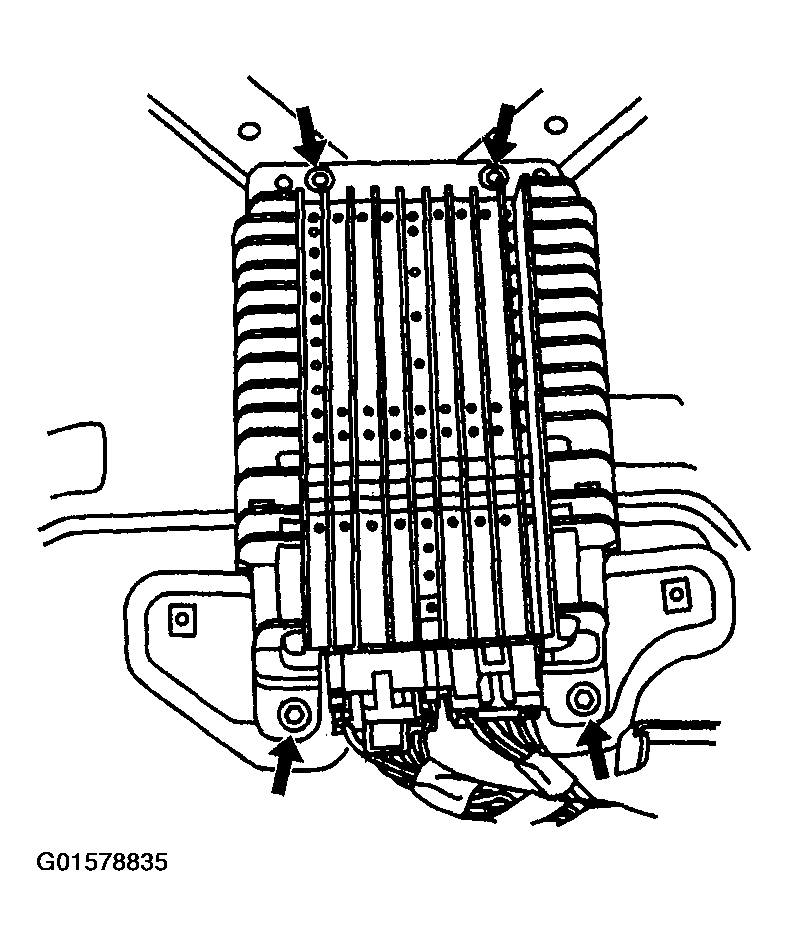

Fig 2: Installing Amplifier Retaining Screws
Courtesy of GENERAL MOTORS CORP.
Install the storage bin bracket to the console bracket.
Install the 4 bracket screws.
Tighten

Tighten the 4 screws to 2 N.m (18 lb in).
Install the console structure to the bin bracket.
Install the 4 retaining screws.
Tighten

Tighten the 4 screws to 2 N.m (18 lb in).

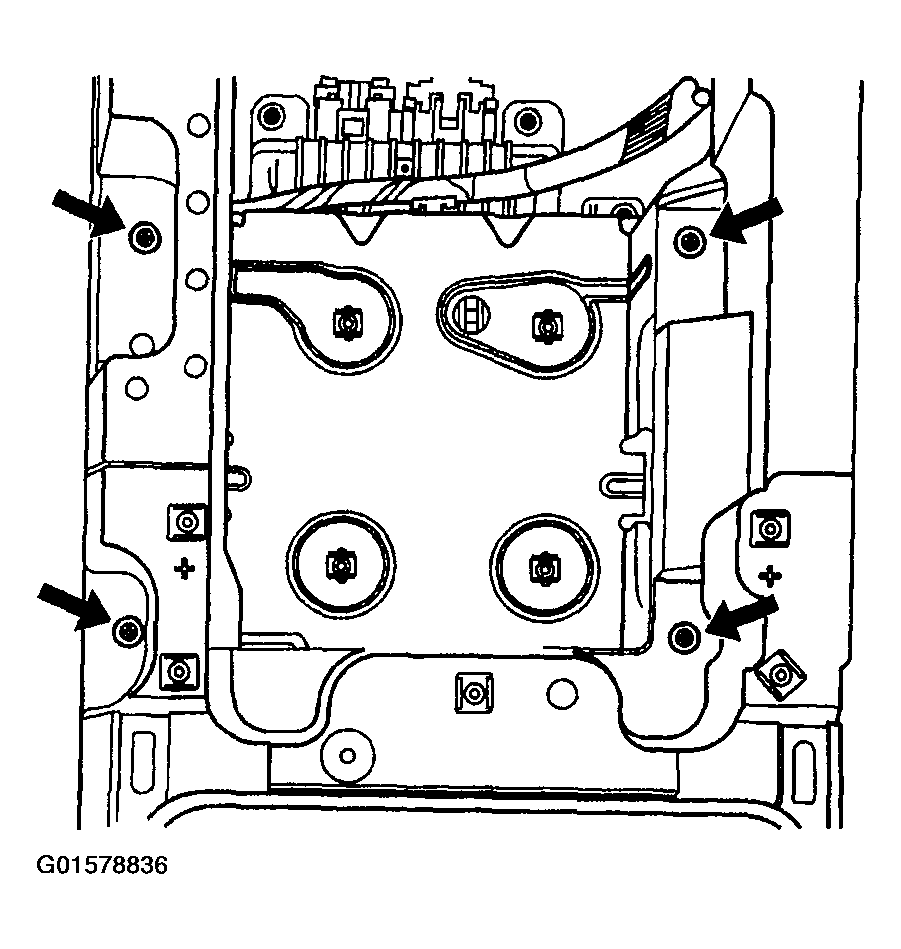

Fig 3: Installing Storage Bin Bracket Screws
Courtesy of GENERAL MOTORS CORP.
Install the console side panels.
Install the retaining screws.
Tighten

Tighten the retaining screws to 2 N.m (18 lb in).
Install the console bin. Refer to CONSOLE STORAGE BIN REPLACEMENT (EXPECT PRO) or CONSOLE STORAGE BIN REPLACEMENT (PRO) .
Install the console in the vehicle. Refer to CONSOLE REPLACEMENT (EXCEPT PRO) or CONSOLE REPLACEMENT (PRO) .

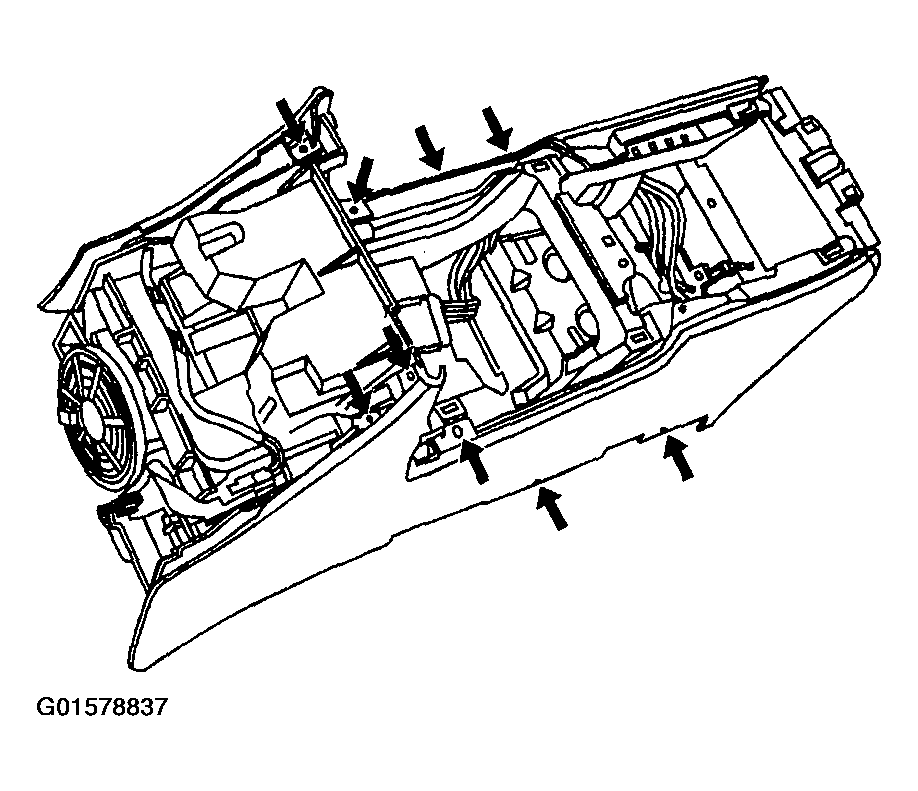

Fig 4: Installing
Courtesy of GENERAL MOTORS CORP.
Install the floor console bezels. Refer to BEZEL REPLACEMENT-FLOOR CONSOLE (NON-LUXURY UPPER) or BEZEL REPLACEMENT-FLOOR CONSOLE (LUXURY UPPER) or BEZEL REPLACEMENT-FLOOR CONSOLE (NON-LUX LOWER) .
Install both front seats in the vehicle. Refer to SEAT REPLACEMENT-FRONT BUCKET .
Perform the audio amplifier set up procedure. Refer to Audio Amplifier Setup .
