Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

IMPORTANT: Components of the DVD player cannot be serviced separately. Replace as an assembly.

Move the screen to the open position.
Remove the rear screw cover using a flat bladed tool.
Remove the four retaining bolts (2).
Insert the J 38778 between the headliner and the DVD player assembly.
With 1 hand holding the DVD player assembly, pry the retainer from the bracket.

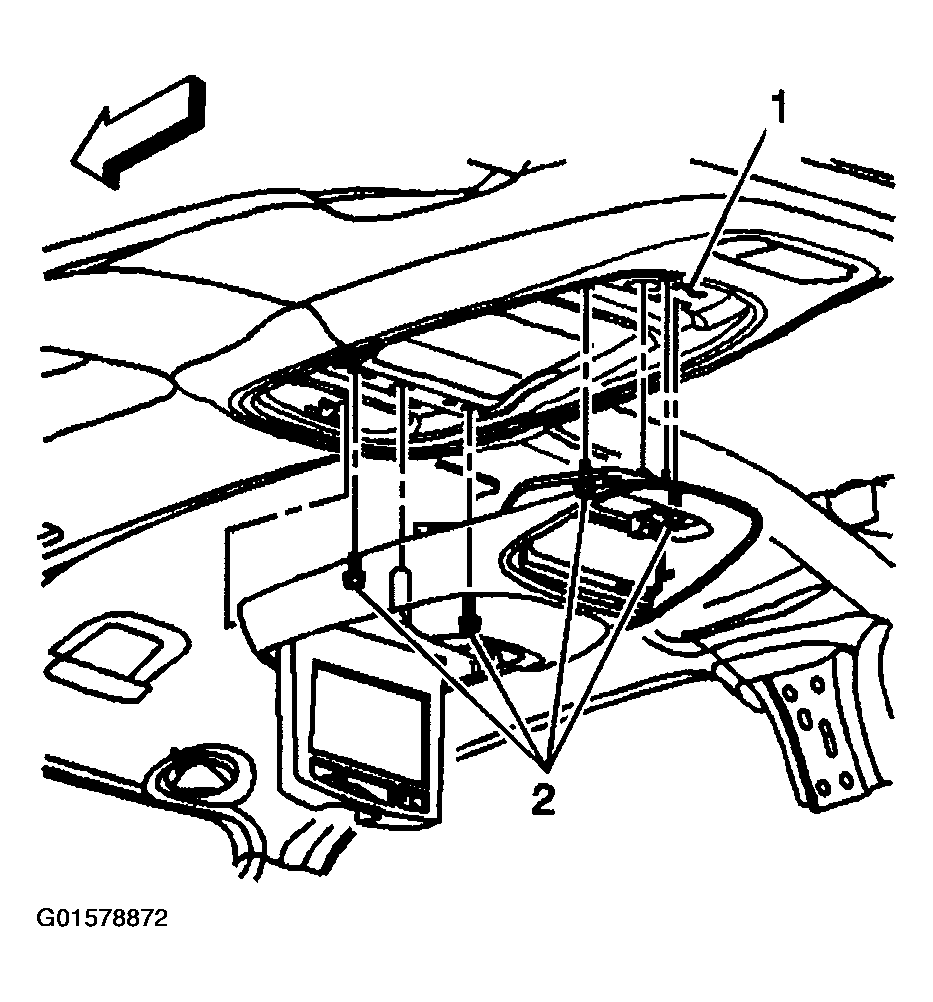

Fig 1: Removing Retaining Bolts
Courtesy of GENERAL MOTORS CORP.
Allow the DVD player assembly to come to rest on the hook.

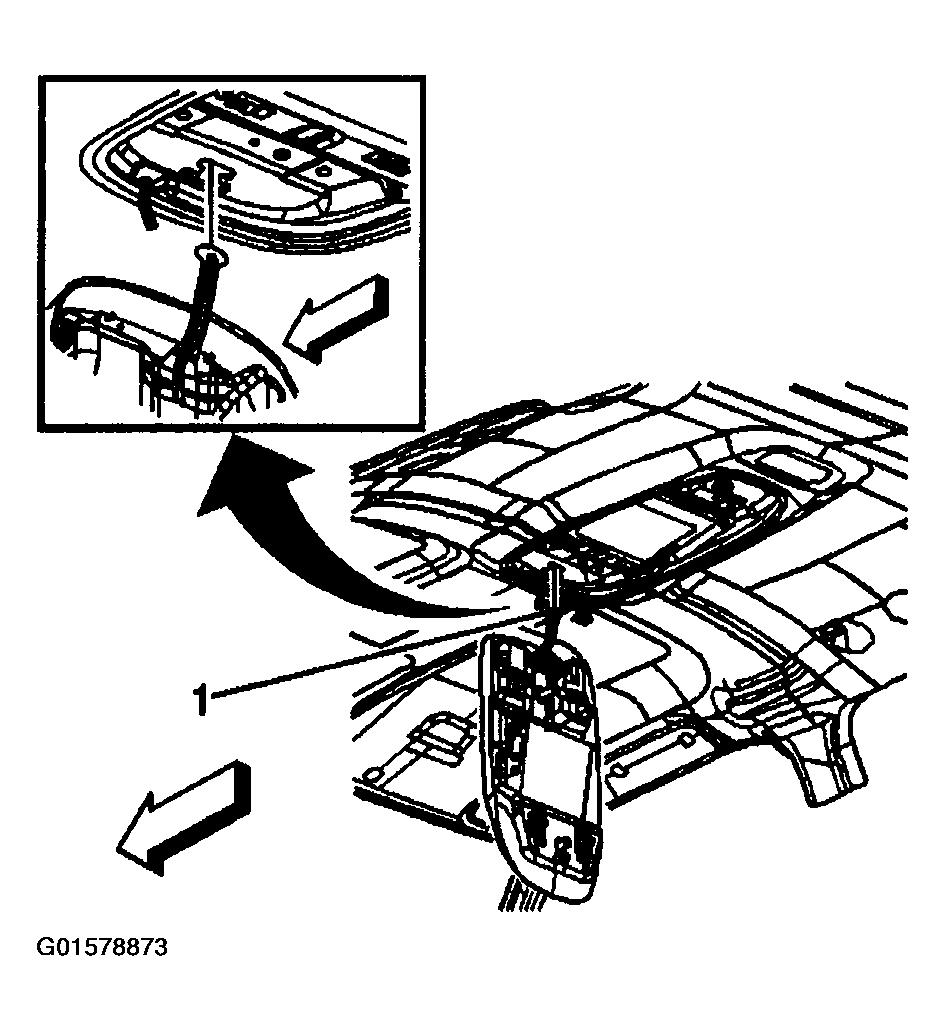

Fig 2: Allowing DVD Player Assembly To Come To Rest On Hook
Courtesy of GENERAL MOTORS CORP.

IMPORTANT: Observe the routing of the wiring harness (2).
Disconnect the wire connector (1).
Slightly lift up the DVD player assembly so that the hook can be removed from its resting position.
Remove the DVD player from the vehicle.

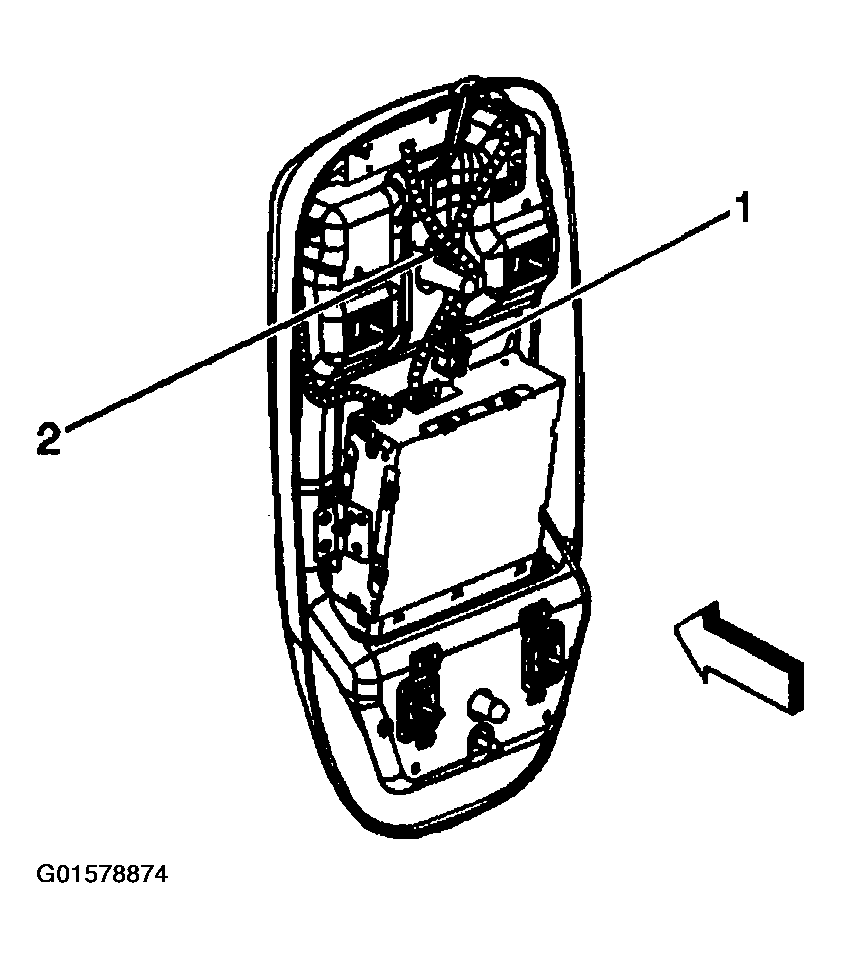

Fig 3: Disconnecting Wire Connector
Courtesy of GENERAL MOTORS CORP.
