Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. From outside the vehicle, tie the wire to the new antenna cable and base assembly.
  2. From inside the vehicle, pull on the long wire until the cable can be connected and grommet seated.
  3. Install the cable grommet to the body.
  4. Remove the wire and connect the antenna cable to the cable extension.
    NOTE: Refer to FASTENER NOTICE .
  5. Install the 3 bolts.

    Tighten

    Tighten the bolts to 5 N.m (44 lb in).

  6. Install the auxiliary battery, if equipped. Refer to BATTERY REPLACEMENT-AUXILIARY .
    NOTE: Use tape on the tool surface so that you do not damage the paint on the antenna mast.
  7. Install the antenna mast.

    Tighten

    Tighten the mast to 6 N.m (53 lb in).

  8. Install the outboard section of the cowl vent grille panel.
  9. Install the I/P trim panel. Refer to TRIM PANEL REPLACEMENT-INSTRUMENT PANEL (I/P) UPPER .

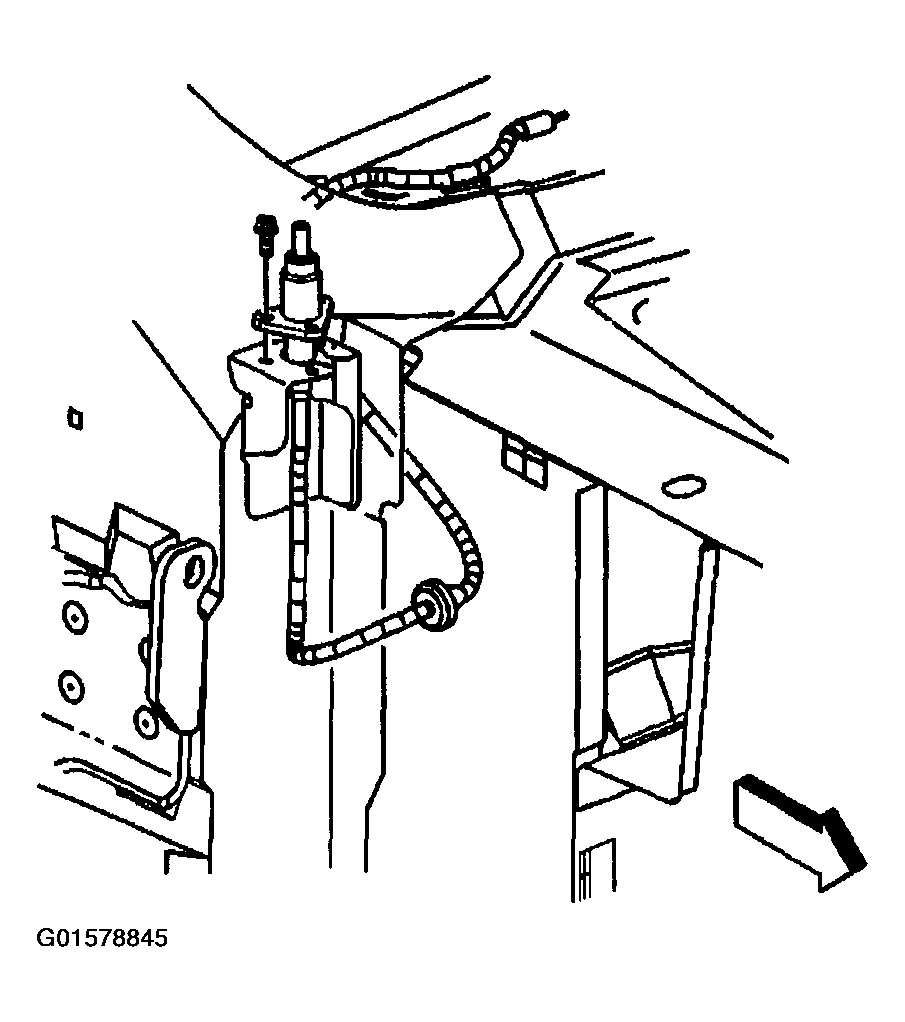

    Fig 1: Fixed Antenna
    G01578845Courtesy of GENERAL MOTORS CORP.
