Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the electrical connector.
  2. Install the speaker.

    Snap the speaker into place and ensure that the speaker is fully seated.

  3. Install the trim panel. Refer to TRIM PANEL REPLACEMENT-SIDE FRONT DOOR .
  4. Inspect the component's operation.

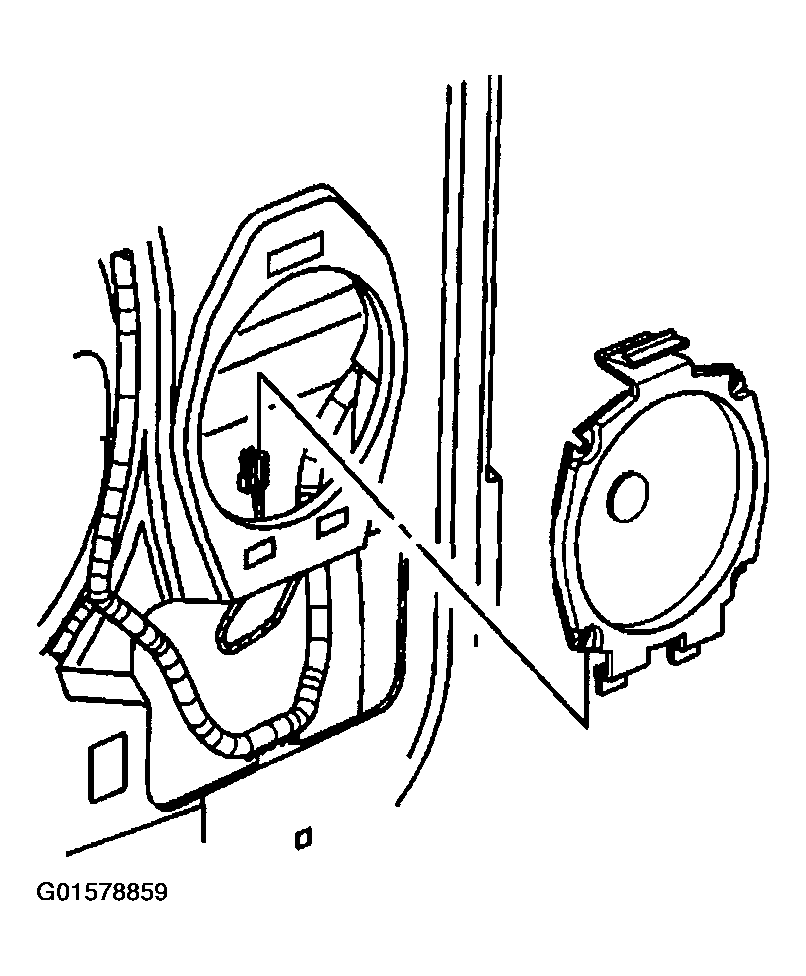

    Fig 1: Front Door Speaker
    G01578859Courtesy of GENERAL MOTORS CORP.
