Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the hood hinge to the hood. Refer to Hood Hinge Replacement .
With an assistant, install the hood (1) to the vehicle.
NOTE: Refer to FASTENER NOTICE .
Install the pivot bolt (3).
Tighten

Tighten the pivot bolt to 25 N.m (18 lb ft).
Lower the hood.

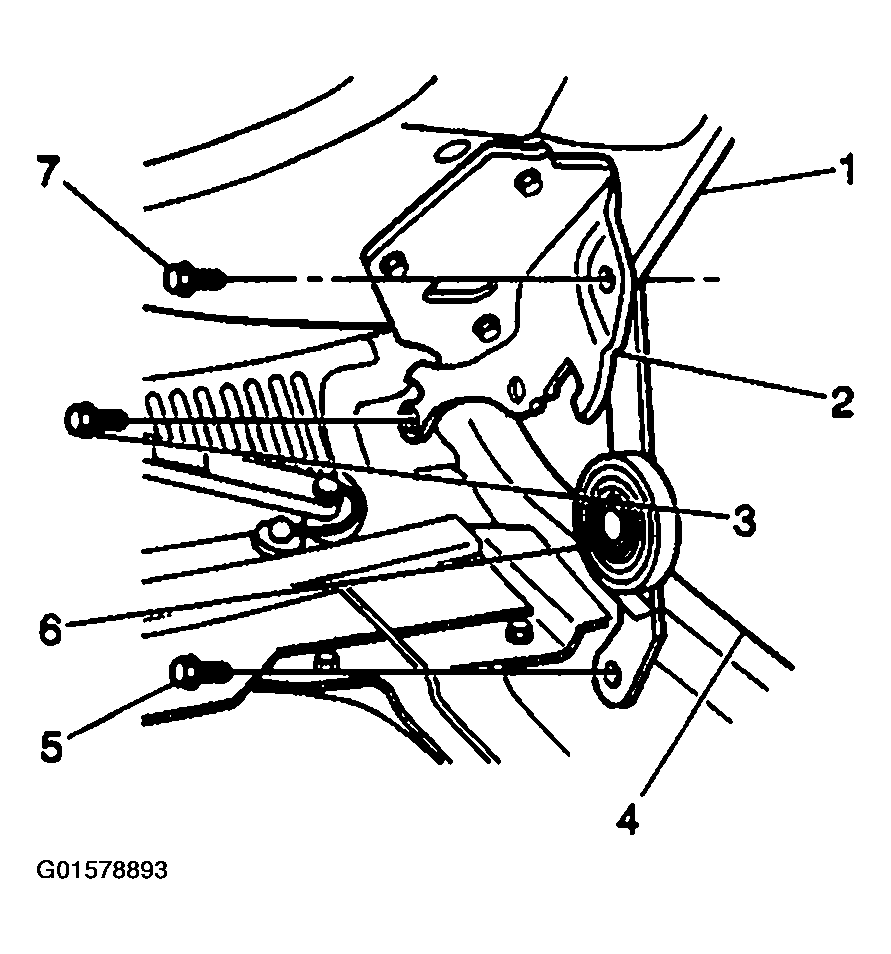

Fig 1: Hood Hinge, Hood Link Assembly & Components
Courtesy of GENERAL MOTORS CORP.
Install the outboard section of the cowl vent grille panel.
Raise the hood.

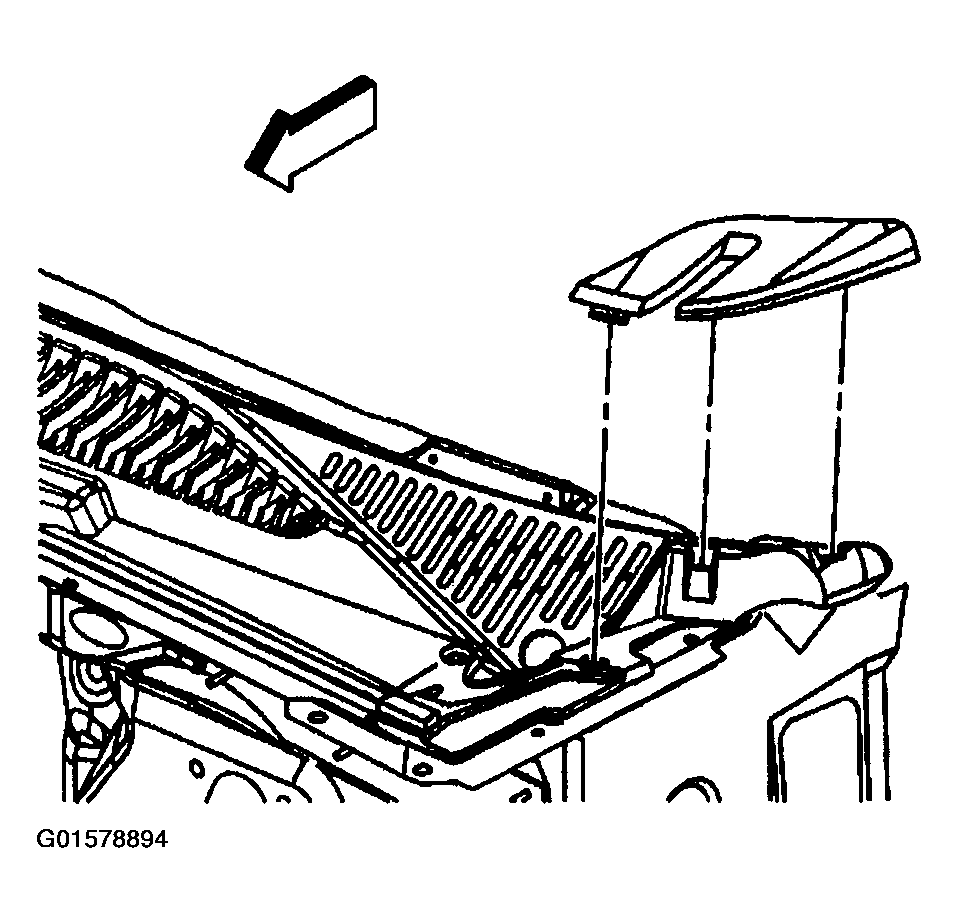

Fig 2: Installing Outboard Sections Of Cowl Vent Grille Panel
Courtesy of GENERAL MOTORS CORP.
Install the bolt (7) holding the hinge to the link assembly.
Tighten

Tighten the hinge to link assembly bolt (5) to 25 N.m (18 lb ft).

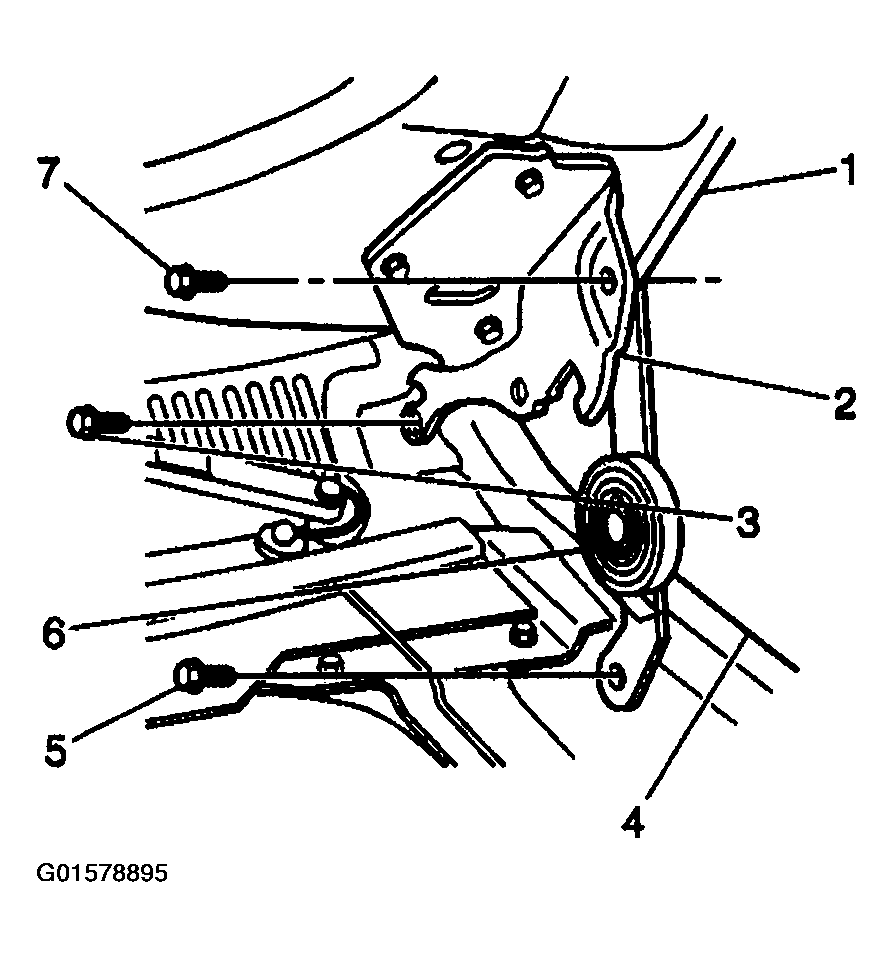

Fig 3: Hood Hinge, Hood Link Assembly & Components
Courtesy of GENERAL MOTORS CORP.
Install the hood ground strap and nut. Clip the hangers and the lamp in place.
Tighten

Tighten the ground strap nut to 9 N.m (80 lb in).
Lower the hood.

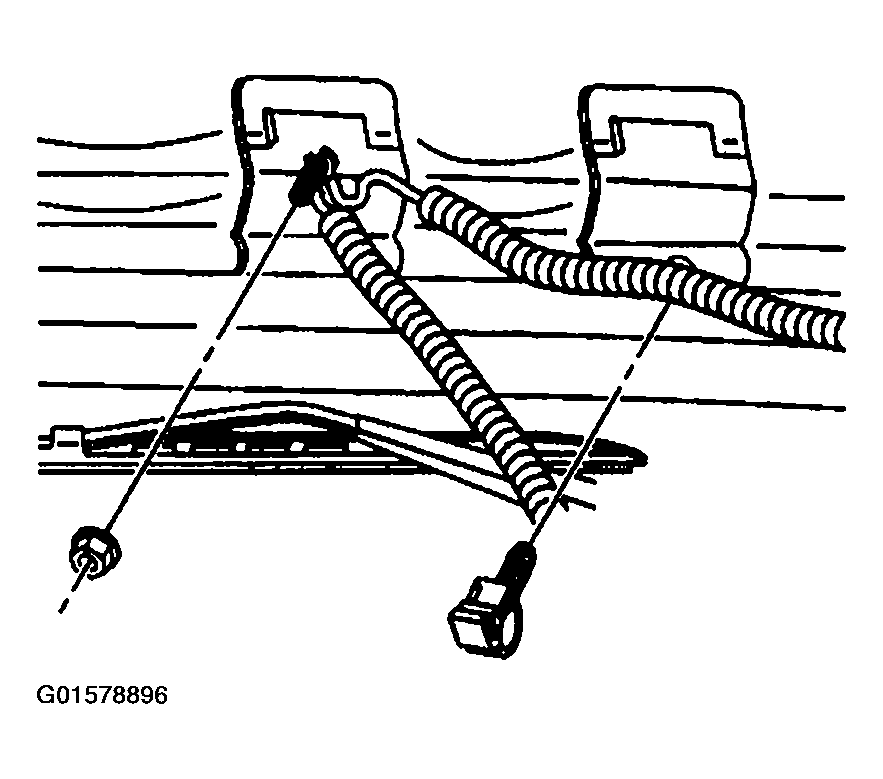

Fig 4: Installing Hood Ground Strap & Nut
Courtesy of GENERAL MOTORS CORP.
