Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the lock assembly to the vehicle.
Install the rivets retaining the lock assembly to the tool storage compartment.
Lower the rear seat.

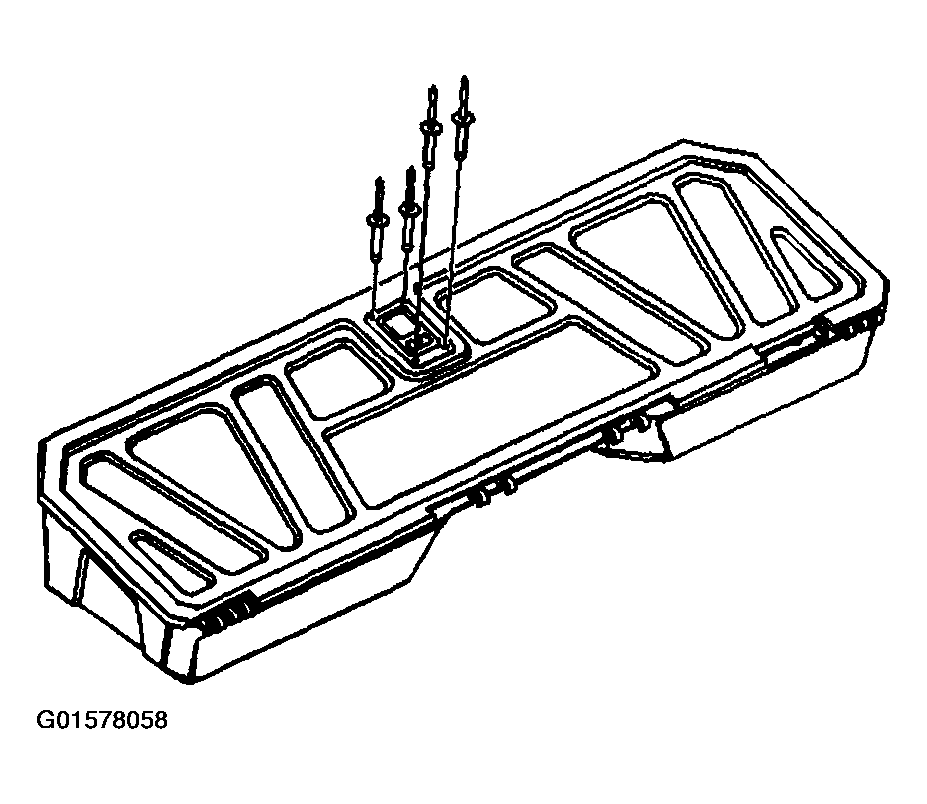

Fig 1: Tool Storage Compartment Lock (PRO)
Courtesy of GENERAL MOTORS CORP.
