Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Install the tool storage compartment to the vehicle.
Install the nuts that retain the tool storage compartment to the vehicle.
NOTE: Refer to FASTENER NOTICE .
Install the nuts that retain the tool storage compartment to the mounting brackets.
Tighten

Tighten the nuts to 10 N.m (88 lb in).
Lower the rear sheet.

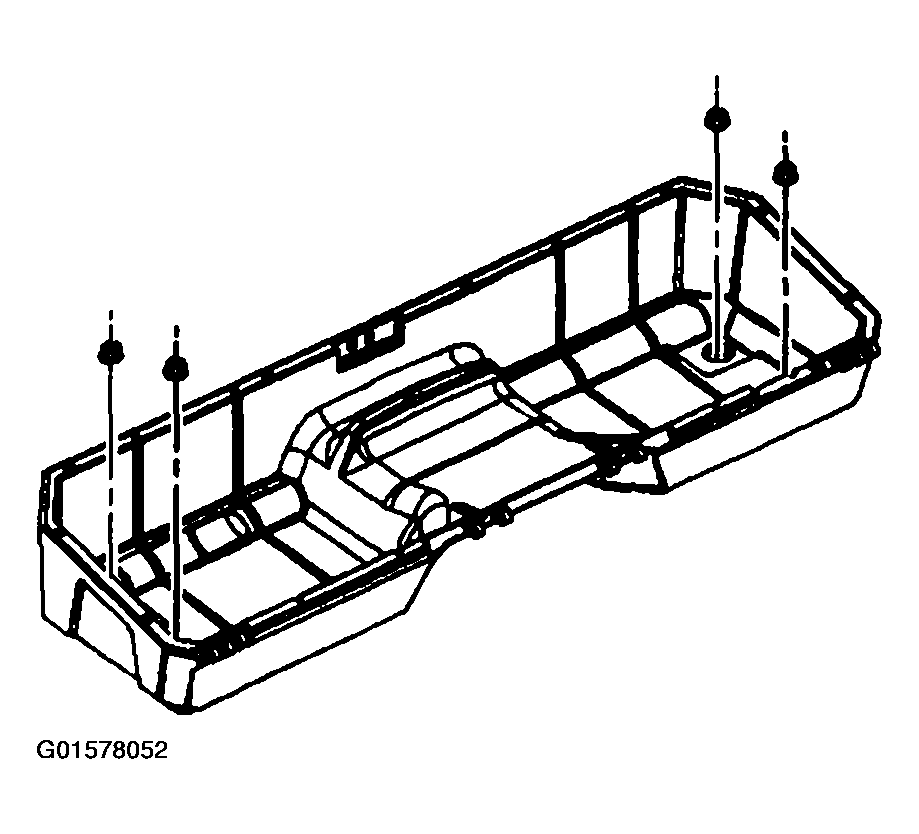

Fig 1: Tool Storage Compartment (PRO)
Courtesy of GENERAL MOTORS CORP.
