Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the seat belt through the trim panel.
  2. Install the quarter panel.
    NOTE: Refer to FASTENER NOTICE .
  3. Install the lower seat belt anchor bolt.

    Tighten

    Tighten the bolt to 53 N.m (39 lb in).

  4. Install the quarter panel trim screws.

    Tighten

    Tighten the quarter panel trim screws to 2 N.m (18 lb in).

  5. Install the rear window lower molding. Refer to Molding Replacement-Rear Window Lower   .
  6. Install the coat hook, if removed. Refer to Coat Hook Replacement   .

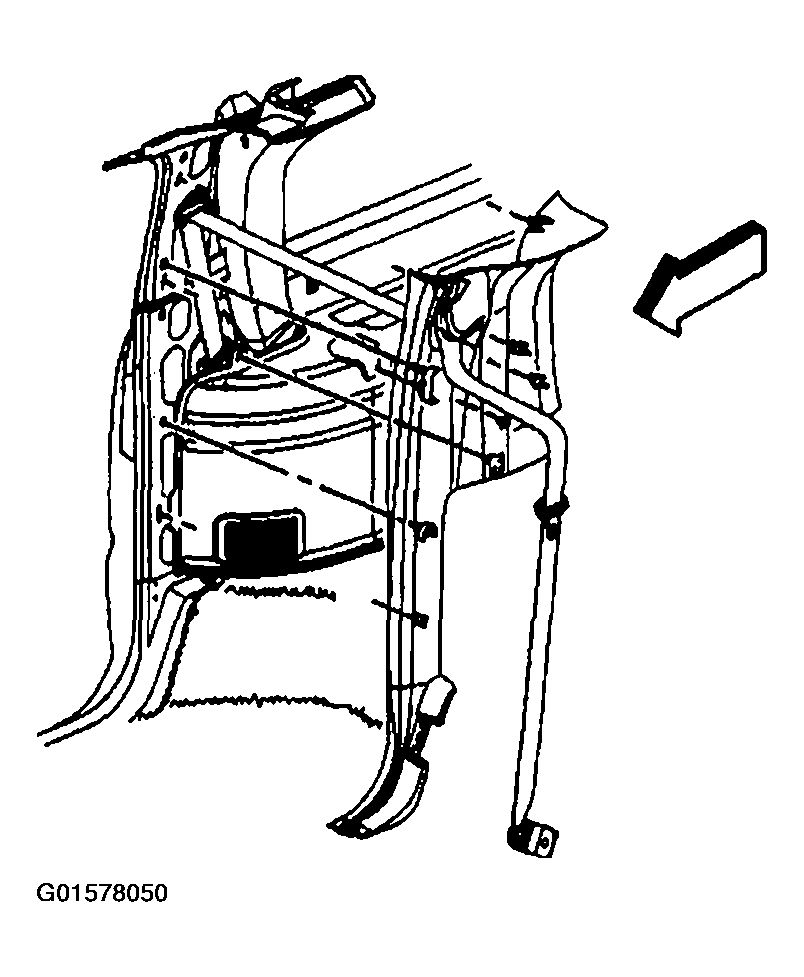

    Fig 1: Rear Quarter Trim Panel (Crew Cab)
    G01578050Courtesy of GENERAL MOTORS CORP.
