Removal Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear seat, if necessary. Refer to SEAT REPLACEMENT-REAR (EXTENDED CAB W/4TH DOOR) or SEAT REPLACEMENT-REAR (EXTENDED CAB) or SEAT REPLACEMENT-REAR (60/40 SPLIT) .
  2. Remove the rear window molding. Refer to Molding Replacement-Rear Window Lower   .
  3. Remove the armrest screw.

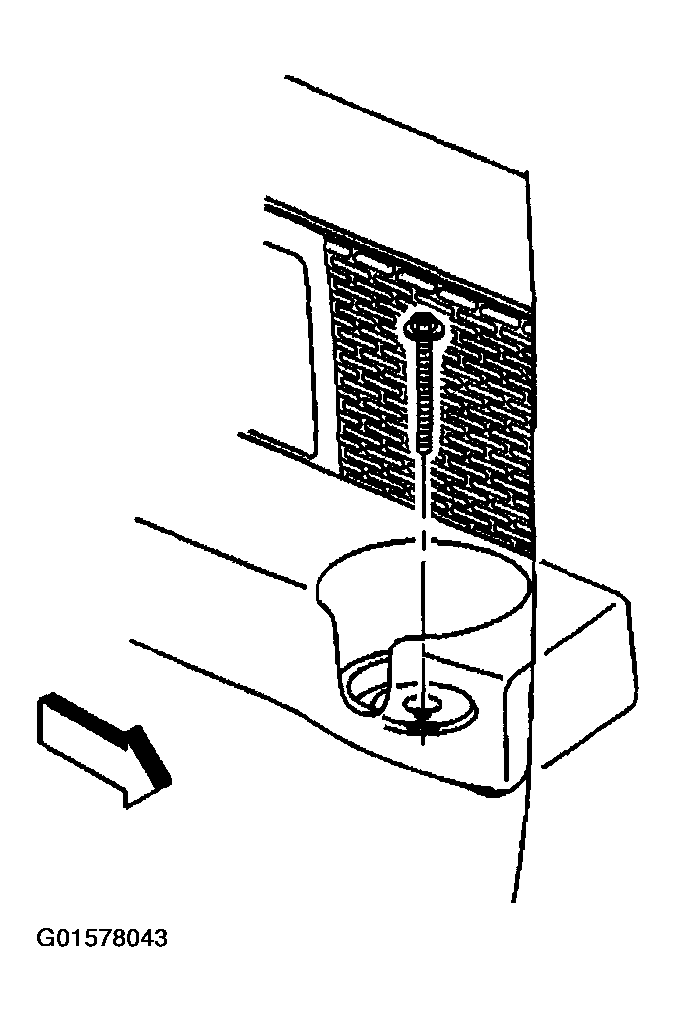

    4. Fig 1: Removing Armrest Screw
    G01578043Courtesy of GENERAL MOTORS CORP.
  4. Remove the armrest.
  5. Remove the sill trim plates. Refer to Door Sill Plate Replacement-Front   .

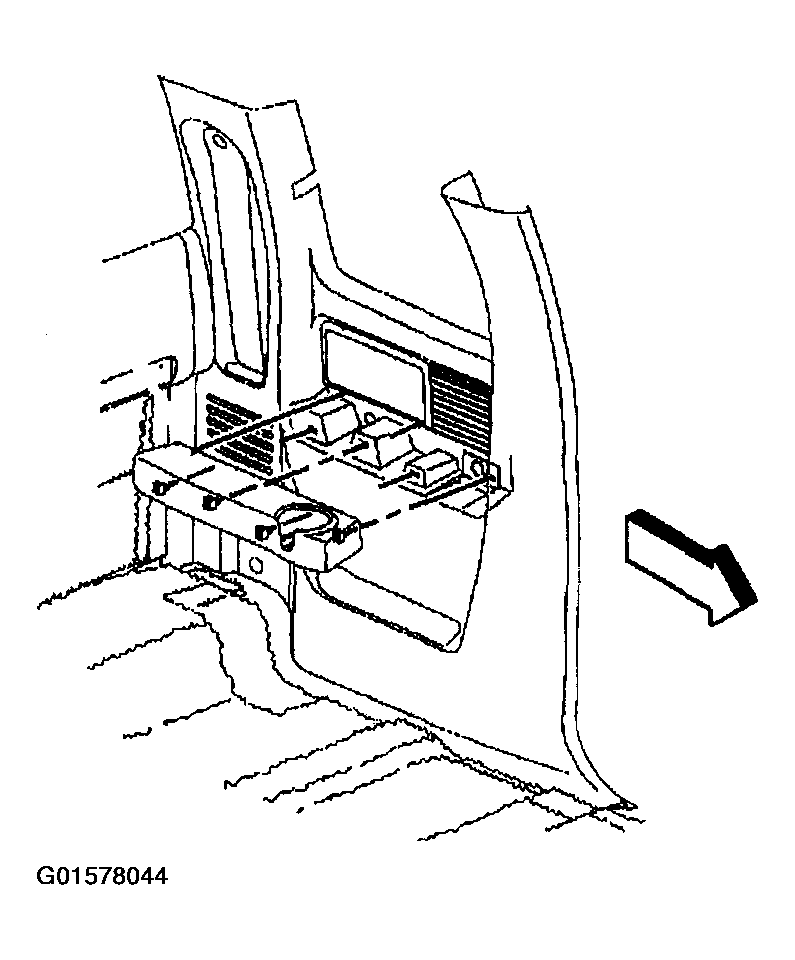

    6. Fig 2: Removing Armrest
    G01578044Courtesy of GENERAL MOTORS CORP.
  6. Remove the quarter panel trim screws.
  7. Pull the panel out, and remove the seat belt assembly. Refer to SEAT BELT RETRACTOR REPLACEMENT-REAR (EXTENDED CAB) or SEAT BELT RETRACTOR REPLACEMENT-REAR (CREW CAB) .
  8. Remove the quarter panel from the vehicle.

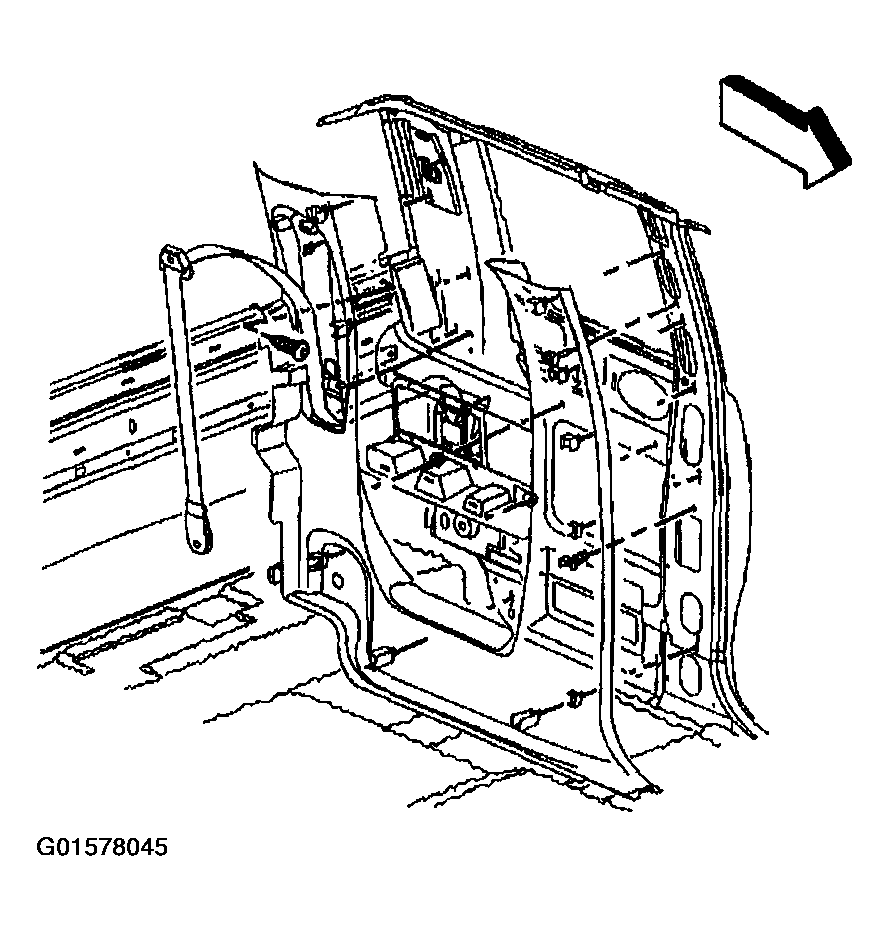

    Fig 3: Removing Quarter Panel Trim Screws
    G01578045Courtesy of GENERAL MOTORS CORP.
