Installation Procedure

WARNING: This page is about a different car, the 2003 GMC Sierra, 2003 GMC Cab & Chassis Sierra, 2003 Chevrolet Silverado, and 2003 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the quarter panel.
    NOTE: Refer to FASTENER NOTICE .
  2. Install the quarter panel trim screws.

    Tighten

    Tighten the quarter panel trim screws to 2 N.m (18 lb in).

  3. Install the rear screw into the sill trim plate.
  4. Install the rear window lower molding. Refer to Molding Replacement-Rear Window Lower   .
  5. Install the jack and tool stowage.
  6. Install the coat hook. Refer to Coat Hook Replacement   .

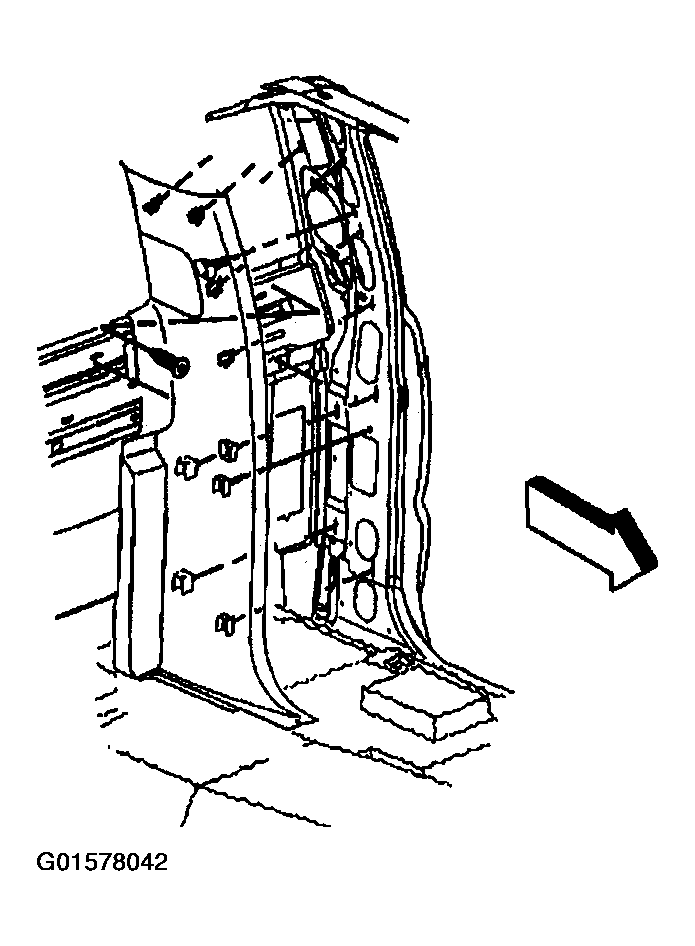

    Fig 1: Rear Quarter Trim Panel (Regular Cab)
    G01578042Courtesy of GENERAL MOTORS CORP.
