Installation Procedure

WARNING: This page is about a different car, the 2003 Buick Regal and 2003 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the hood to the vehicle, with an assistant.

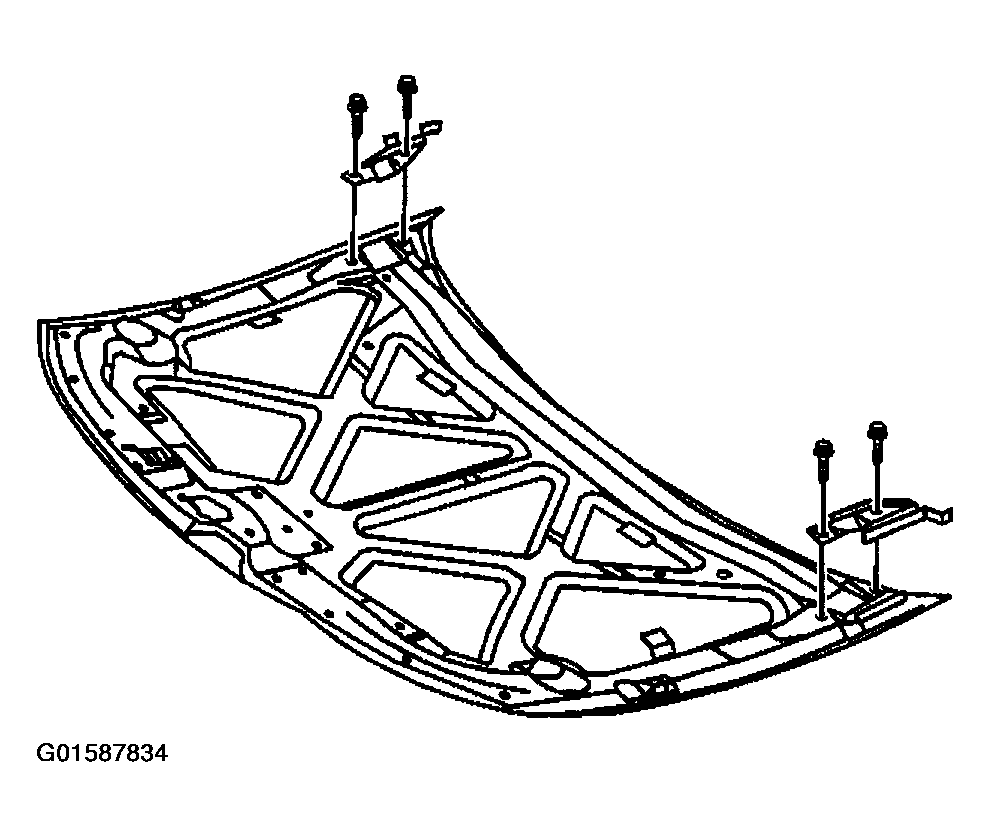

    2. Fig 1: Installing Hood Hinge To Hood
    G01587834Courtesy of GENERAL MOTORS CORP.
  2. Align the hood hinges to the alignment marks on the hood.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  3. Install the hood hinge to hood bolts, with an assistant.

    Tighten

    Tighten the bolts to 27 N.m (20 lb ft).

  4. Install the assist rod to the hood. Refer to ASSIST ROD REPLACEMENT - HOOD  .
  5. Adjust the hood, as required. Refer to HOOD ADJUSTMENT  .
