Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
    Fig 1: View Of Negative Battery Cable To Transmission Bracket
    GM1228615Courtesy of GENERAL MOTORS CORP.
  1. Install the negative battery cable into the retainers.
  2. Connect the negative battery cable to the transmission bracket (3).

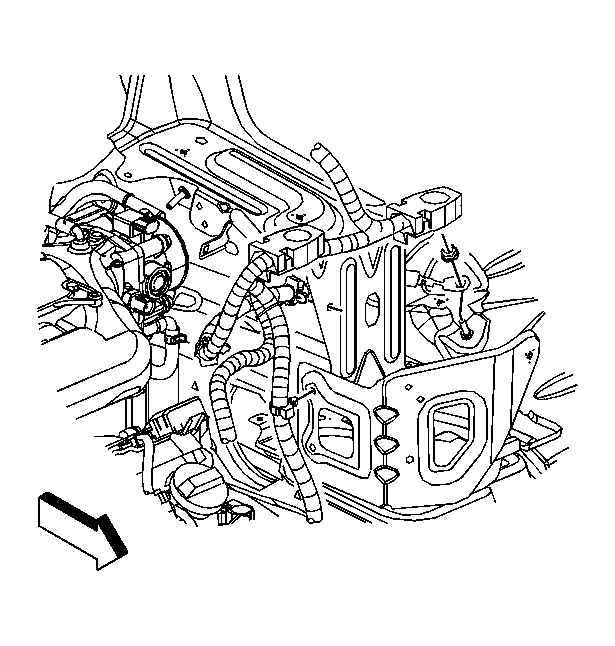

    3. Fig 2: Negative Battery Cable (L66)
    GM1228616Courtesy of GENERAL MOTORS CORP.
  3. Install the negative battery cable to the right frame rail.
  4. Install the battery tray. Refer to Battery Tray Replacement .
  5. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
