Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

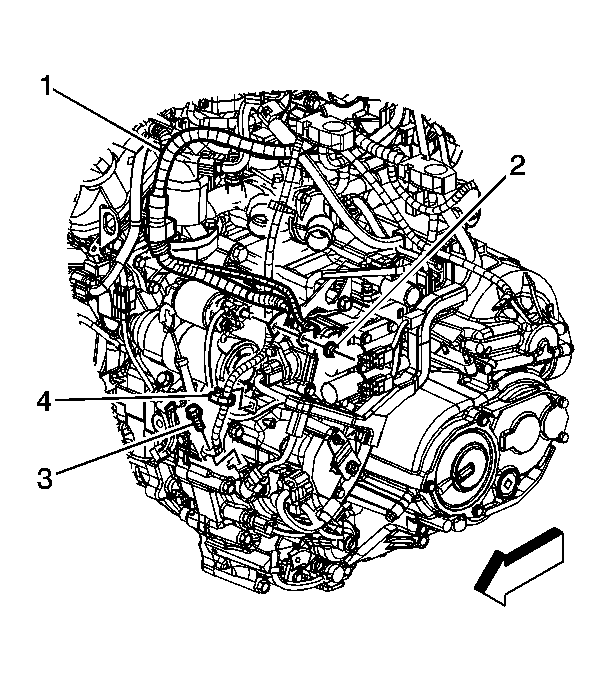

    Fig 1: View Of Negative Battery Cable To Transmission Bracket
    GM1228615Courtesy of GENERAL MOTORS CORP.
  1. Route the battery cable through the engine compartment and connect to the cable retainers.
  2. Connect the positive battery cable to the generator.
  3. Connect the positive battery cable to the starter (2)
    4. Fig 2: Underhood Electrical Wiring
    GM934966Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  4. Connect the positive battery cable to the UHJB.

    Tighten:  Tighten the positive cable to UHJB to 17 N.m (13 lb ft).

  5. Connect the positive battery cable to the battery.
  6. Connect the negative battery cable. Refer to Battery Negative Cable Disconnect/Connect Procedure .
