Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

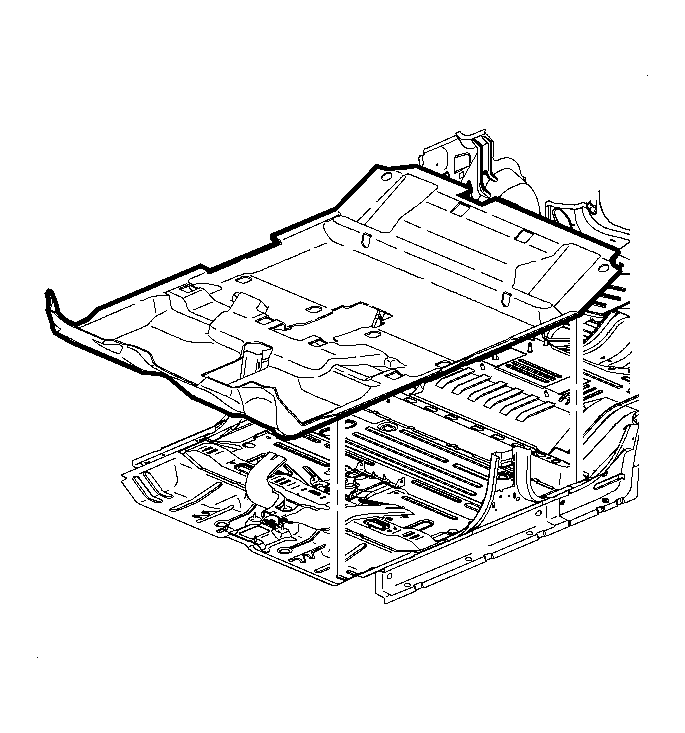

    Fig 1: View Of Carpet
    GM930880Courtesy of GENERAL MOTORS CORP.
  1. Position the carpet in the vehicle.
  2. Tuck the carpet under the center pillar assemblies.
  3. Install the center console trim panels and the center console. Refer to Console Replacement in Instrument Panel, Gages, and Console.
  4. Install the rear carpet retainer. Refer to Carpet Retainer Replacement - Rear .
  5. Install the front carpet retainer. Refer to Carpet Retainer Replacement - Front .
  6. Install the rear seats. Refer to Seat Replacement - Rear in Seats.
  7. Install the front seats. Refer to Seat Replacement - Front Bucket in Seats.
