Front Fog Lamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

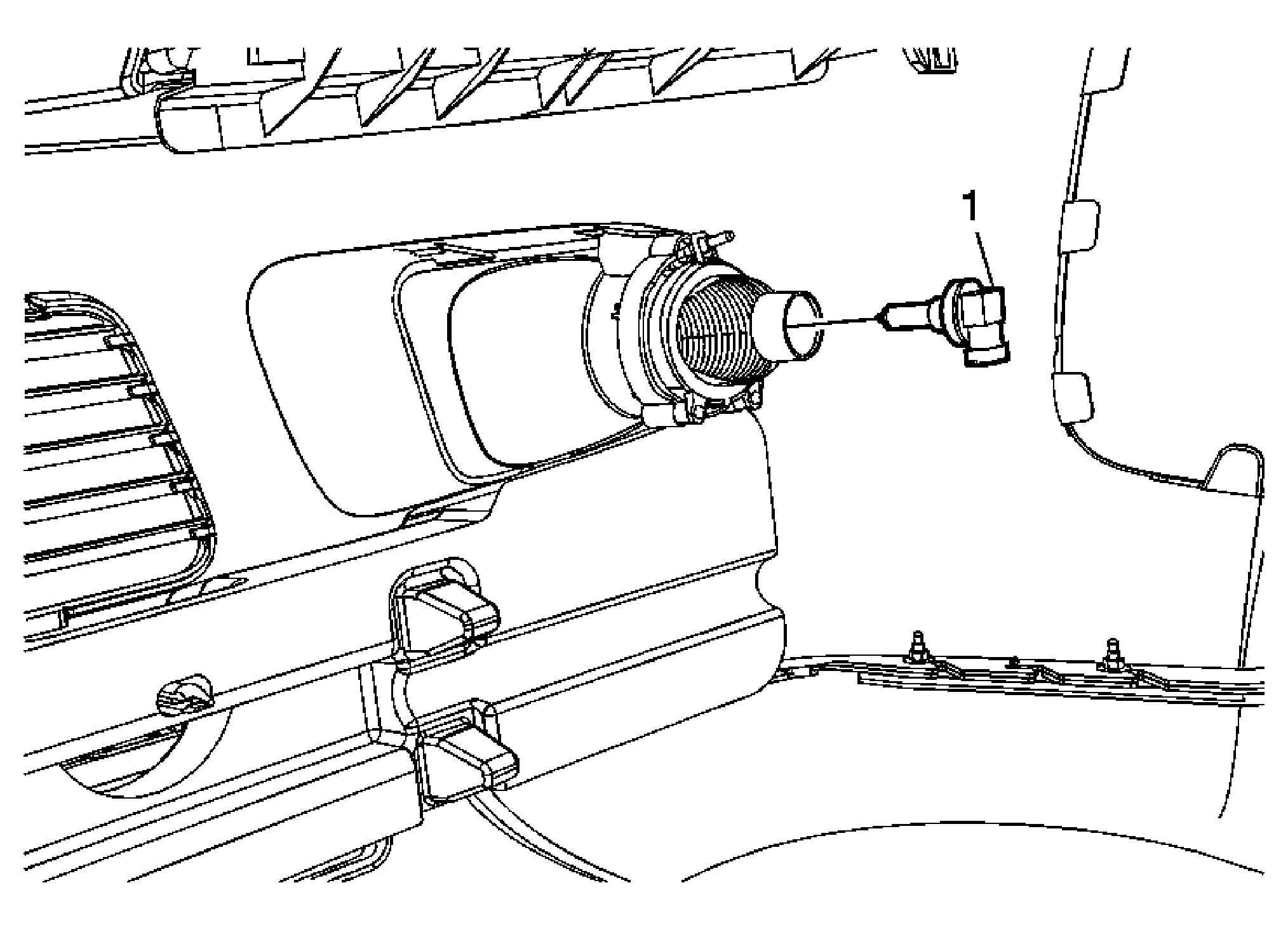

Fig 1: Fog Lamp Bulb

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
NOTE: Refer to Fastener Notice . Fastener Tightening Specifications: Refer to Fastener Tightening Specifications . Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove either the LF or RF front fender liner. Refer to Front Wheelhouse Liner Replacement . Disconnect fog lamp bulb socket electrical connector.
1	Front Fog Lamp Bulb CAUTION: Refer to Halogen Bulb Caution . Tip: Turn the bulb socket counter clockwise a quarter turn and remove from the lamp assembly.

Callout

Component Name

NOTE: Refer to Fastener Notice .

Fastener Tightening Specifications: Refer to Fastener Tightening Specifications .

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove either the LF or RF front fender liner. Refer to Front Wheelhouse Liner Replacement .
Disconnect fog lamp bulb socket electrical connector.

Front Fog Lamp Bulb

CAUTION: Refer to Halogen Bulb Caution .

Tip: Turn the bulb socket counter clockwise a quarter turn and remove from the lamp assembly.
