Headlamp Bulb Replacement

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

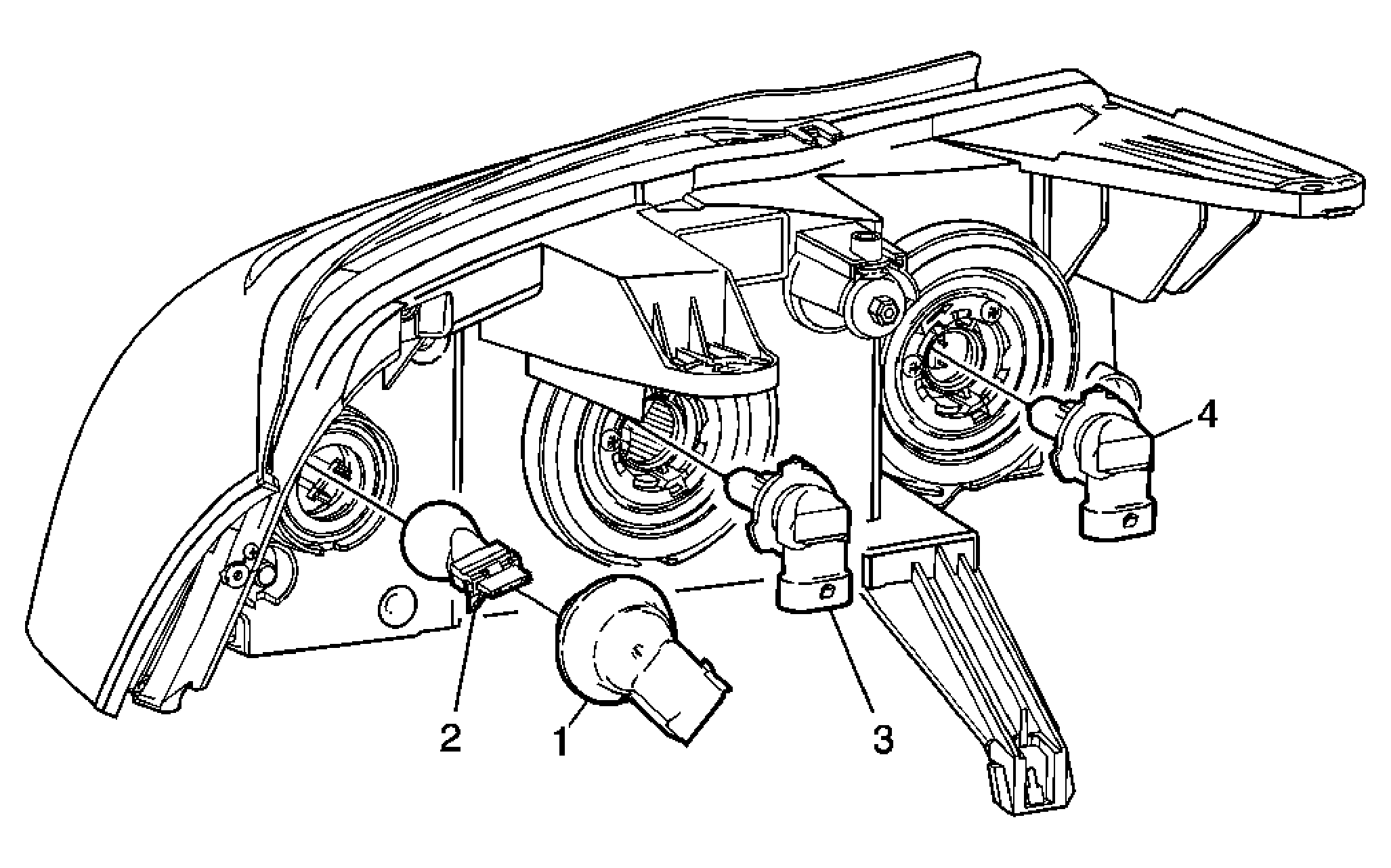

Fig 1: Headlamp Bulbs And Components

GM1644785

Courtesy of GENERAL MOTORS CORP.

Headlamp Bulb Replacement

Callout	Component Name
NOTE: Refer to Fastener Notice . Preliminary Procedures Open the hood. Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Redline) or Front Bumper Fascia Replacement (Standard) . Remove the front headlamps. Refer to Headlamp Assembly or Headlamp Bulb and/or Cornering, Sidemarker, Park, Turn Signal Bulb Replacement .
1	Front Park and Turn Signal Lamp Socket Tip: Turn Lamp socket counterclockwise in order to remove from the headlamp assembly.
2	Front Park and Turn Signal Lamp Bulb Tip: Pull the park and turn signal lamp bulb straight from the bulb socket.
3	Headlamp Bulb (Lo Beam) CAUTION: Refer to Halogen Bulb Caution . Tip: Disconnect the electrical connector from the headlamp bulb socket and turn bulb socket a quarter turn counterclockwise in order to remove.
4	Headlamp Bulb (High Beam) CAUTION: Refer to Halogen Bulb Caution . Tip: Disconnect the electrical connector from the headlamp bulb socket and turn bulb socket a quarter turn counter clockwise in order to remove.
