Tail Lamp Bulb Replacement
WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Tail Lamp Bulb Replacement

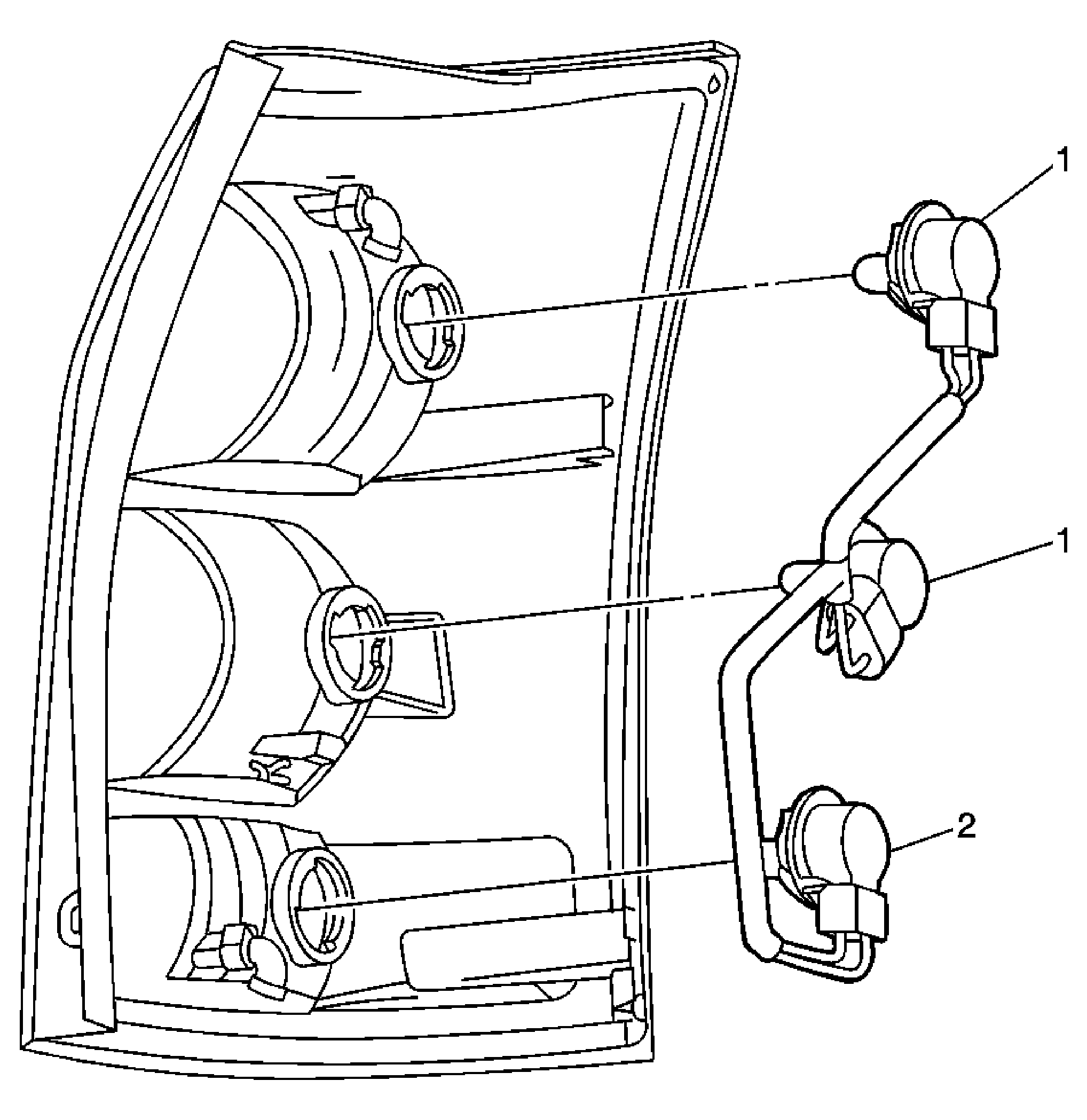

| Callout | Component Name |
|---|---|
| Preliminary Procedure: Remove either the left or right rear tail lamp assembly. Refer to Tail Lamp Replacement . |
|
| 1 | Park Turn Lamp Bulb Socket Tip: Rotate the lamp sockets counterclockwise and remove the bulbs as needed. |
| 2 | Reverse Lamp Bulb Socket Tip: Rotate the lamp socket counterclockwise and remove the bulb as needed. |
