Hybrid Controls Schematics

WARNING: This page is about a different car, the 2007 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: A/C Field Voltage
GM1824209Courtesy of GENERAL MOTORS CORP.

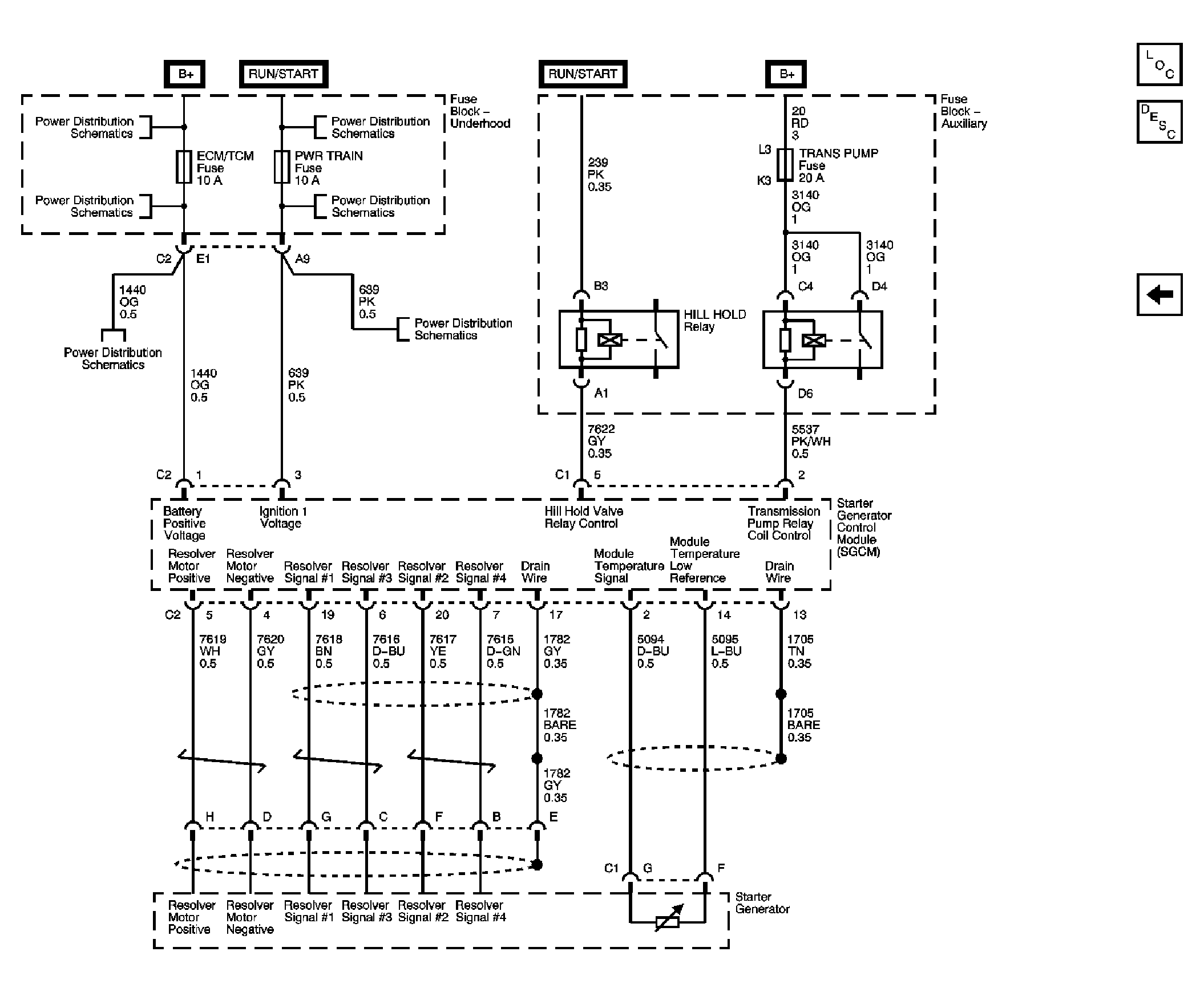

Fig 2: Motor Controls
GM1824228Courtesy of GENERAL MOTORS CORP.
