Windshield Washer Solvent Level Switch Replacement

WARNING: This page is about a different car, the 2009 Saturn Vue. However, it is still accessible from the selected car via links, so may be relevant.

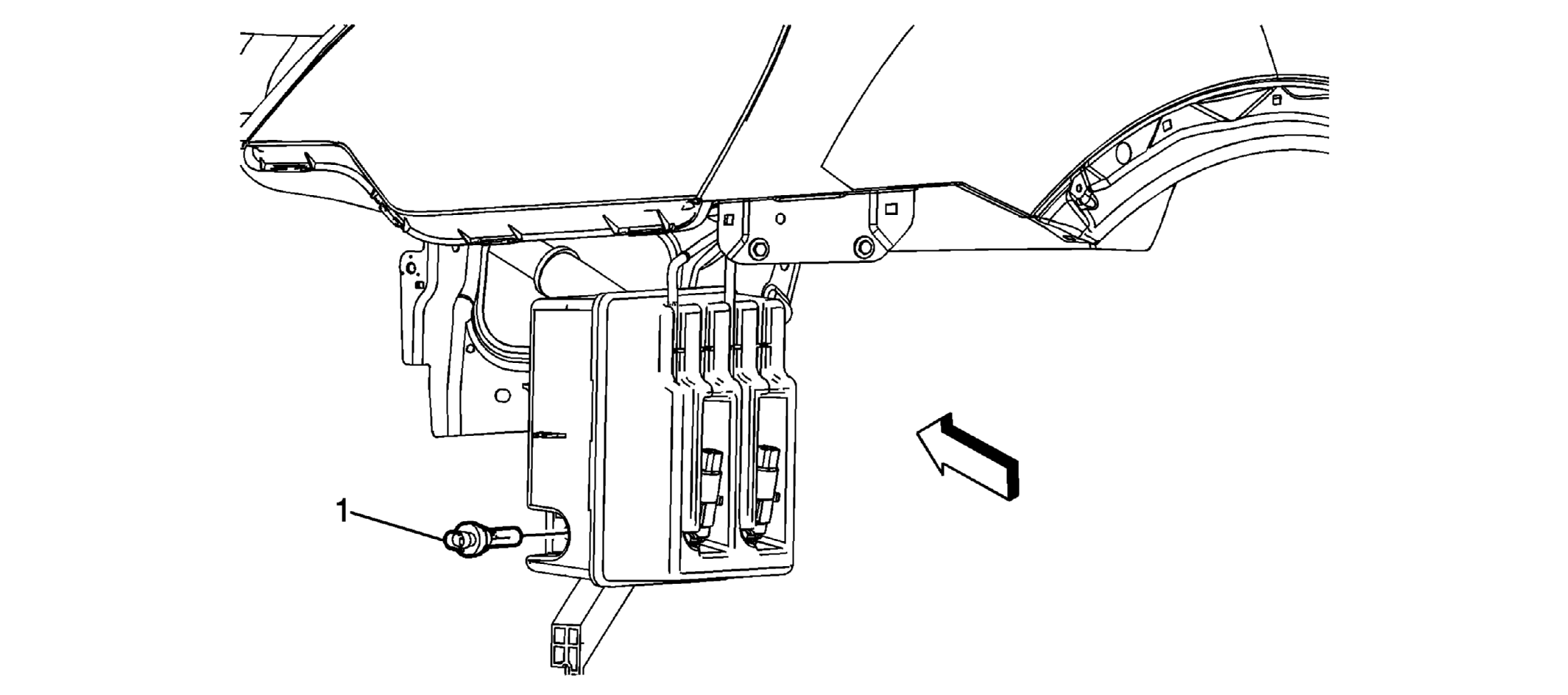

Fig 1: Windshield Washer Solvent Level Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .
1	Windshield Washer Level Sensor Switch Procedure Drain the windshield washer solvent into a suitable clean container. Disconnect the electrical connector to the level sensor switch. Using 2 flat-bladed tools, remove the level sensor switch from the windshield washer container. Discard the level sensor and grommet.

Callout

Component Name

Preliminary Procedure:
Remove the left front wheelhouse liner. Refer to Front Wheelhouse Liner Replacement .

Windshield Washer Level Sensor Switch

Procedure

Drain the windshield washer solvent into a suitable clean container.
Disconnect the electrical connector to the level sensor switch.
Using 2 flat-bladed tools, remove the level sensor switch from the windshield washer container.
Discard the level sensor and grommet.
