Removal Procedure

WARNING: This page is about a different car, the 2002 GMC Sierra, 2002 GMC Cab & Chassis Sierra, 2002 Chevrolet Silverado, and 2002 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.

Record the lock code before removal (if equipped).
Remove the instrument panel trim bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER .
Push down on the retainers in order to release the radio retainers.

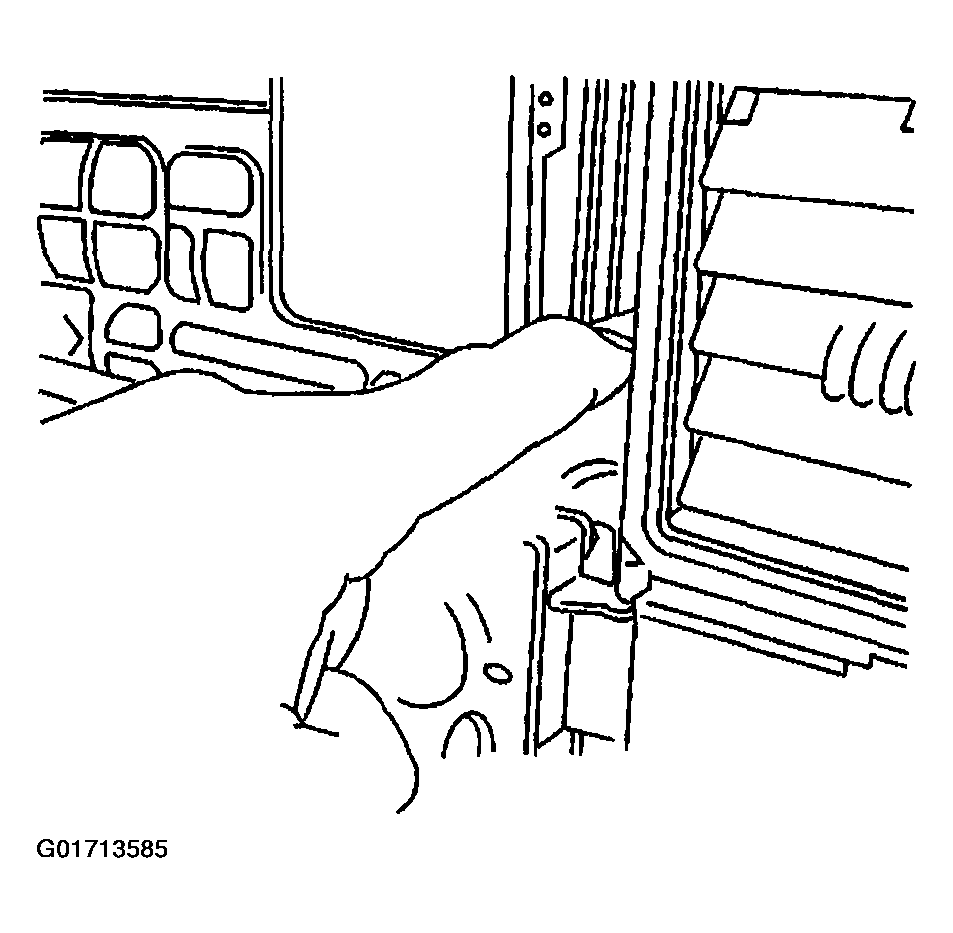

Fig 1: Pushing Down On Retainers To Release Radio Retainers
Courtesy of GENERAL MOTORS CORP.
Slide the radio forward in order to remove the radio.

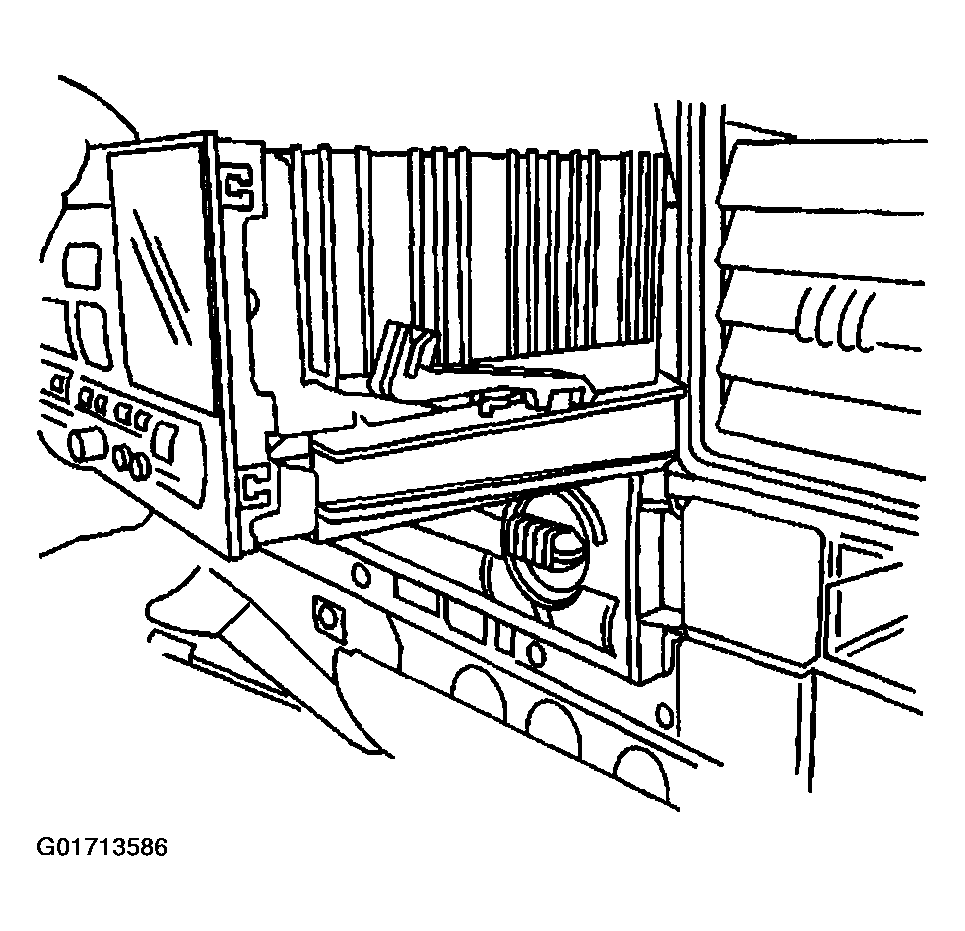

Fig 2: Removing Radio
Courtesy of GENERAL MOTORS CORP.
Remove the electrical connectors and the antenna connection.

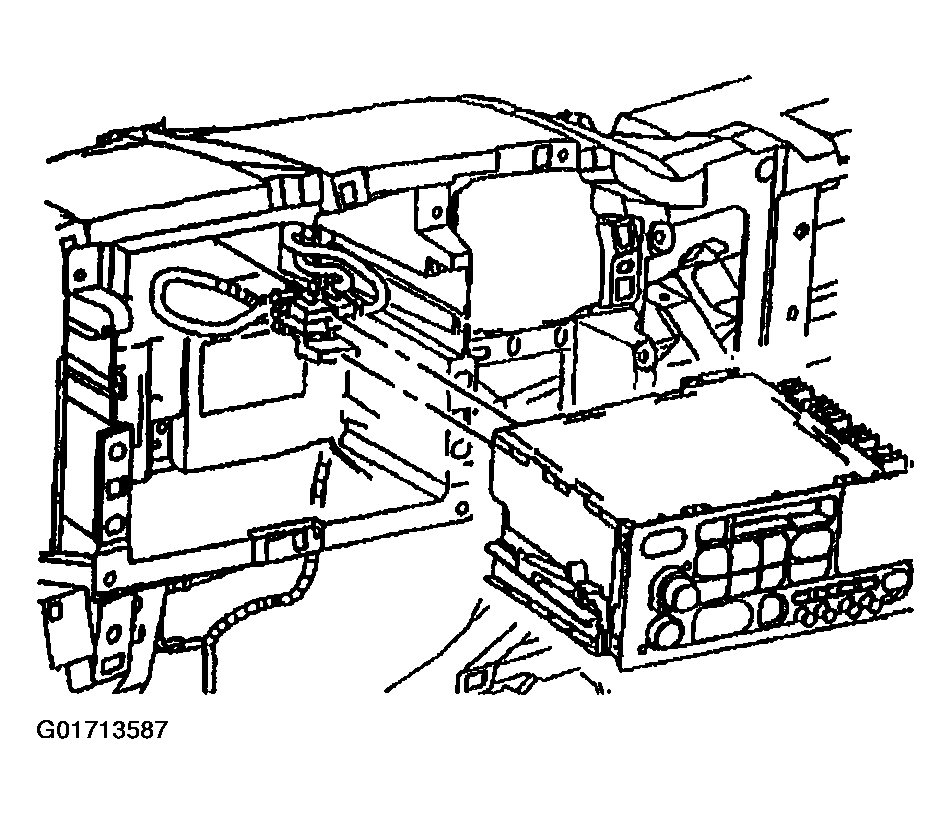

Fig 3: Removing Electrical & Antenna Connections From Radio
Courtesy of GENERAL MOTORS CORP.
