Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the front fender liner to the front fender.
  2. Install the push-in retainers to the front fender liner.
    CAUTION: Refer to FASTENER NOTICE .
  3. Install the front fender liner to front fender bolts (4).

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

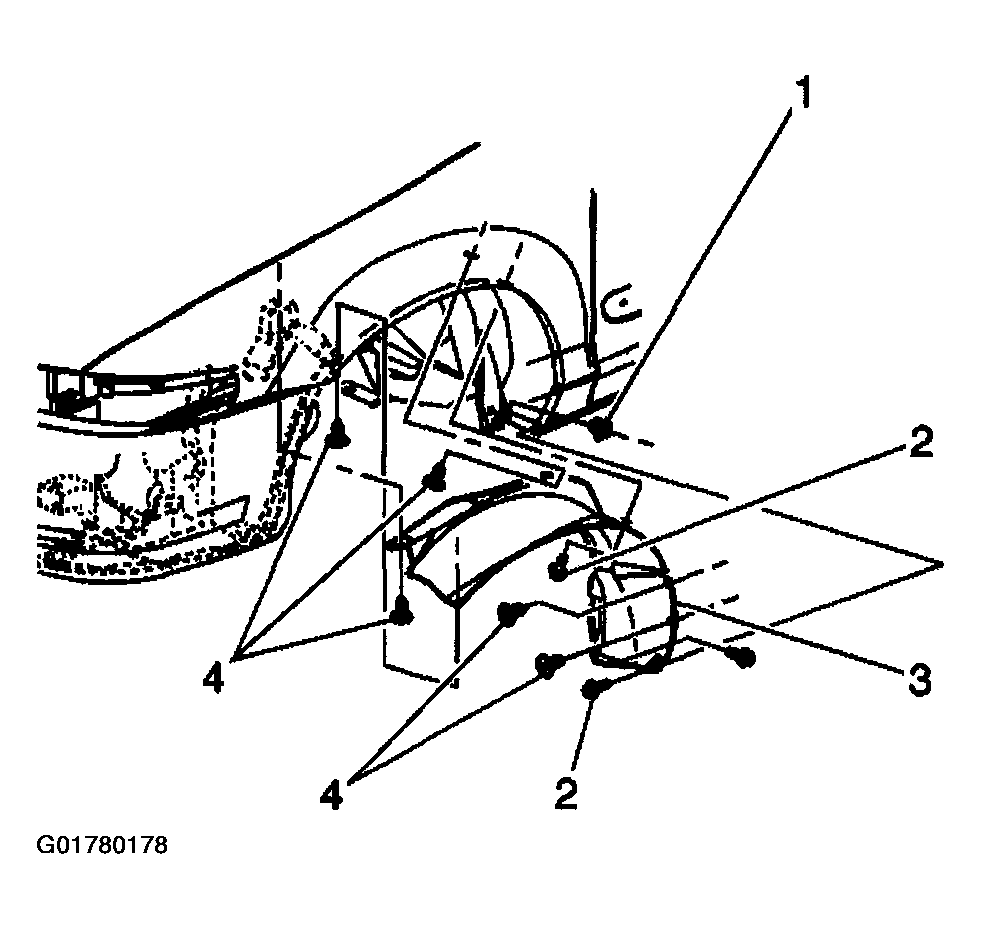

    Fig 1: Installing Front Fender Liner
    G01780178Courtesy of GENERAL MOTORS CORP.
  4. Install the front fender liner to front bumper fascia bolts.

    Tighten

    Tighten the bolts to 2 N.m (18 lb in).

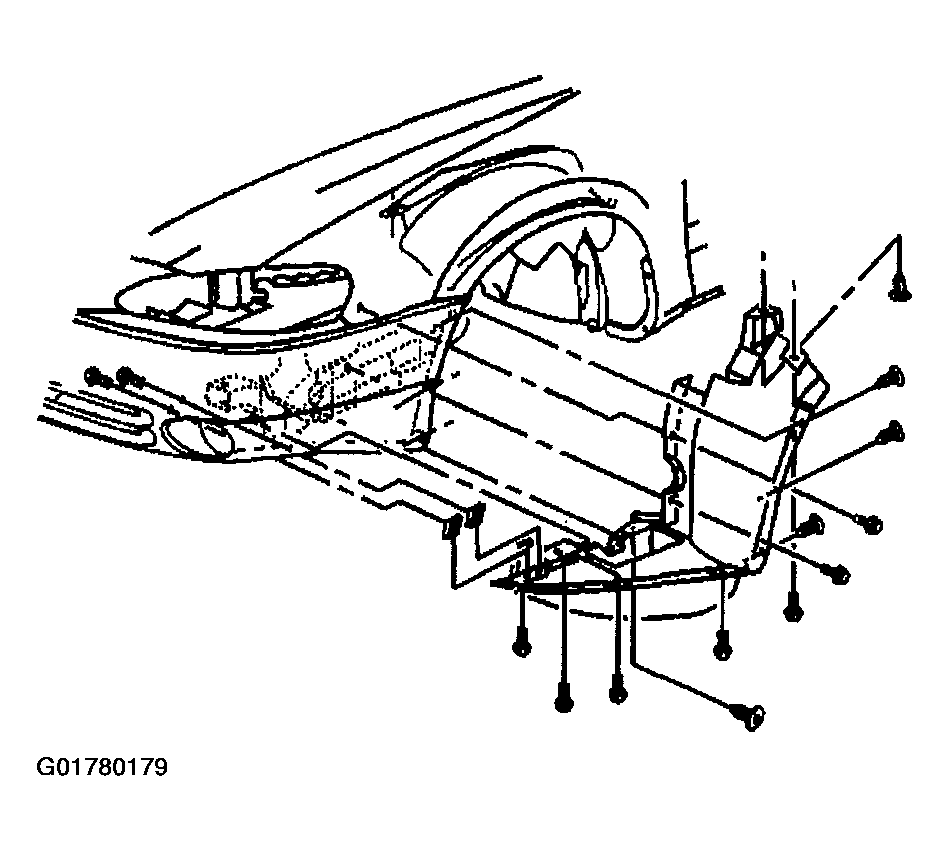

    5. Fig 2: Installing Front Fender Liner To Front Bumper Fascia Bolts
    G01780179Courtesy of GENERAL MOTORS CORP.
  5. Position the mud flap to the front fender, if equipped.
  6. Install the front mud flap screws.

    Tighten

    Tighten the screws to 2 N.m (18 lb in).

  7. Install the tire and wheel assembly. Refer to TIRE AND WHEEL REMOVAL AND INSTALLATION .
  8. Lower the vehicle.
