Installation Procedure

WARNING: This page is about a different car, the 2002 Chevrolet Malibu. However, it is still accessible from the selected car via links, so may be relevant.

Install the hood latch support (3) to the vehicle.
CAUTION: Refer to FASTENER NOTICE .
Install the hood latch support bolts (1) to the hood latch support (3).
Tighten

Tighten the bolts to 9 N.m (80 lb in).

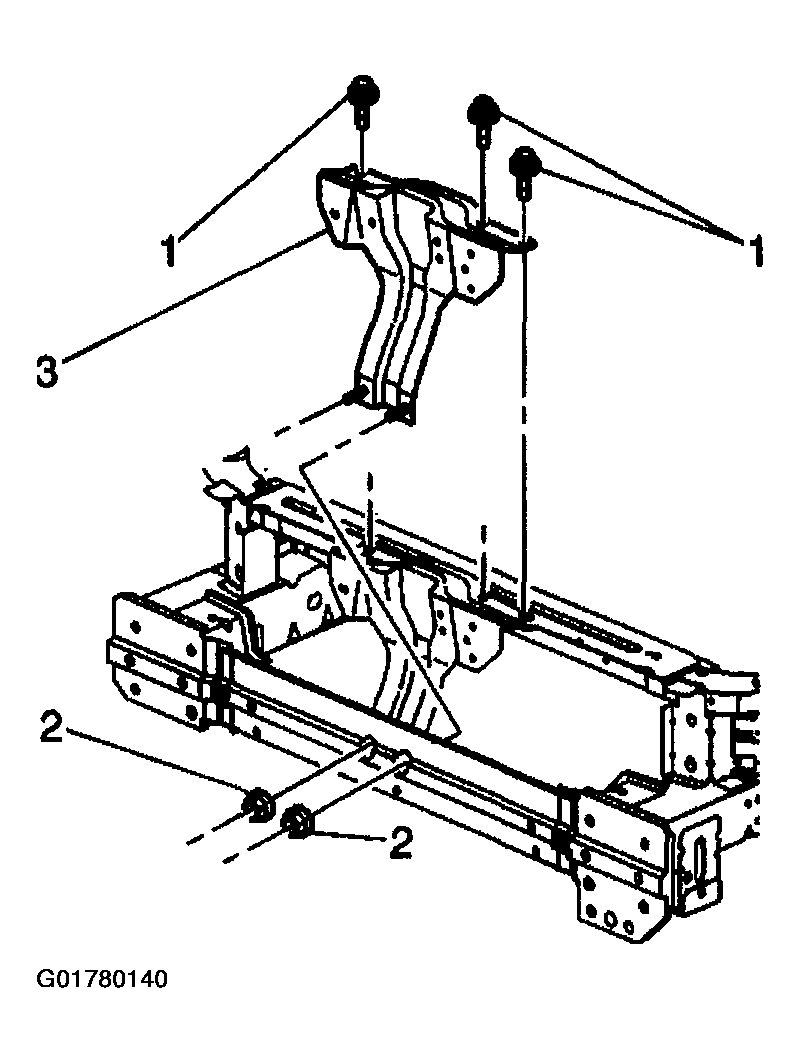

Fig 1: Installing Hood Latch Support

Courtesy of GENERAL MOTORS CORP.

Install the hood latch support nuts (2) to the hood latch support (3).
Tighten

Tighten the nuts to 25 N.m (18 lb ft).
Install the hood latch. Refer to Hood Latch Replacement .
Install the grille. Refer to GRILLE REPLACEMENT .
