Shift Mechanism Removal/Installation: Notes

WARNING: This page is about a different car, the 2004 Mazda 3. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following parts:
1. Battery and battery tray
  (See BATTERY REMOVAL/INSTALLATION .)
2. Center console
  (See CONSOLE REMOVAL/INSTALLATION .)
3. Heat insulator (Front)
Remove in the order indicated in the table.
Install in the reverse order of removal.
After installation, verify that the shift lever can be shifted smoothly into each position.

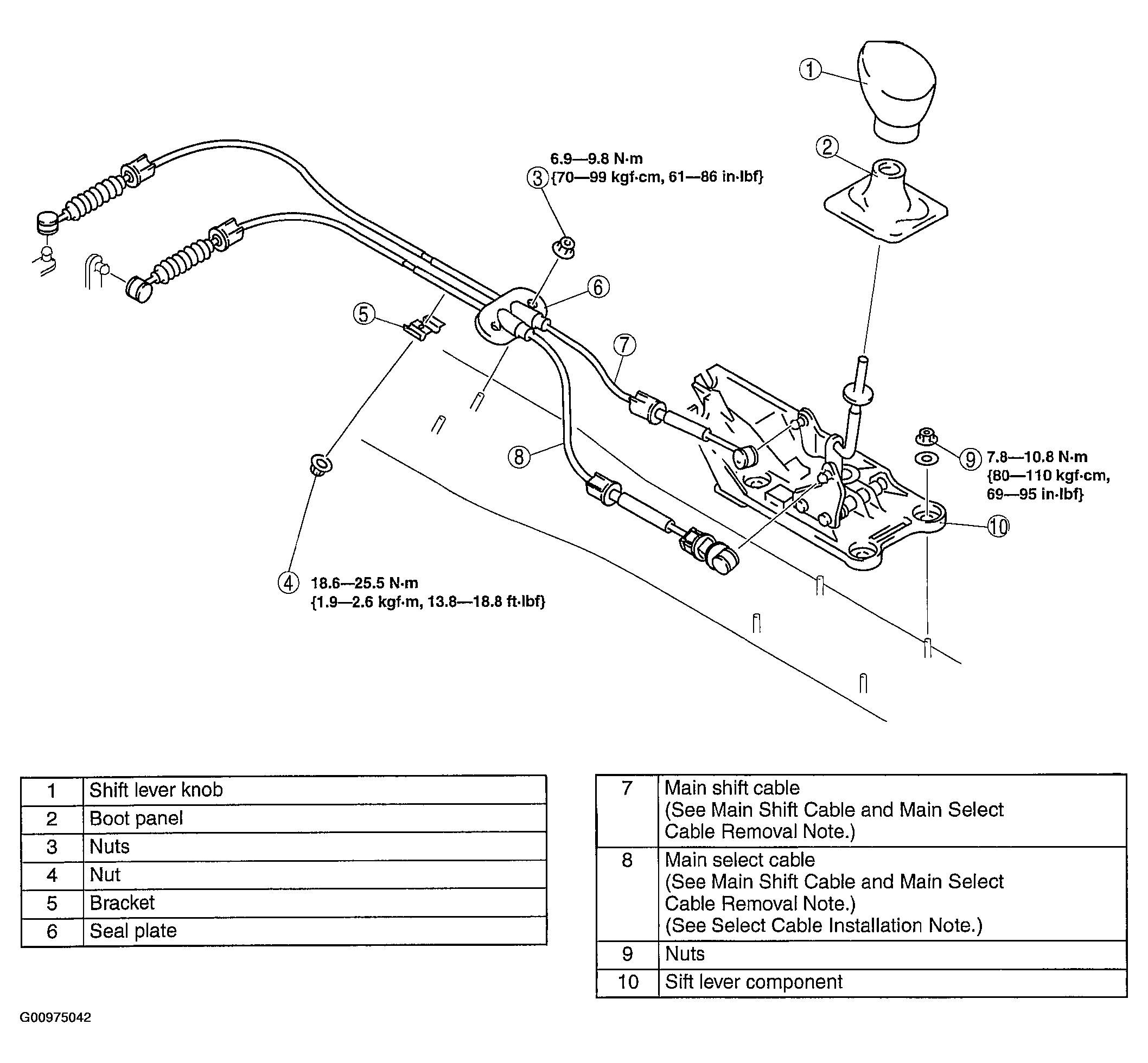

Fig 1: Shift Mechanism With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
