Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the DVD player hook (1) into the hook opening.

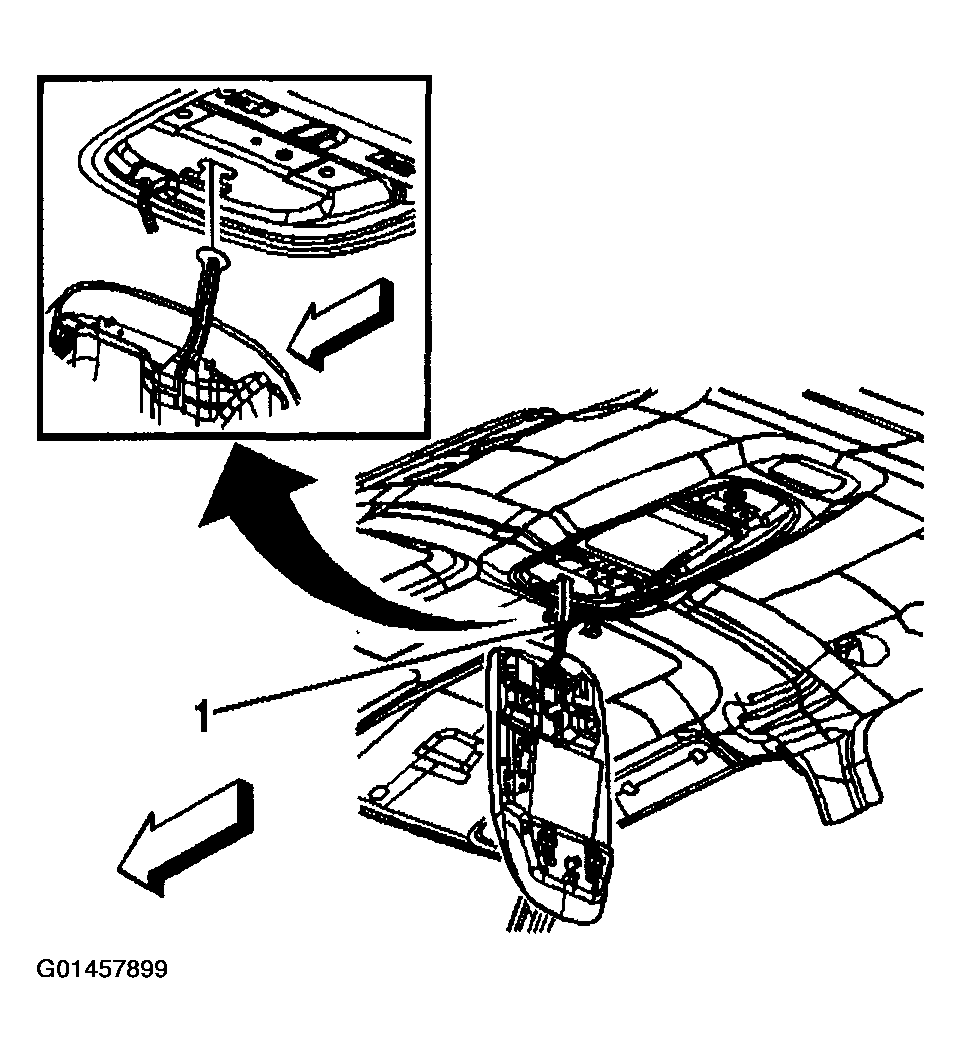

    2. Fig 1: Installing DVD Player Hook Into Hook Opening
    G01457899Courtesy of GENERAL MOTORS CORP.
  2. Connect the wire connector (1) to the DVD player assembly.

    Important:  Ensure the harness is routed to the right side of the large plastic pin as shown (2).

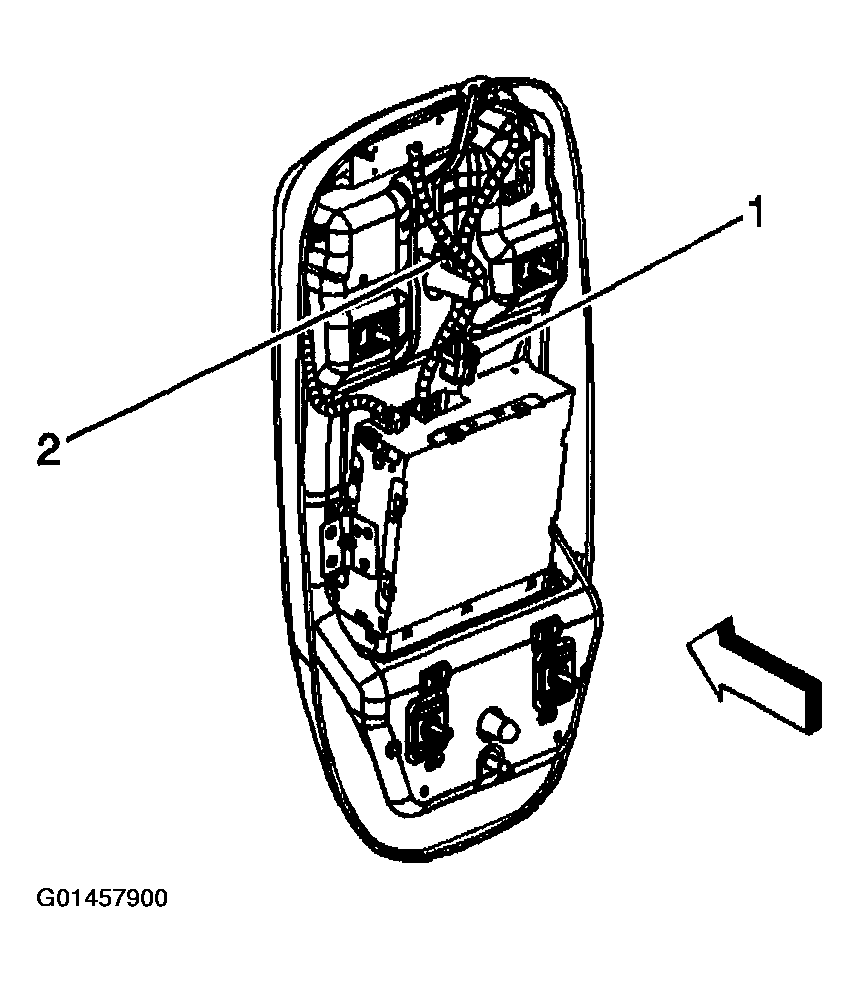

    3. Fig 2: Connecting Wire Connector To DVD Player Assembly
    G01457900Courtesy of GENERAL MOTORS CORP.
  3. Install the harness retainer to the panel.
  4. Swing the rear part of the assembly to the headliner so that the retainer is seated.
  5. Install the two rear retaining bolts.

    Tighten

    1. Tighten the 2 rear retaining bolts to 9 N.m (80 lb in).
  6. Move the screen to the open position.
  7. Install the 2 front retaining bolts (2).

    Tighten

    1. Tighten the 2 front retaining bolts to 9 N.m (80 lb in).

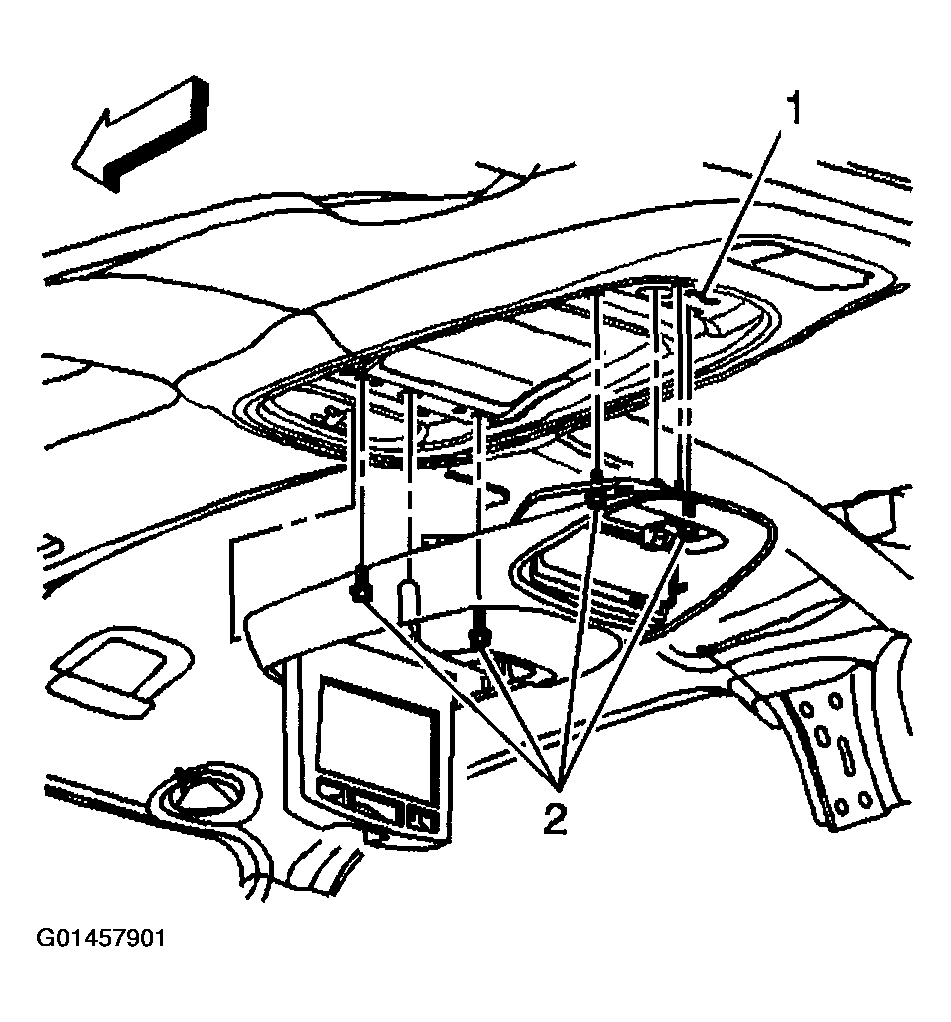

    8. Fig 3: Installing 2 Front Retaining Bolts
    G01457901Courtesy of GENERAL MOTORS CORP.
  8. Install the rear screw cover.
