Removal Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the instrument panel bezel. Refer to BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER in INSTRUMENT PANEL, GAGES, AND CONSOLE .
  2. Pull out the accessary switch housing.
  3. Disconnect the electrical connectors.
  4. Remove the head lamp leveling switch from the accessary switch housing.

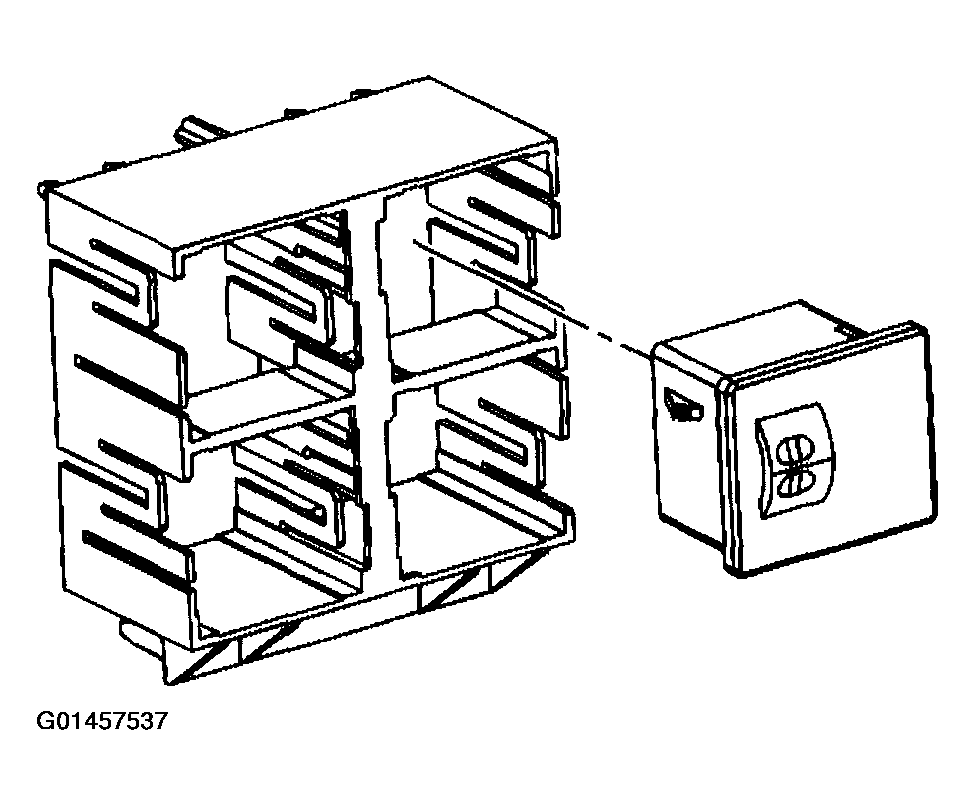

    5. Fig 1: Removing Head Lamp Leveling Switch From Accessary Switch Housing
    G01457537Courtesy of GENERAL MOTORS CORP.
