Installation Procedure

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2003 GMC Yukon XL, 2003 GMC Yukon, 2003 Chevrolet Tahoe, 2003 Chevrolet Suburban, and 2003 Chevrolet Avalanche. However, it is still accessible from the selected car via links, so may be relevant.
  1. With an assistant, install the endgate onto the left body side hinge by sliding to the left and lifting.

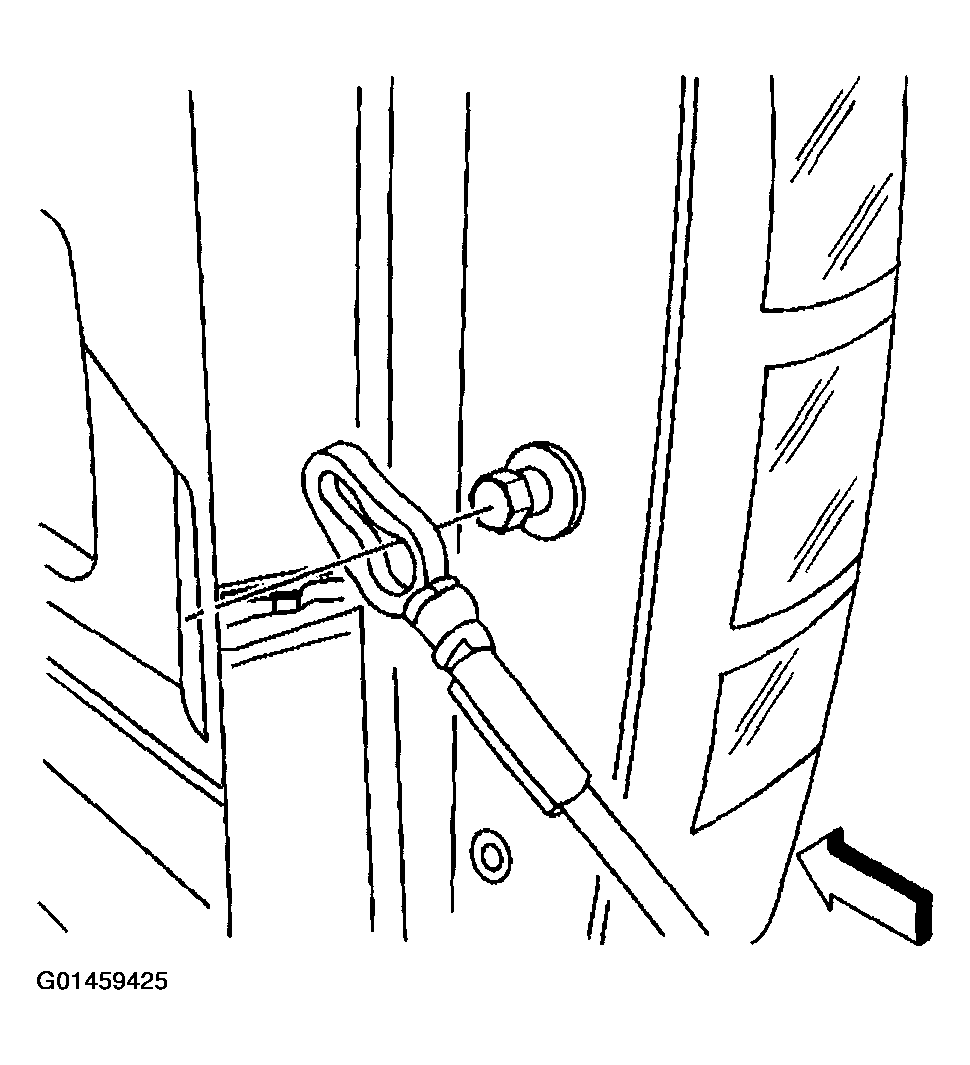

    2. Fig 1: Installing Endgate To Right Side Hinge Assembly
    G01459425Courtesy of GENERAL MOTORS CORP.
  2. Install the endgate to the right side hinge assembly by holding the endgate at a 45 degree angle and lowering the endgate onto the hinge.
  3. Install the cables onto the side panel striker bolts.
  4. Install the theft deterrent bolt.
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

    Tighten

    1. Tighten the bolt to 25 N.m (18 lb ft).

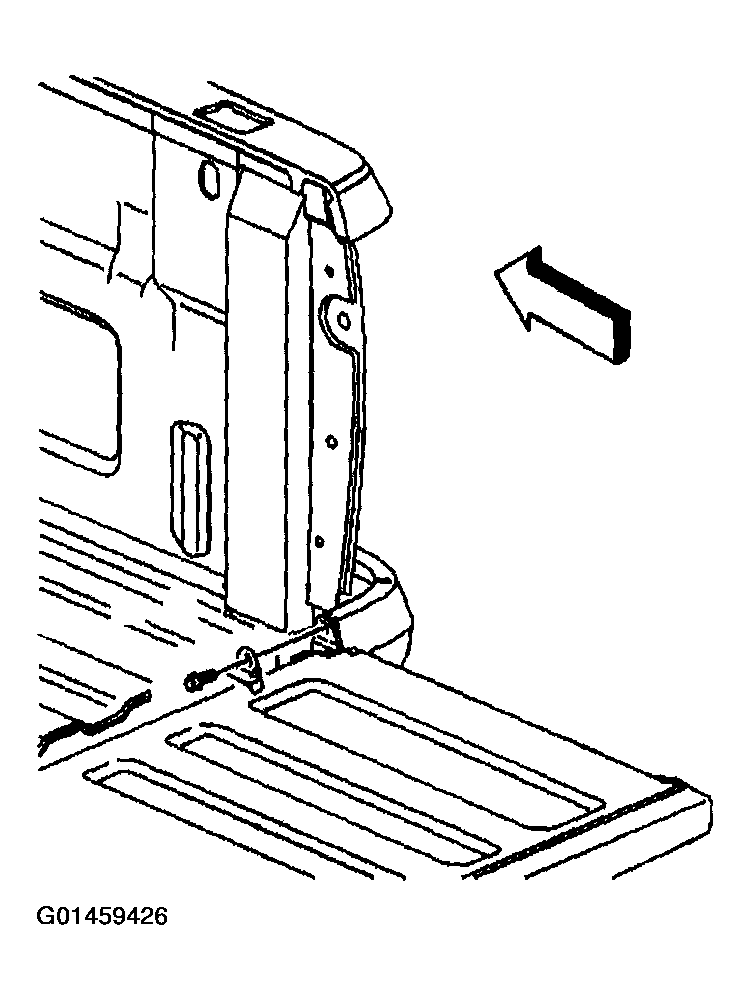

    5. Fig 2: Installing Theft Deterrent Bolt
    G01459426Courtesy of GENERAL MOTORS CORP.
  5. Inspect the endgate operation.
