Installation Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.

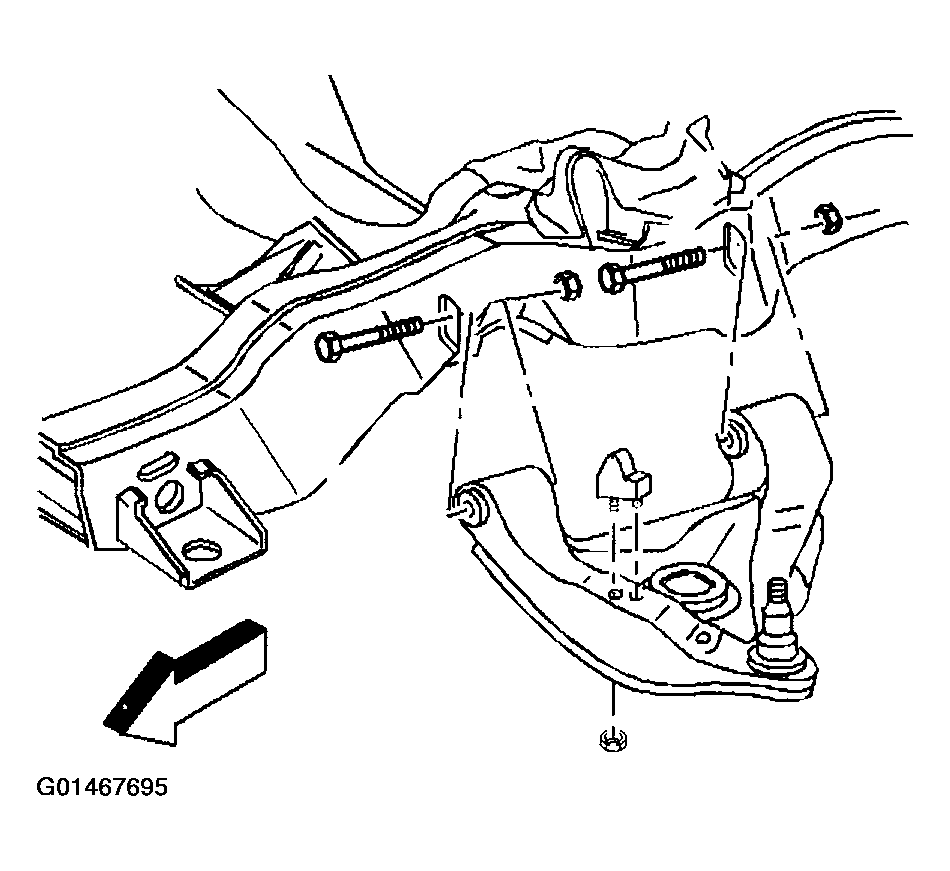

- Install the lower control arm bumper.NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
- Install the lower control arm bumper nut
Tighten
Tighten the nut to 25 N.m (18 lb ft).
- Install the lower control arm to the vehicle.
- Install the lower ball joint stud to the steering knuckle. Refer to LOWER BALL JOINT REPLACEMENT (RWD) or LOWER BALL JOINT REPLACEMENT (4WD) .
- Install the front coil spring. Refer to FRONT COIL SPRINGS REPLACEMENT .
- Check the front wheel alignment. Adjust if necessary. Refer to MEASURING WHEEL ALIGNMENT in Wheel Alignment.
