Removal Procedure
WARNING: This page is about a different car, the 2003 GMC Sonoma, 2003 GMC Jimmy, 2003 Chevrolet S10 Pickup, and 2003 Chevrolet Blazer. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Refer to BATTERY DISCONNECT CAUTION
in Cautions and Notices.
- Remove the negative battery cable.
- Remove the floor console from the vehicle. Refer to CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (AUTO TRANS)) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (ENVOY)) or CONSOLE REPLACEMENT -- FRONT FLOOR (NON-FULL LENGTH) or CONSOLE REPLACEMENT -- FRONT FLOOR (FULL LENGTH (MANUAL TRANS)) .
- Remove remote CD changer, if equipped. Refer to REMOTE CD PLAYER REPLACEMENT .
- Remove the console wiring harness from the amplifier.

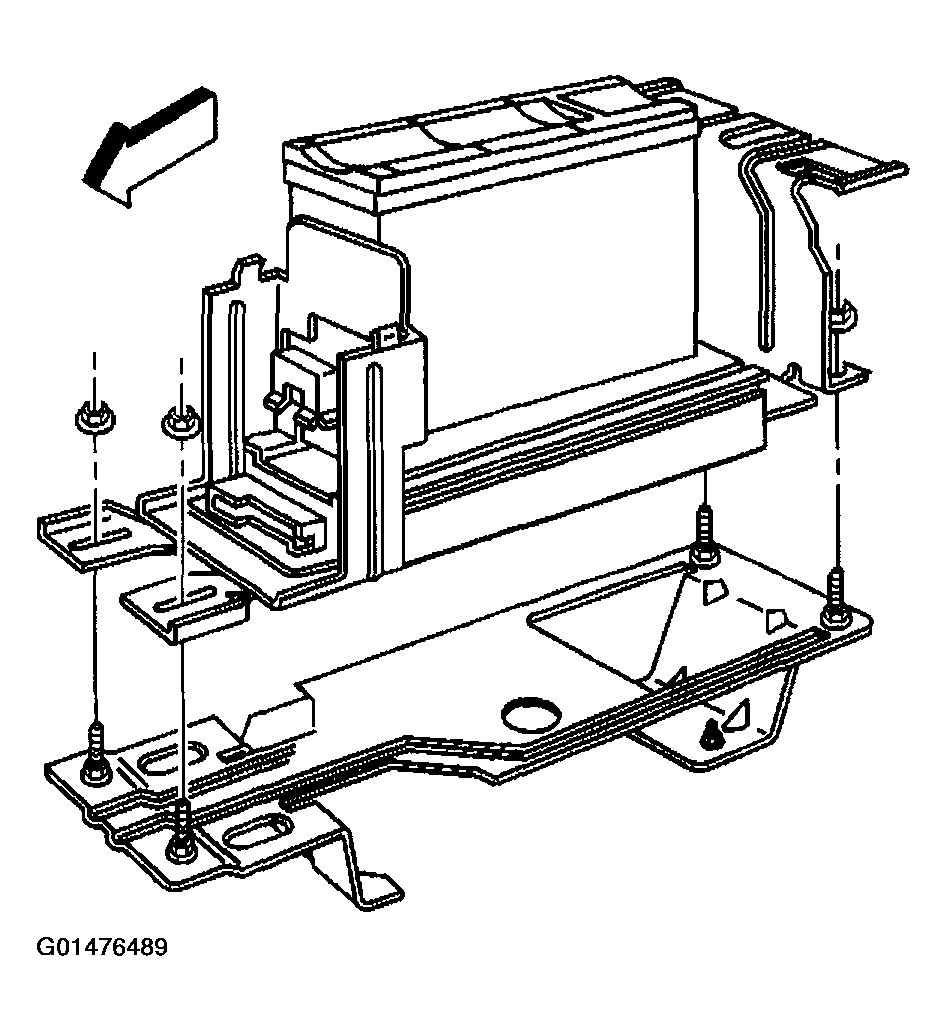

- Remove the amplifier mounting nuts.
- Remove the amplifier from the mounting bracket.
