Wiper/Washer System Component Views

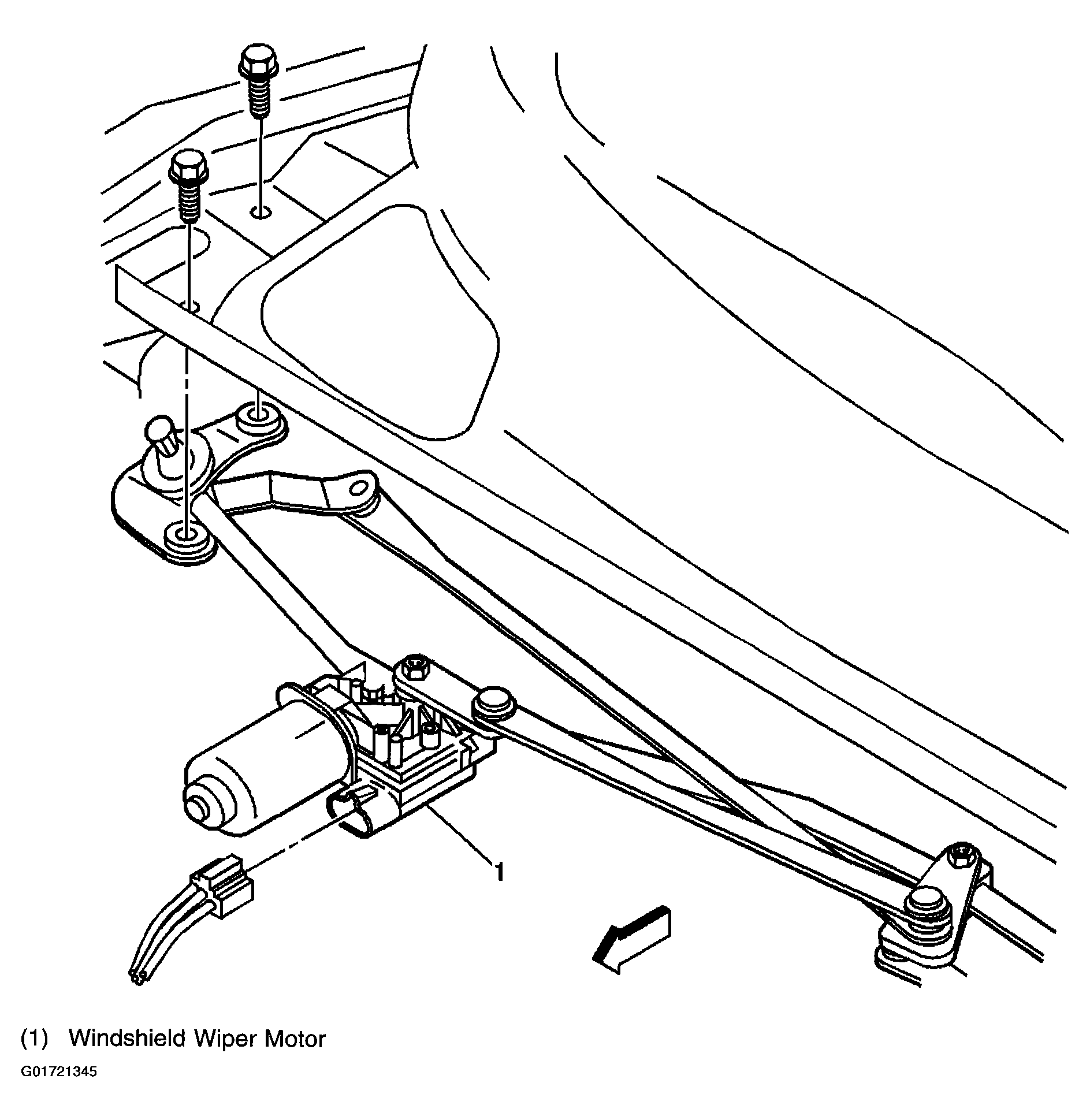

Fig 1: Windshield Wiper Motor Component Views
G01721345Courtesy of GENERAL MOTORS CORP.

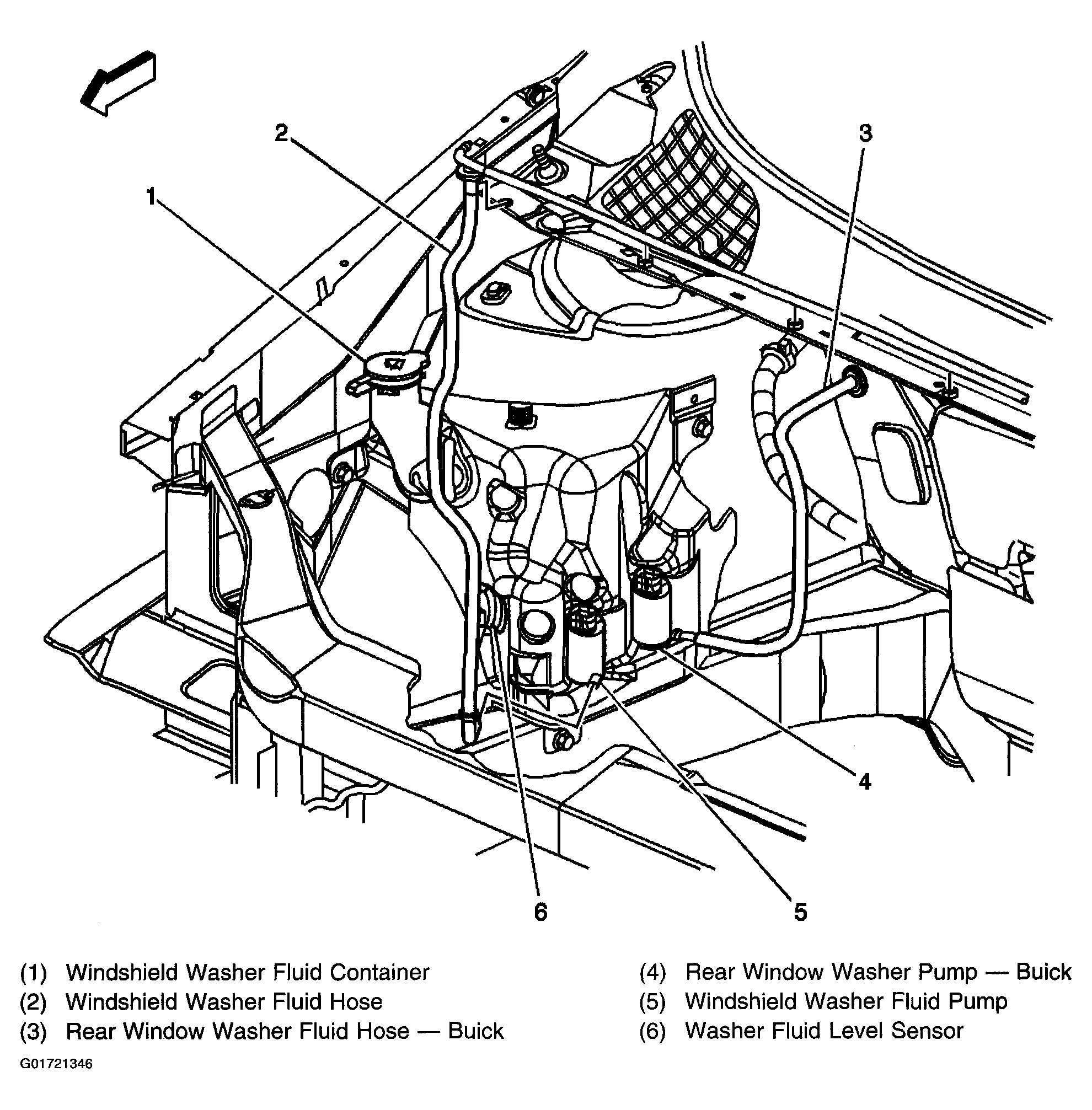

Fig 2: Windshield Washer Fluid Pump Component Views
G01721346Courtesy of GENERAL MOTORS CORP.

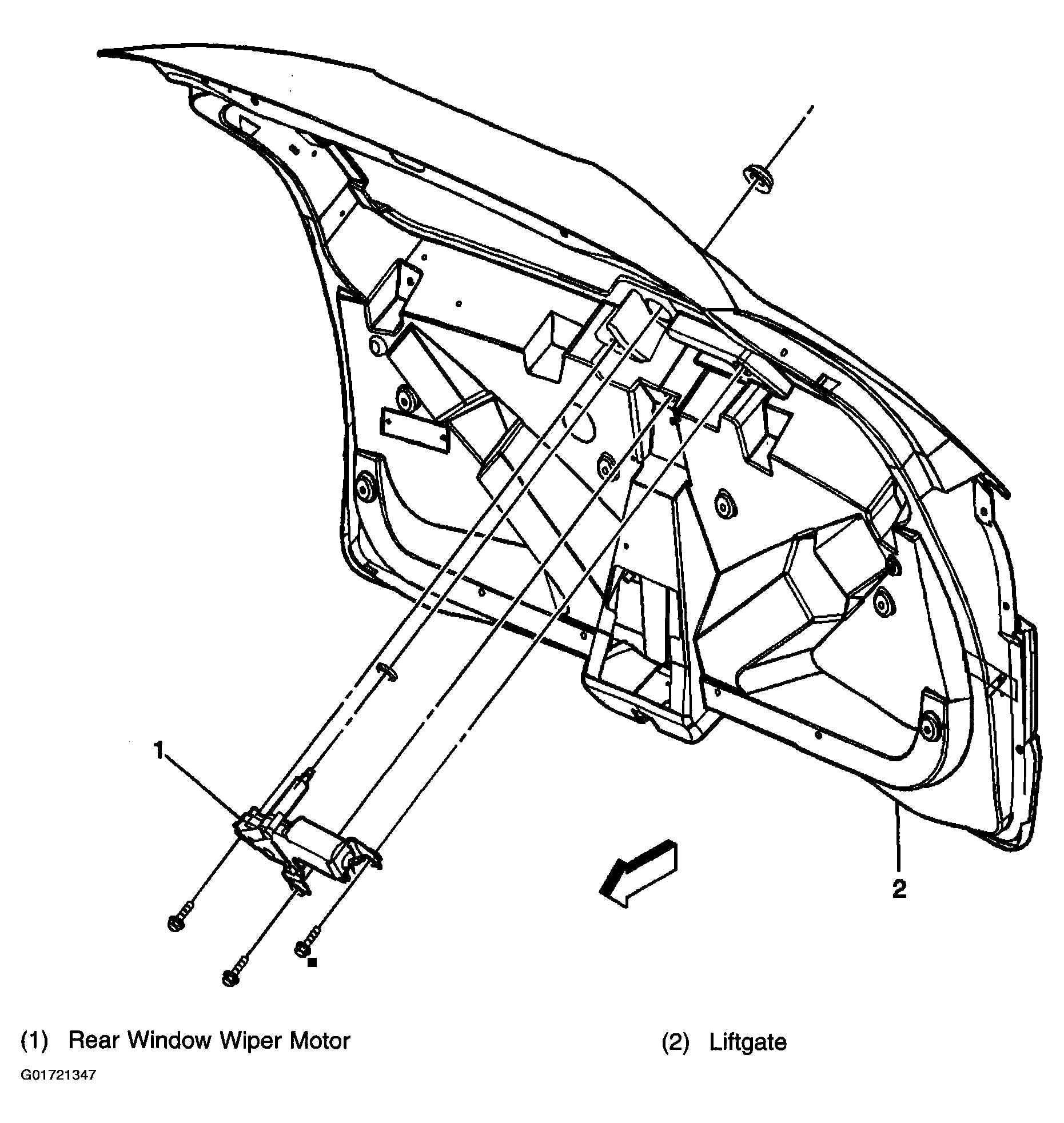

Fig 3: Rear Window Wiper Motor Component Views - Buick
G01721347Courtesy of GENERAL MOTORS CORP.
