Scan Tool Data List

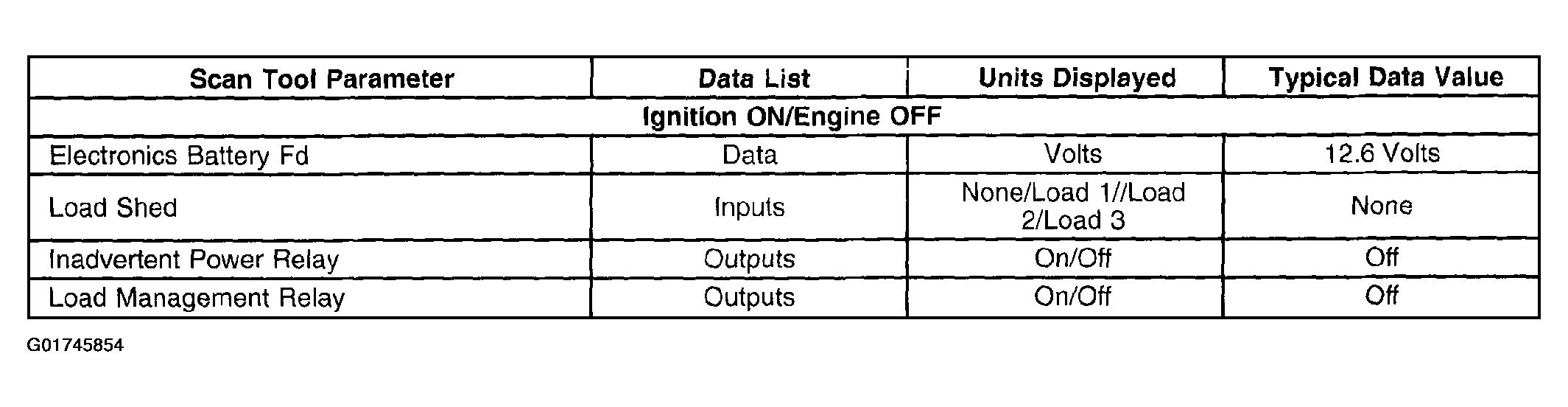

Fig 1: Body Control Module (BCM)
G01745854Courtesy of GENERAL MOTORS CORP.

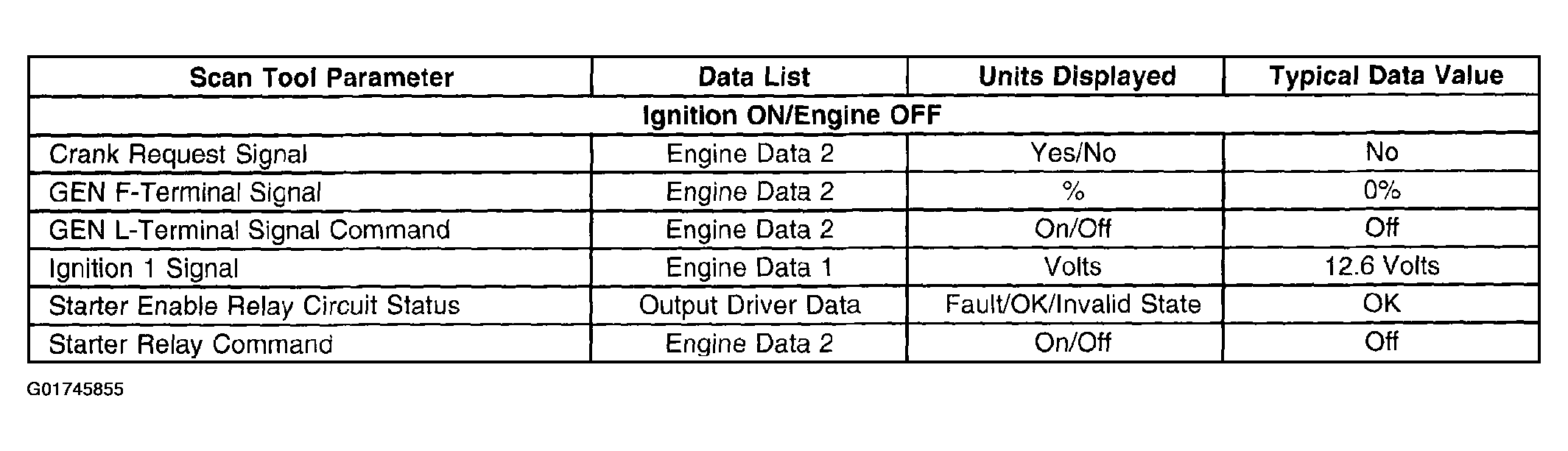

Fig 2: Powertrain Control Module (PCM)
G01745855Courtesy of GENERAL MOTORS CORP.
