Engine Support Fixture: 3.1L

WARNING: This page is about a different car, the 2003 Buick Regal, 2003 Buick Century, 2002 Buick Regal, and 2002 Buick Century. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery cable.
Remove the left engine mount strut and the bracket from the upper radiator support. See ENGINE MOUNT STRUT BRACKET-TO-UPPER RADIATOR SUPPORT .
Assemble the Engine Support Fixture Adapters (J-28467-501) (2) to the Universal Engine Support Fixture (J-28467-B) cross bar (1). See Fig 1 .
Install the universal engine support fixture (1) and the engine support fixture adapters (2) to the fender rails. See Fig 1 .
Install the Engine Support Adapter Leg Set (J-36462-A) (1) to the cross bar (2). See Fig 2 .
Install the support lift hook (1) to the cross bar (2). See Fig 3 .

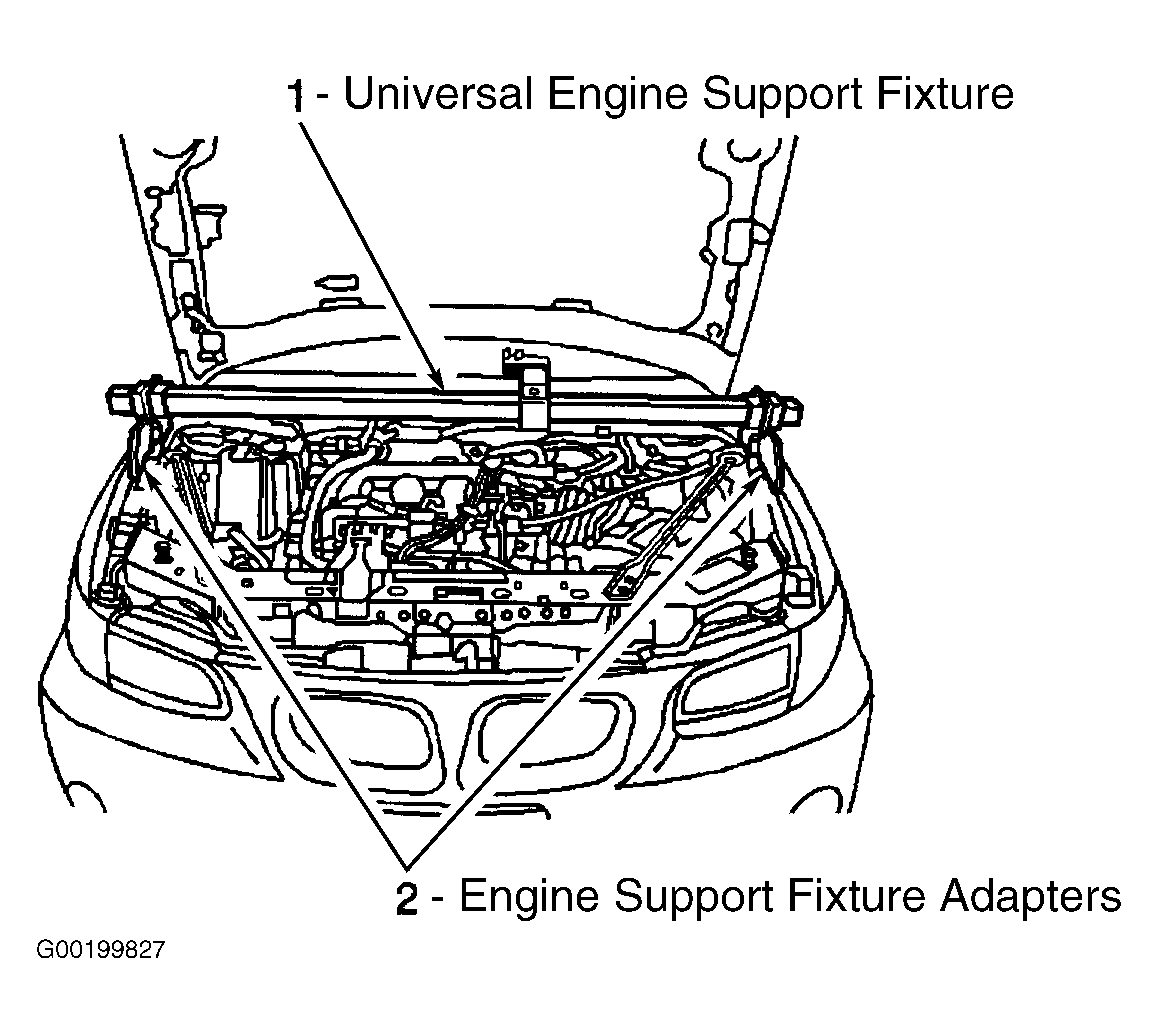

Fig 1: Installing Engine Support Fixture Adapters-To-Cross Bar
Courtesy of GMC

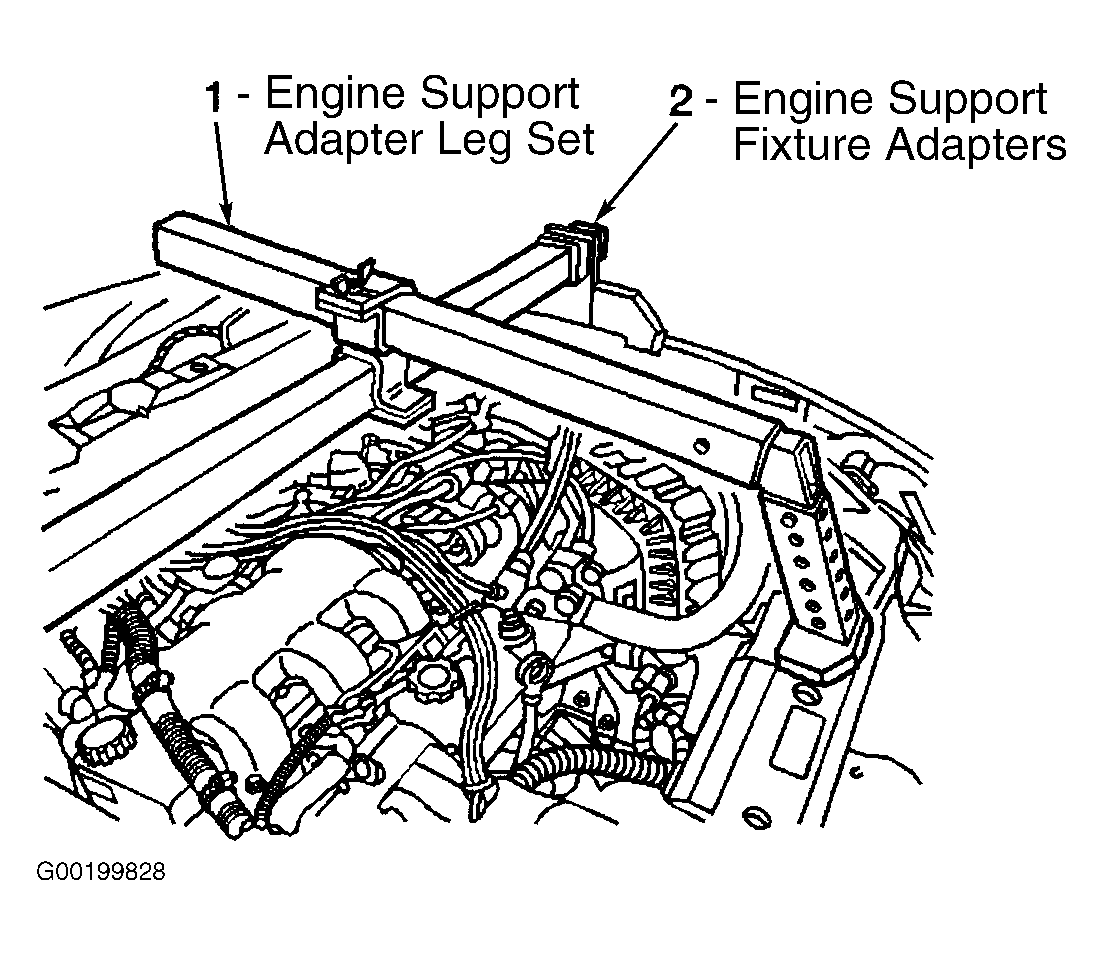

Fig 2: Installing Engine Support Adapter Leg Set-To-Cross Bar
Courtesy of GM

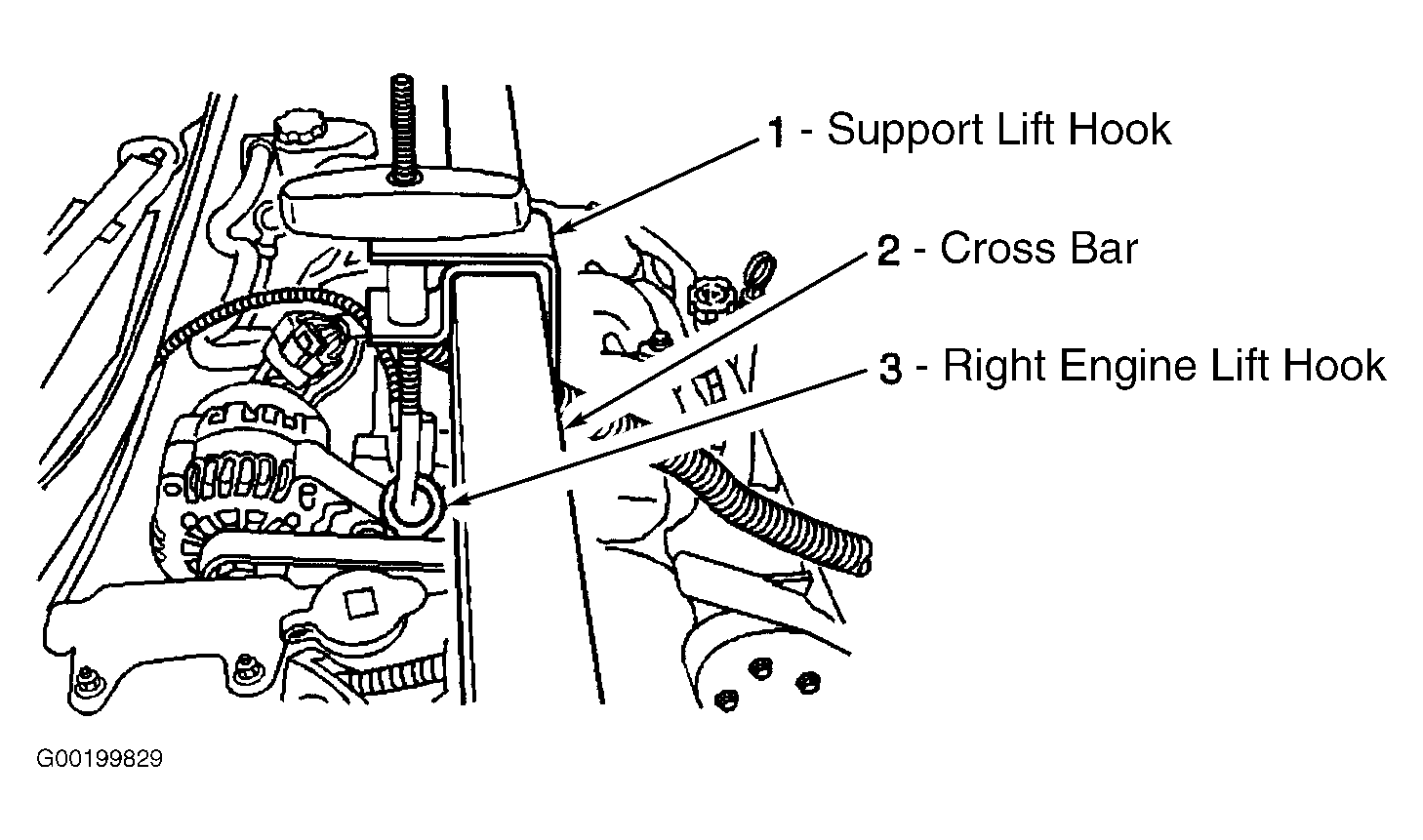

Fig 3: Installing Support Lift Hook-To-Cross Bar
Courtesy of GM
Install the support hook (1) to the right engine lift hook (3). See Fig 3 .
Install the support hook (1) to the engine support adapter leg set (2). See Fig 4 .
Install the support hook (1) to the left engine lift hook (3).
Raise the engine to release the pressure off of the engine mounts. See Fig 5 .

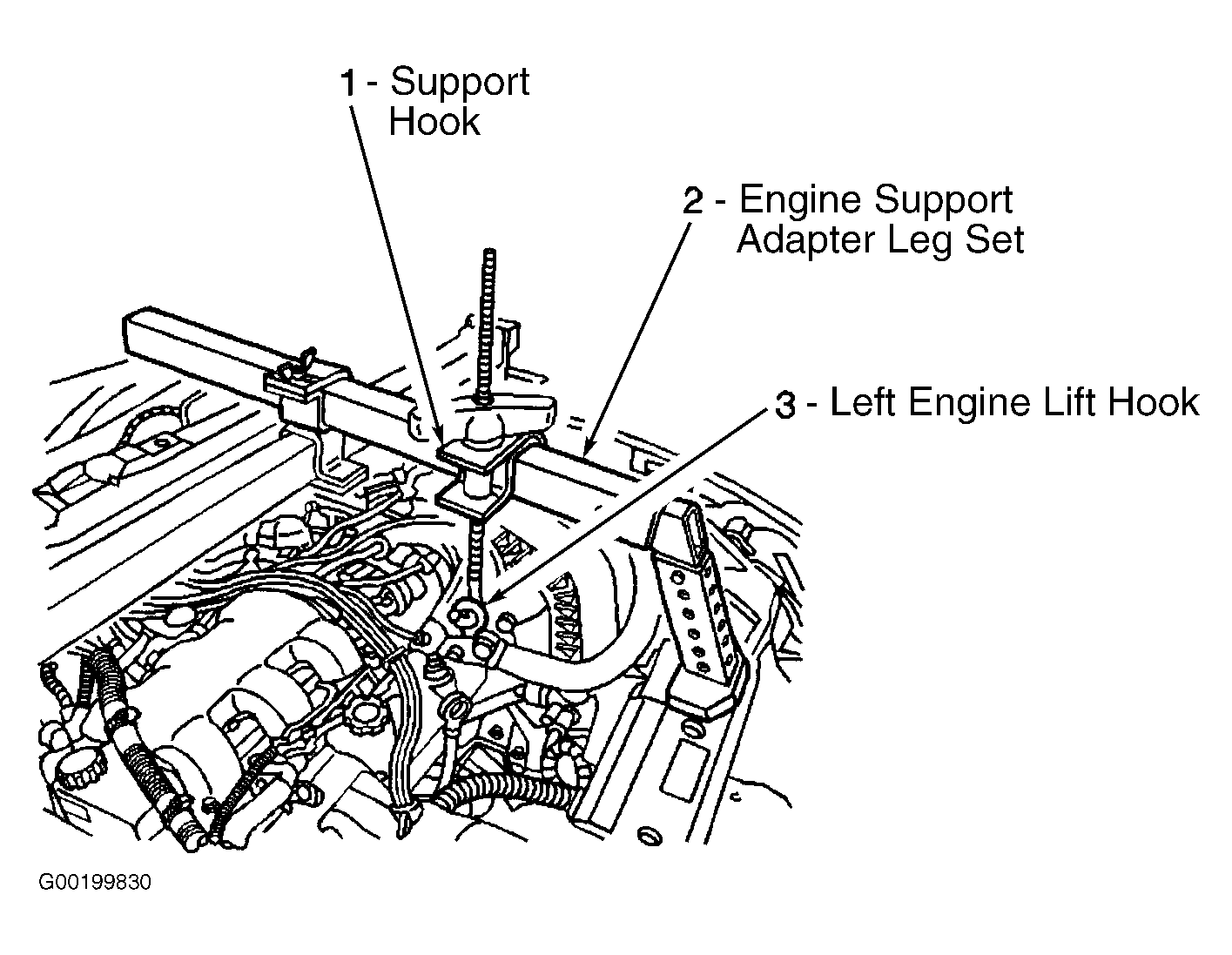

Fig 4: Installing Support Hook-To-Engine Support Adapter Leg Set
Courtesy of GM

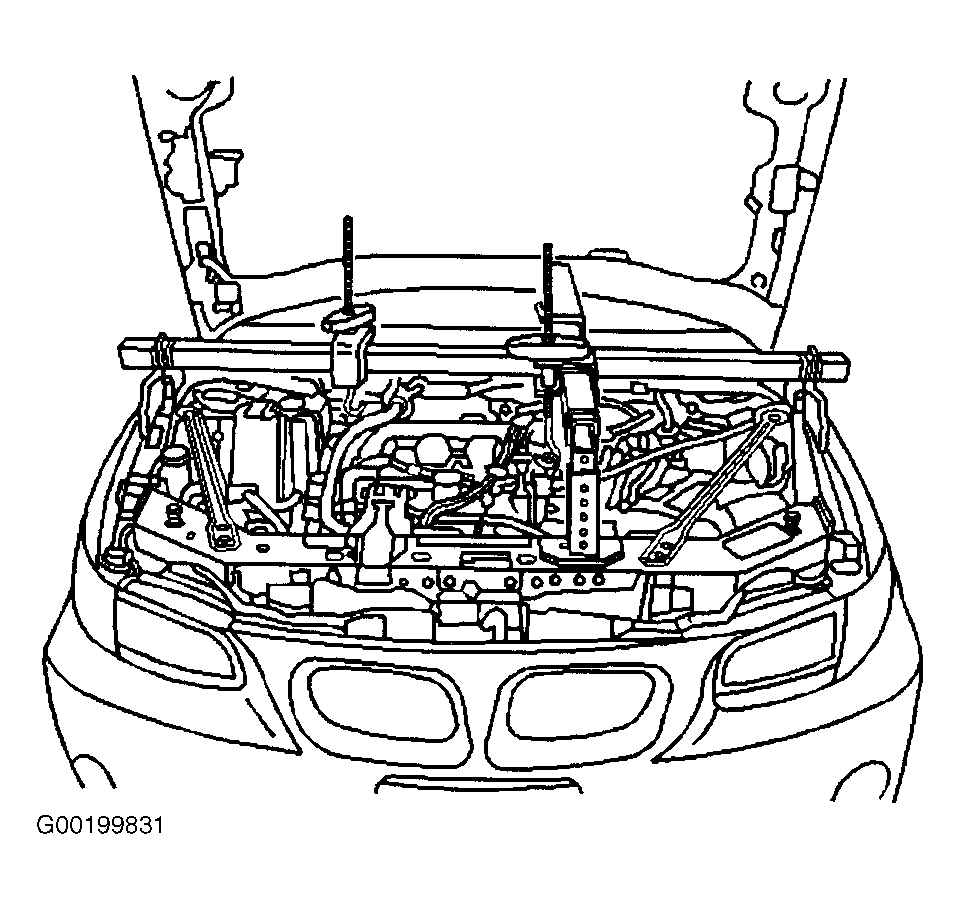

Fig 5: Installed Engine Support Fixture (3.1L)
Courtesy of GM
To remove, reverse installation procedure.
