Label Usage

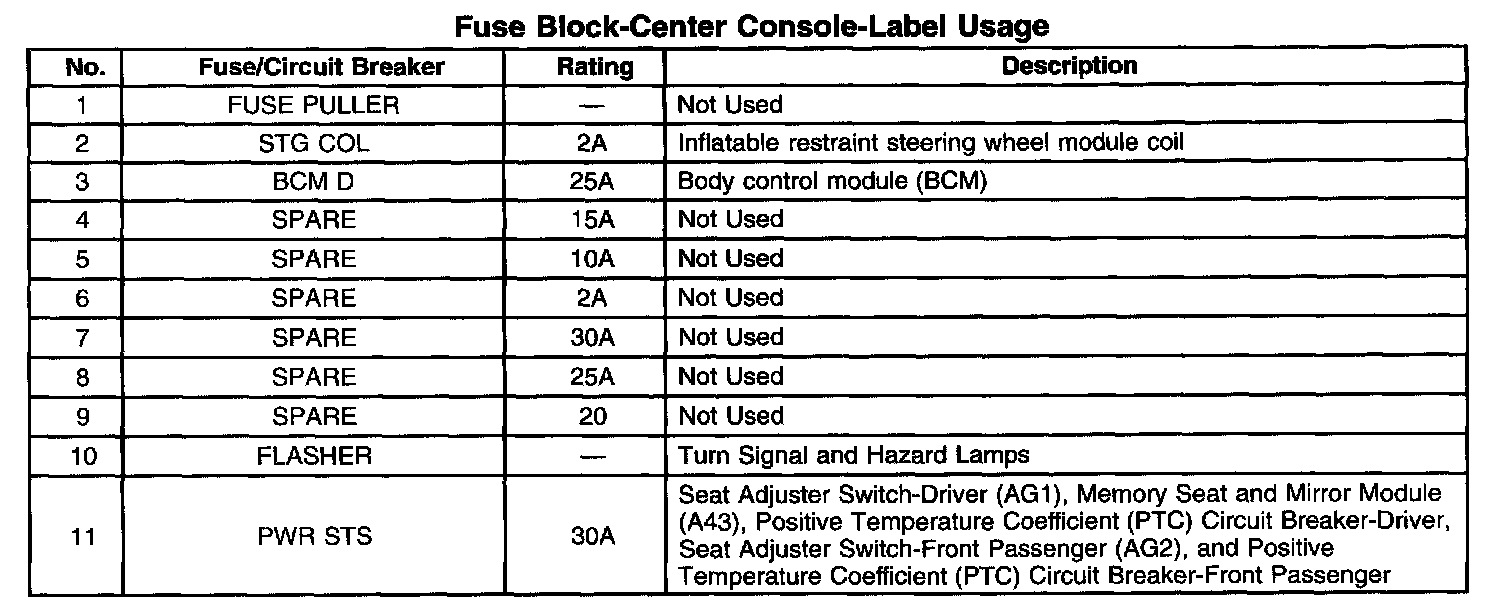

Fuse Block - Center Console - Label Usage Part 1:

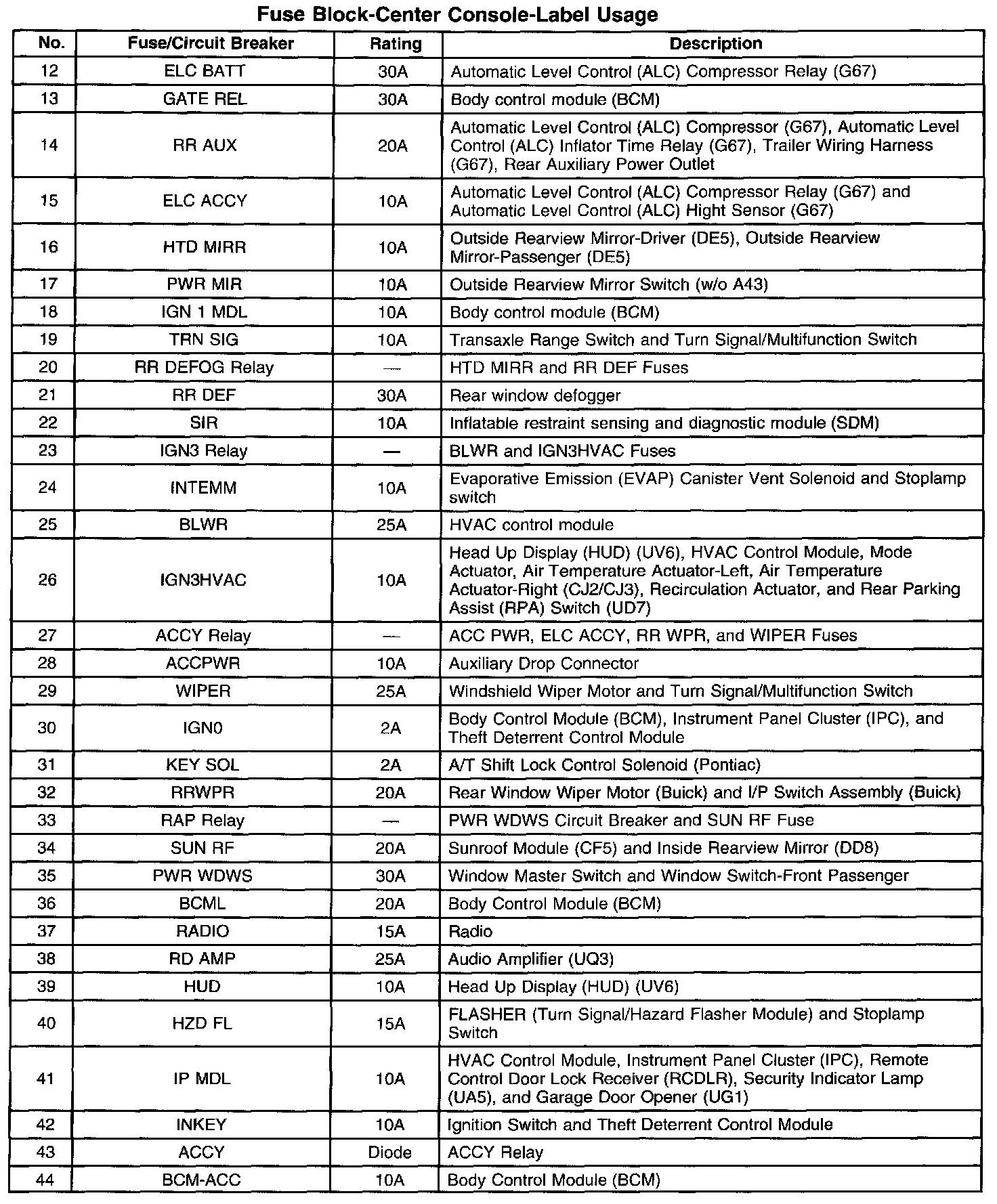

Fuse Block - Center Console - Label Usage Part 2:





"For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID". RPO Codes
