PCM References - Controlled/Monitored Subsystem

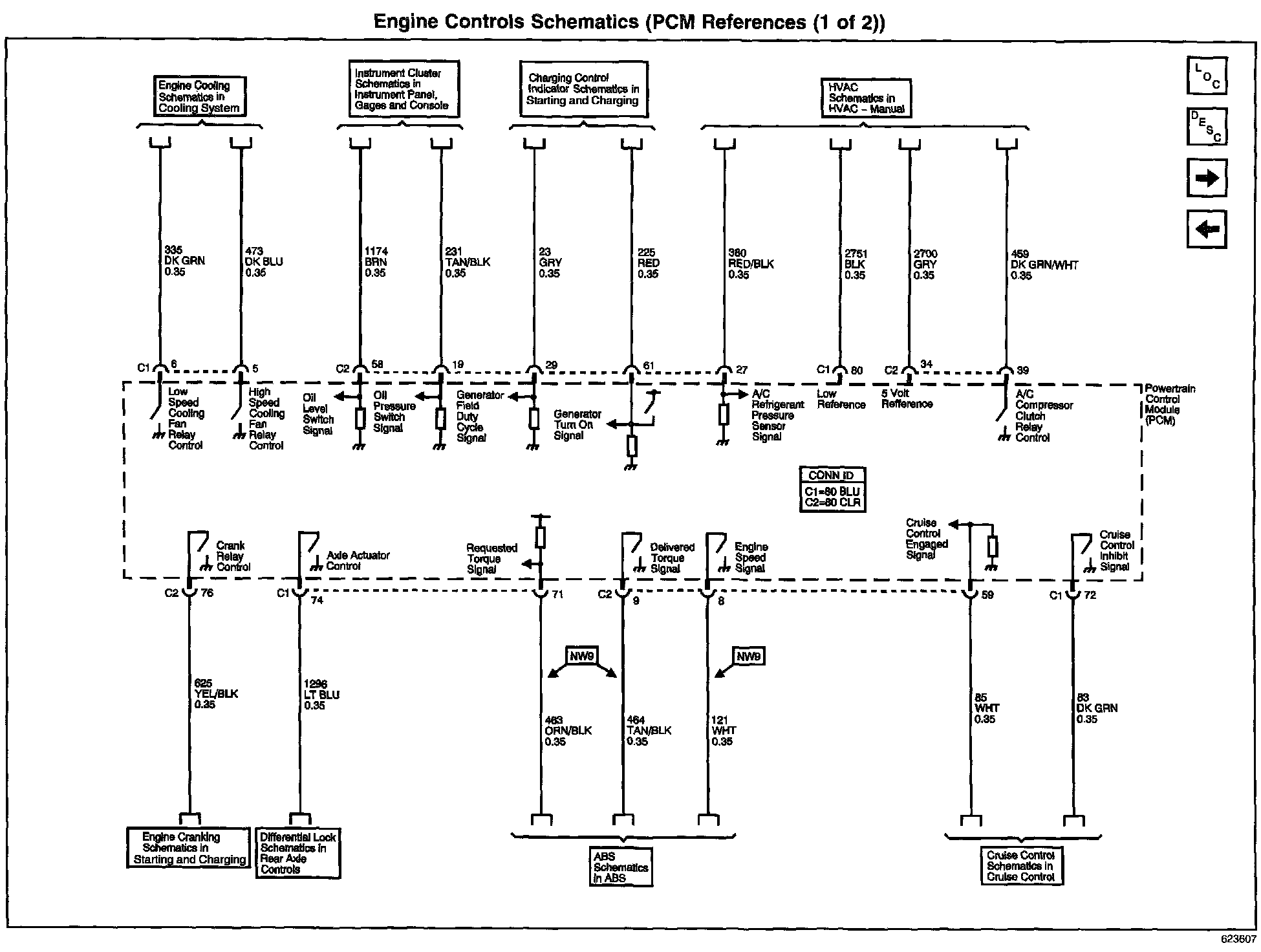

Engine Controls Schematics: PCM References Part 1:

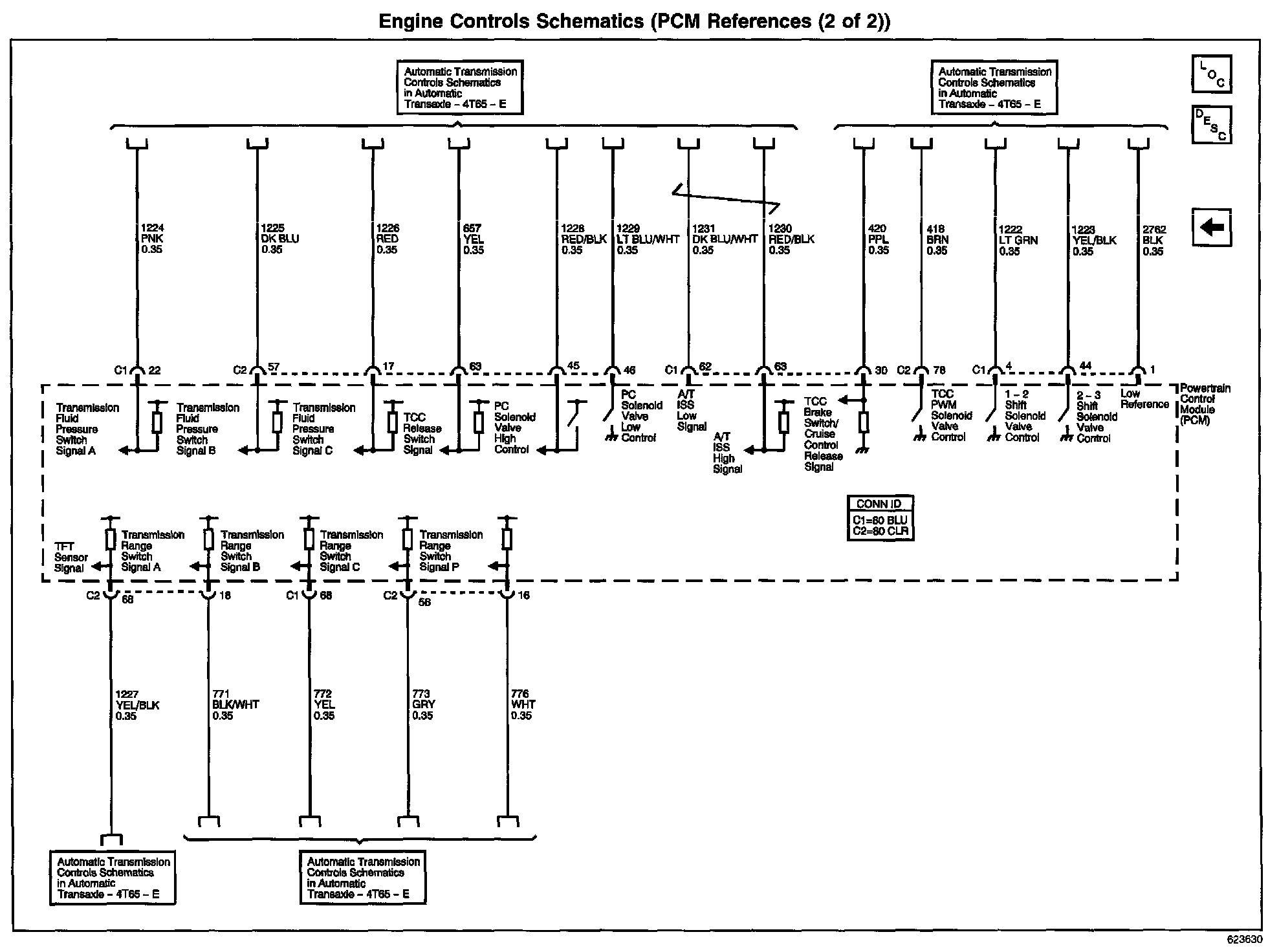

Engine Controls Schematics: PCM References Part 2:





For a description of the RPO Code(s) shown in this article or any of the images therein, refer to the RPO Code List found at Vehicle/Application ID.
