HVAC Control Connector End View (C2)

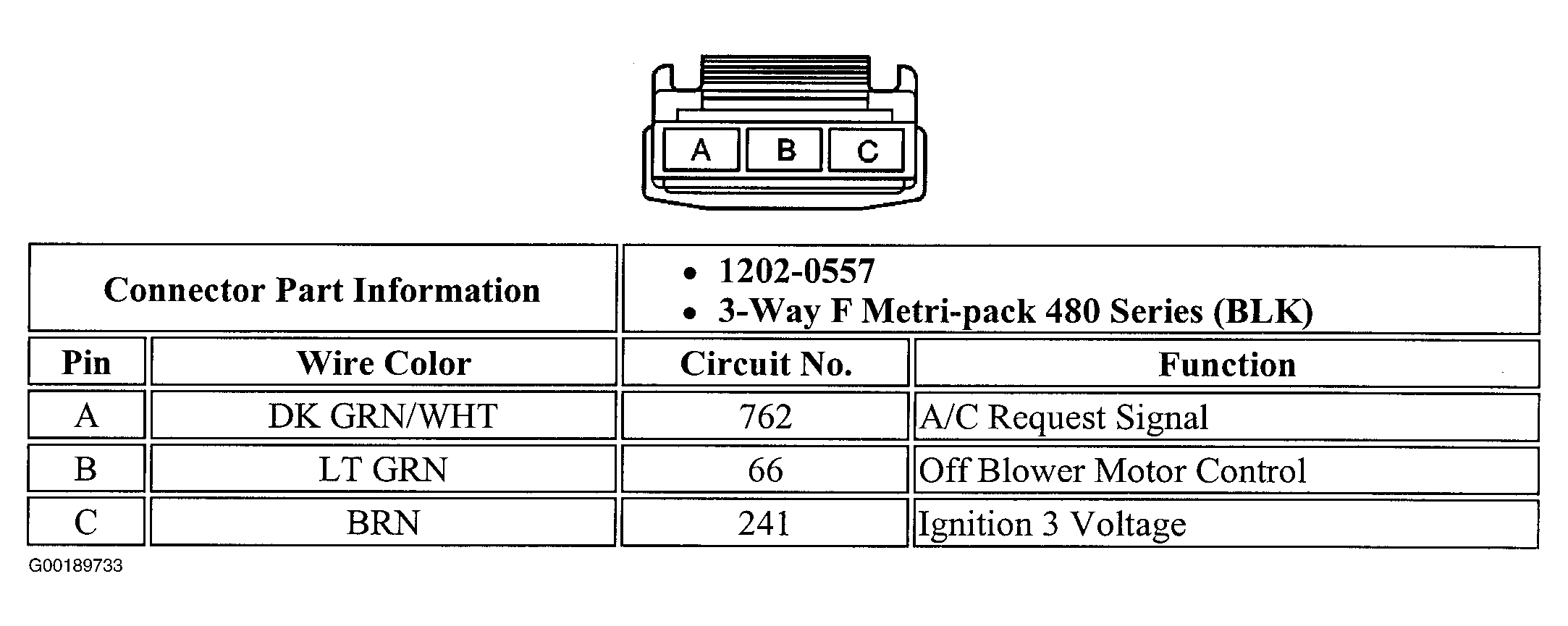

Fig 1: HVAC Control Connector End View (C2)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
