Entertainment Connector End Views
Fig 1: Amplifier - Convertible: U59 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 2: Amplifier - Convertible: U59 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

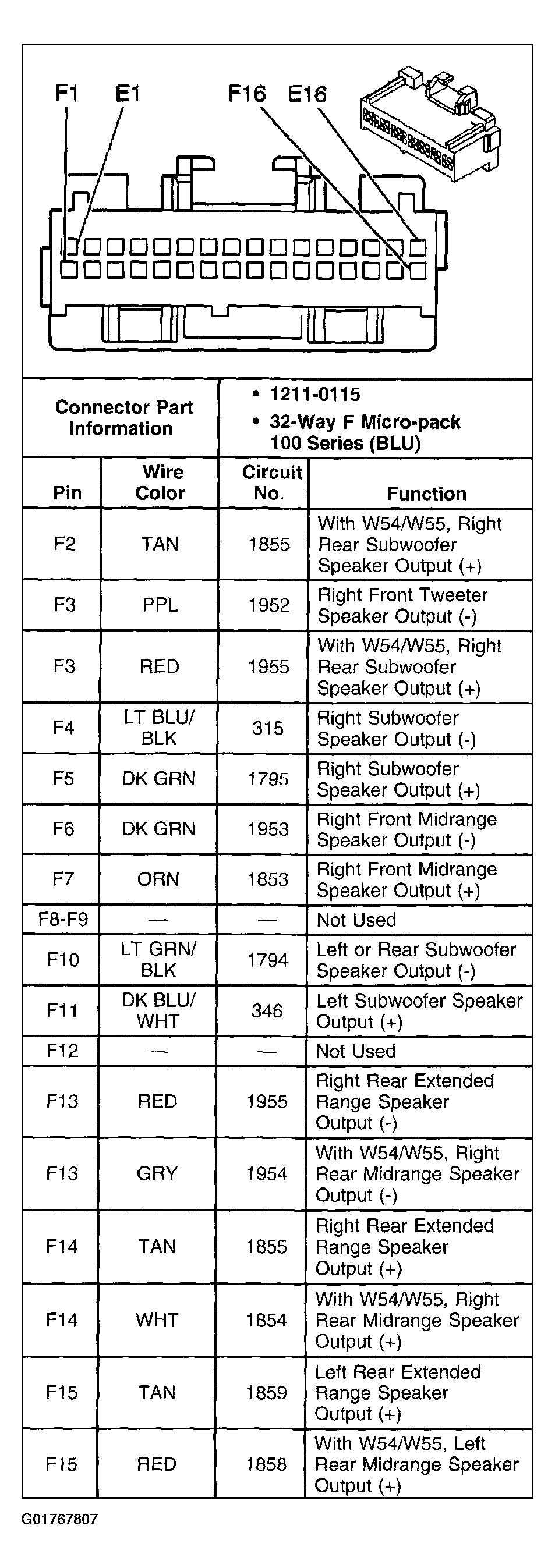

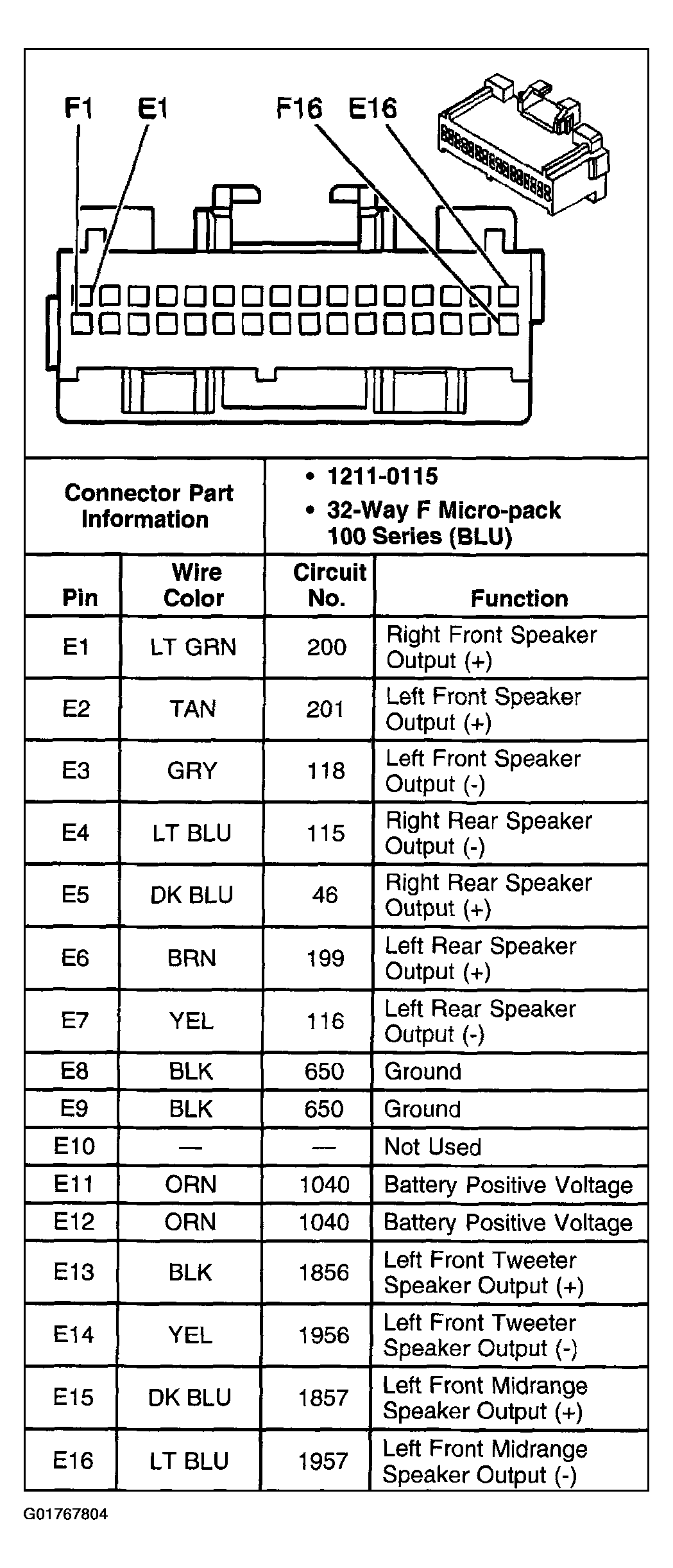

Fig 3: Amplifier - Coupe: UZ7, W54/W55 (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

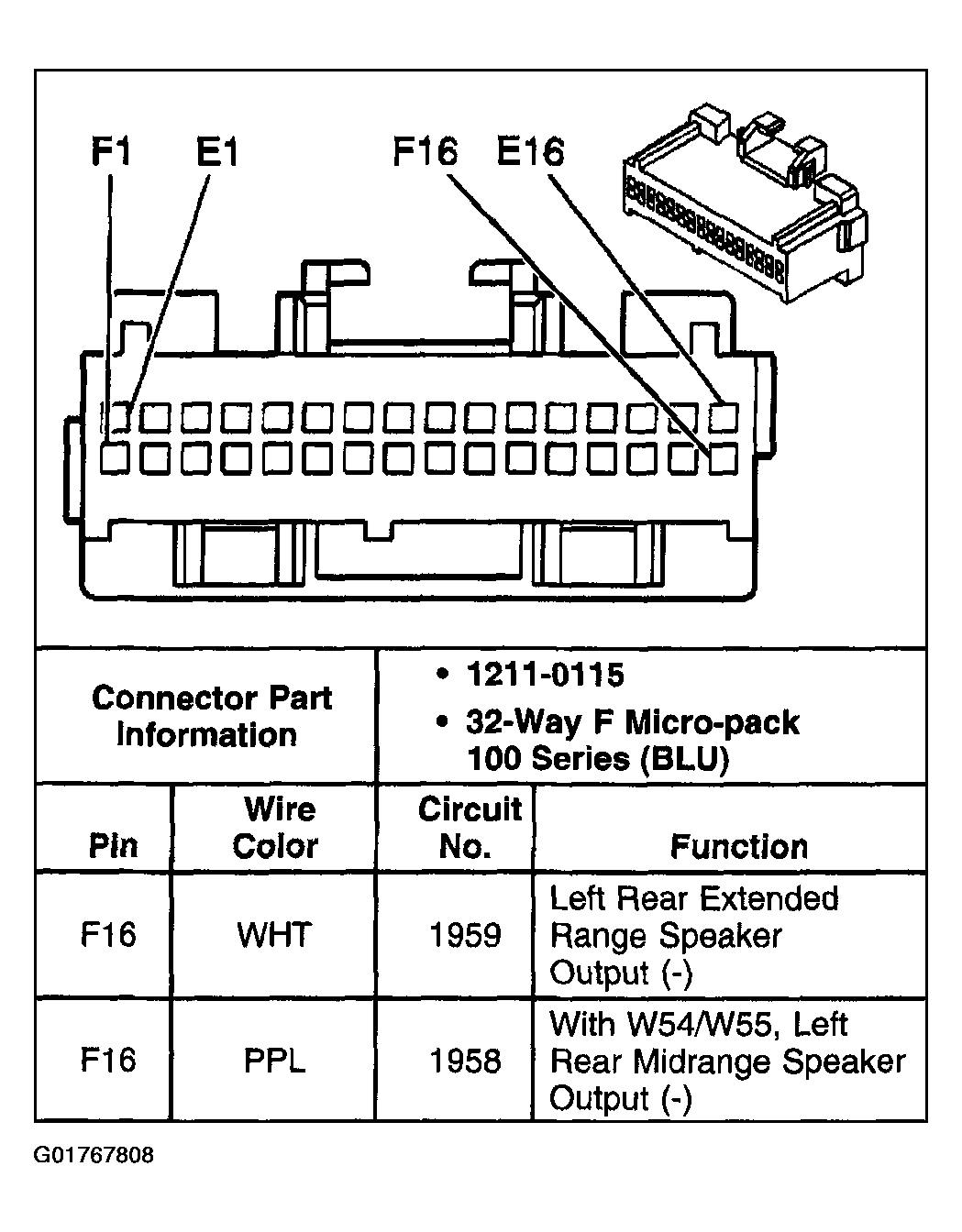

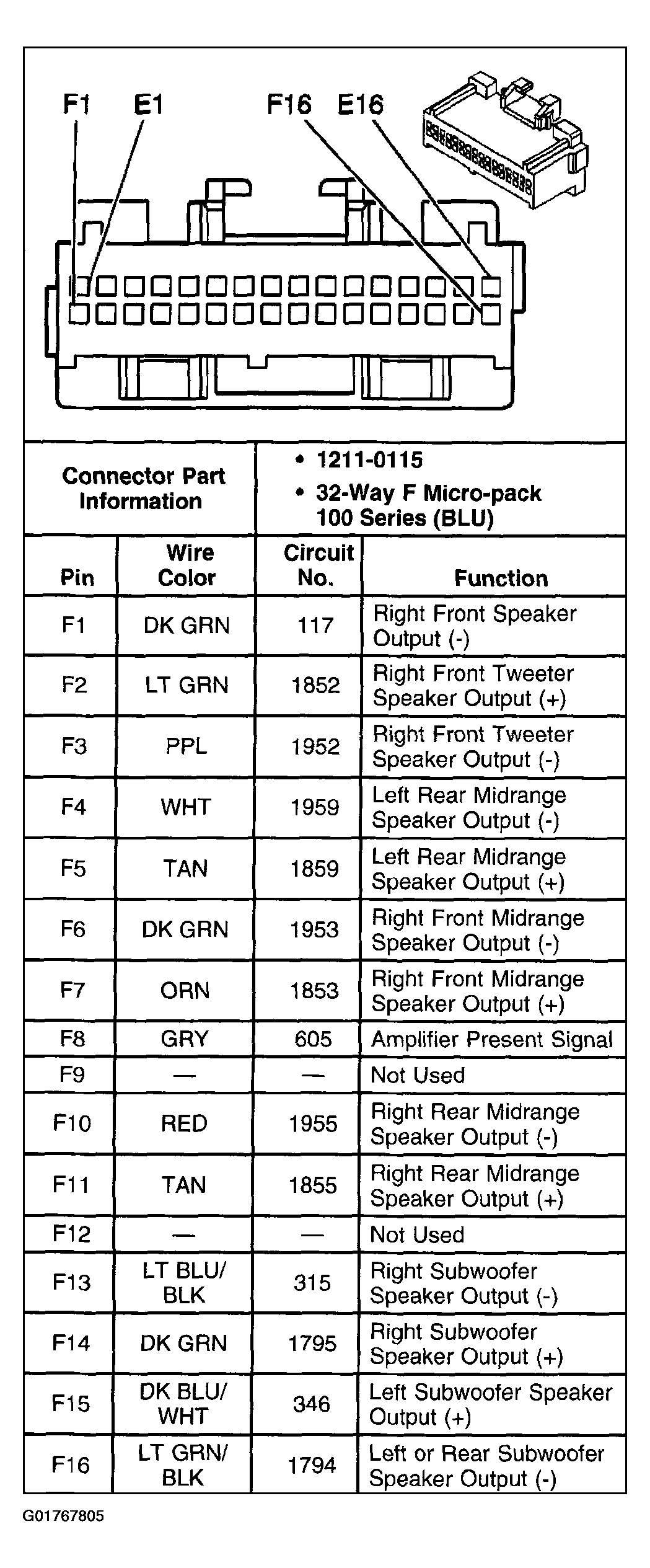

Fig 4: Amplifier - Coupe: UZ7, W54/W55 (2 Of 3)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Amplifier - Coupe: UZ7, W54/W55 (3 Of 3)
Courtesy of GENERAL MOTORS CORP.

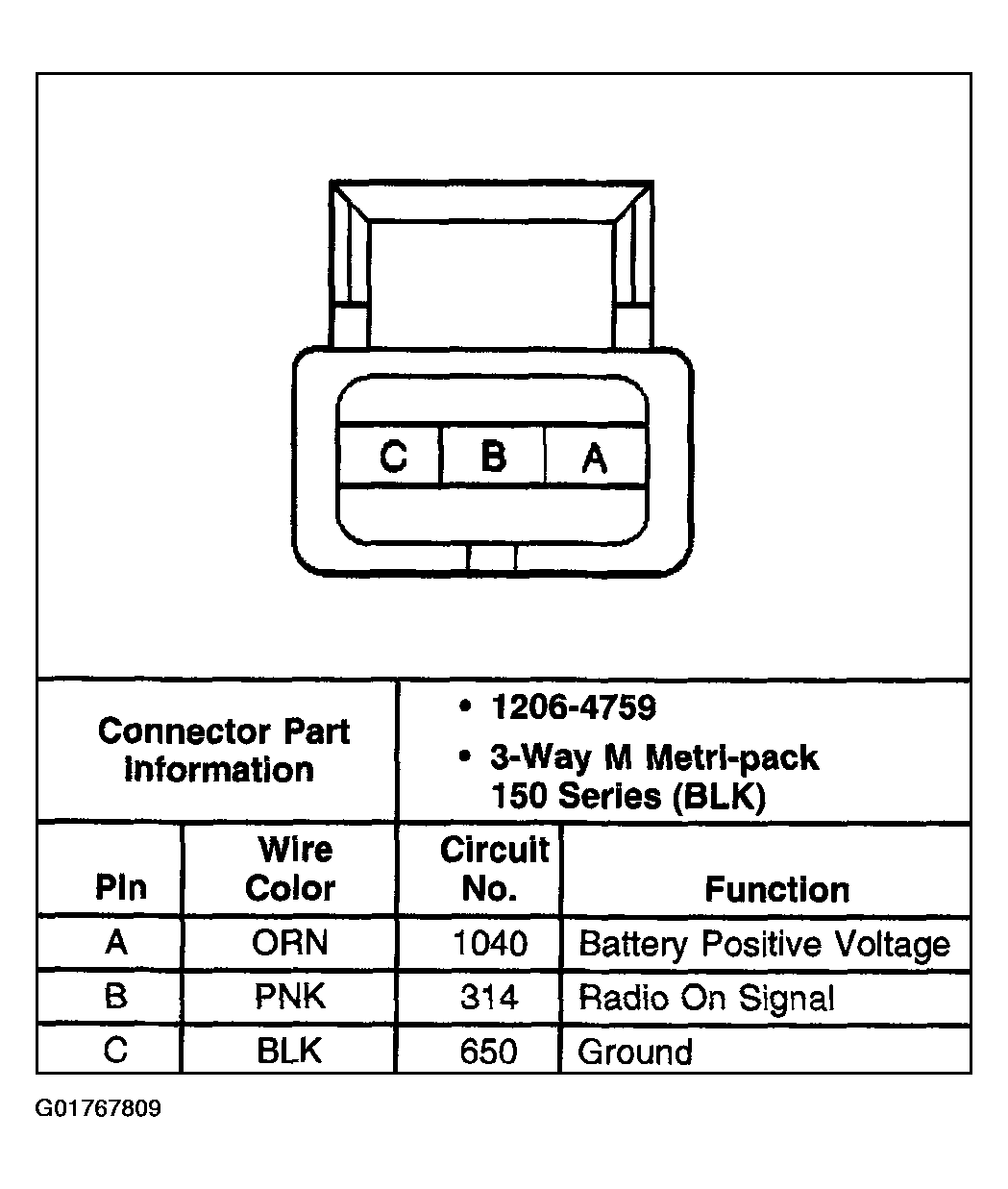

Fig 6: Antenna (Radio Power)
Courtesy of GENERAL MOTORS CORP.

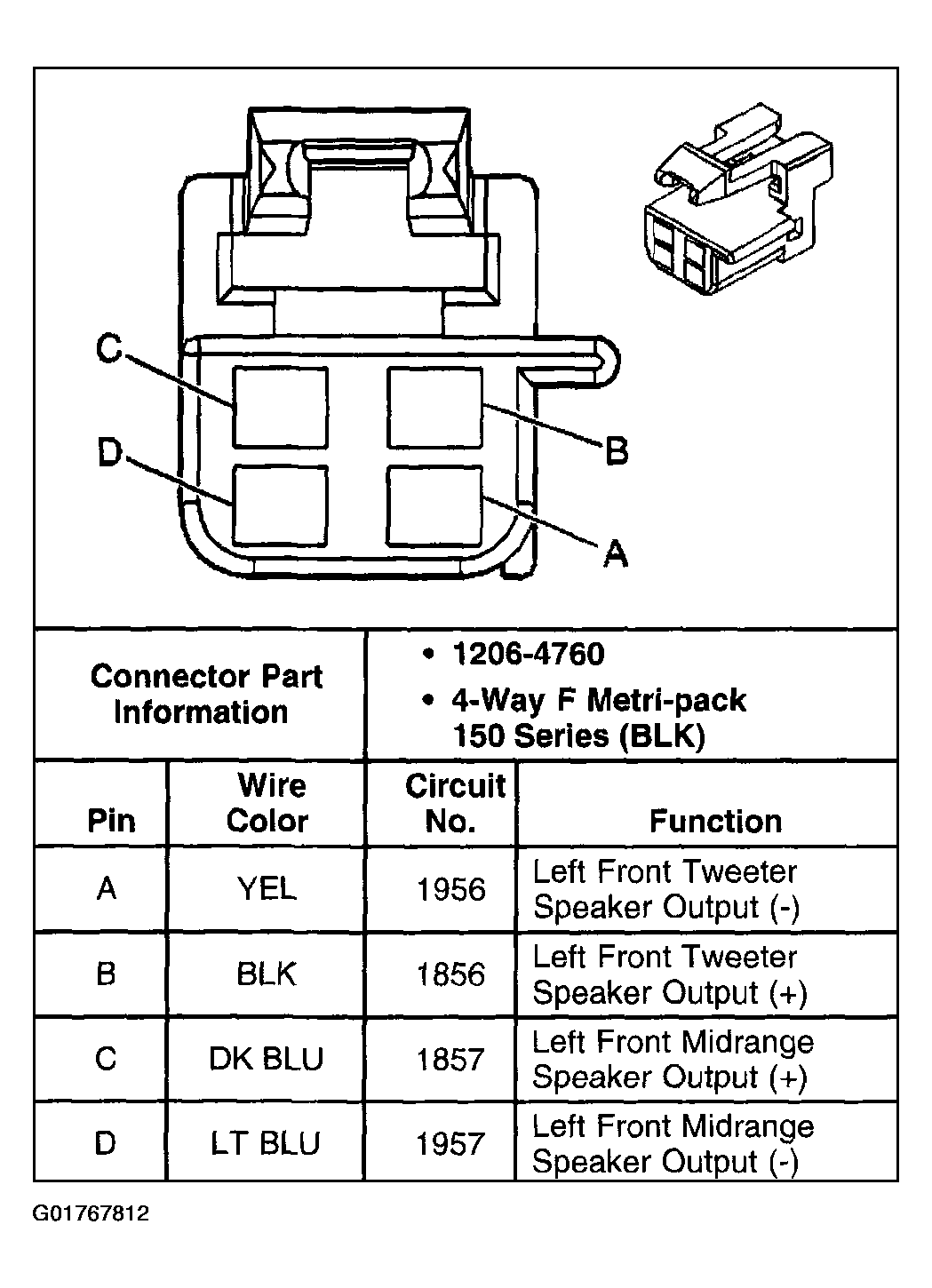

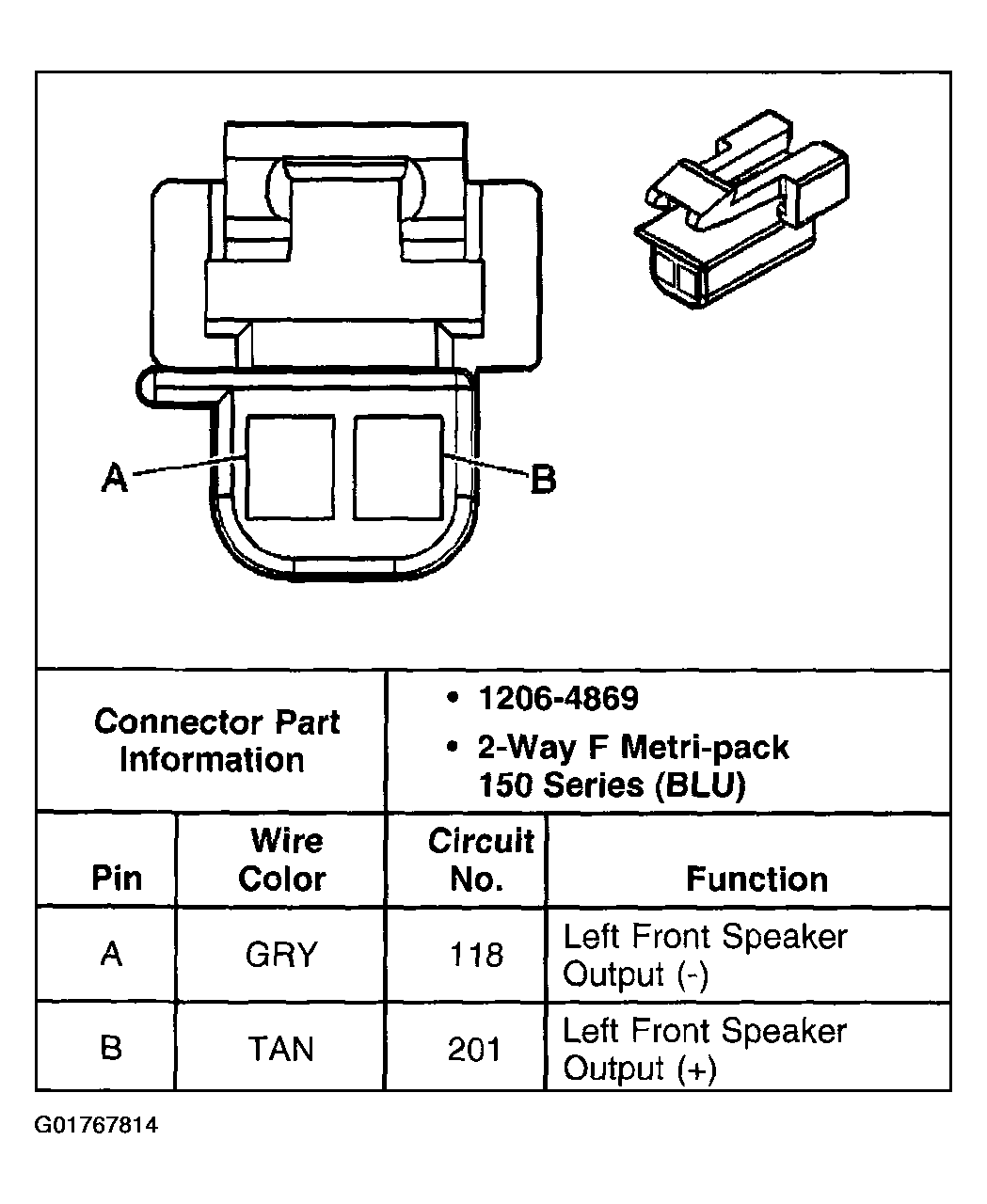

Fig 7: Front Speaker, LH (With UQO, W53) or Front Midrange Speaker, RH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.

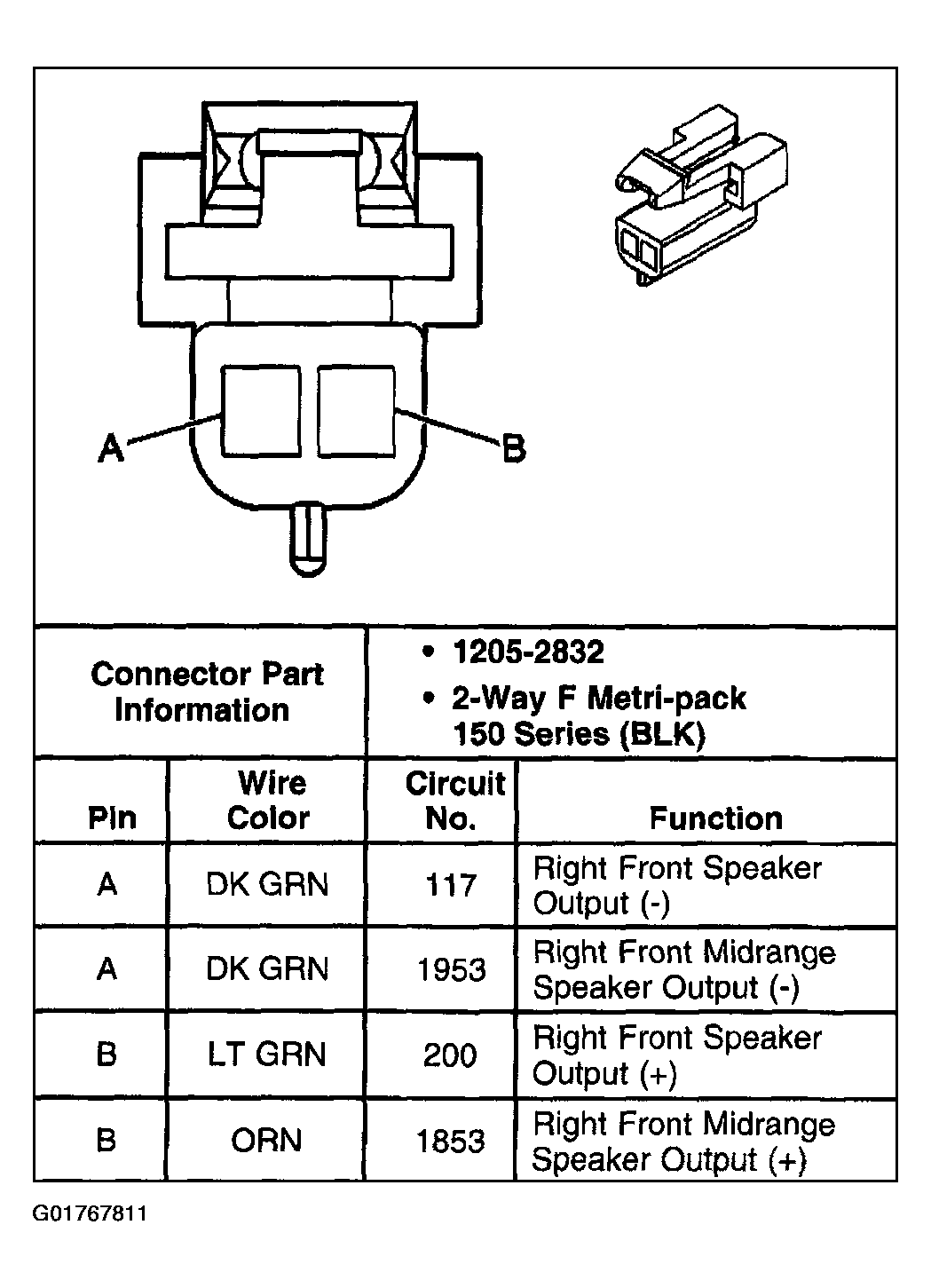

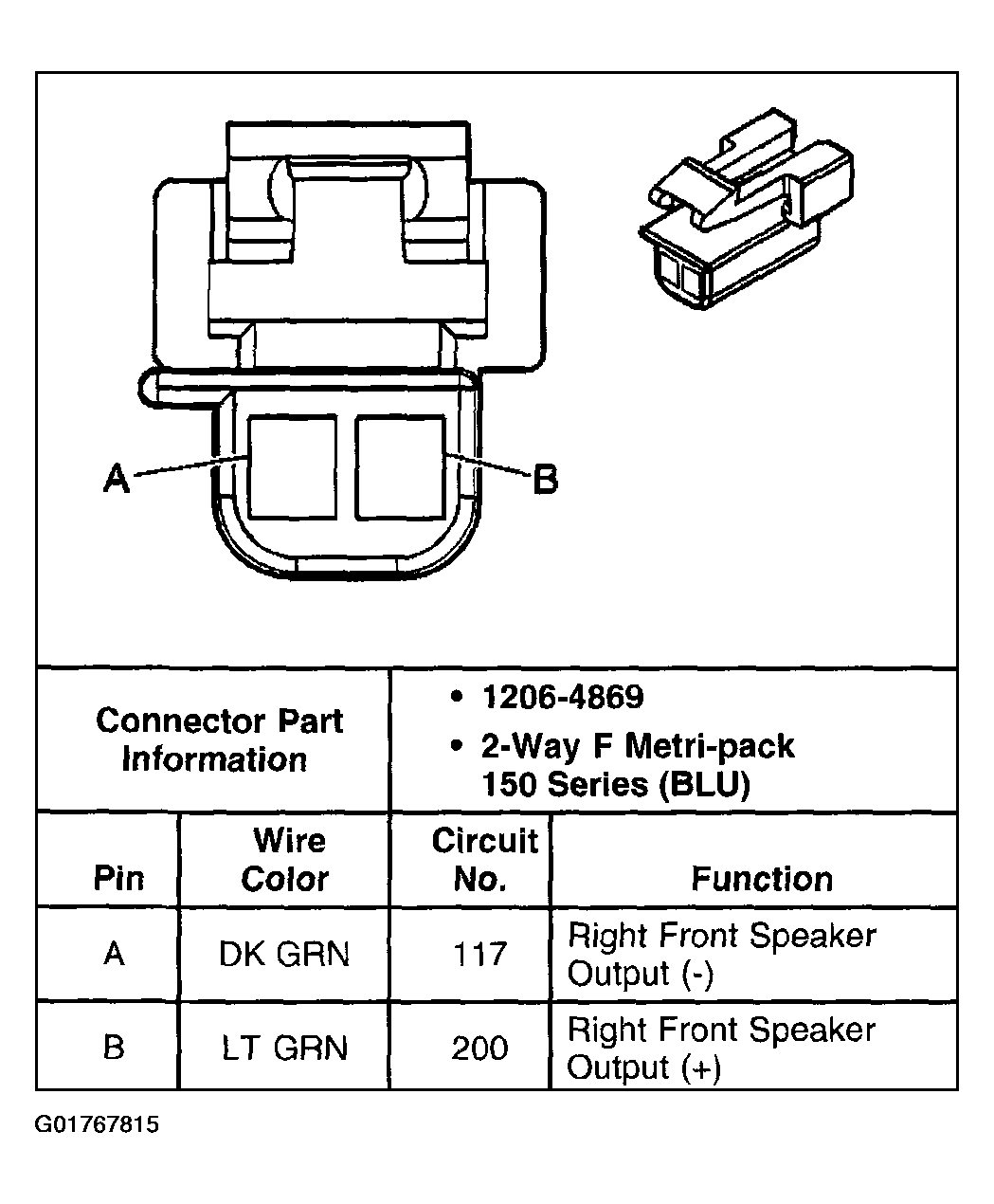

Fig 8: Front Speaker, RH (With UQO, W53) or Front Midrange Speaker, RH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.
Fig 9: Front Speaker Assembly, LH (With U59, UZ7)
Courtesy of GENERAL MOTORS CORP.
Fig 10: Front Speaker Assembly, RH (With U59, UZ7)
Courtesy of GENERAL MOTORS CORP.
Fig 11: Front Tweeter Speaker, LH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.

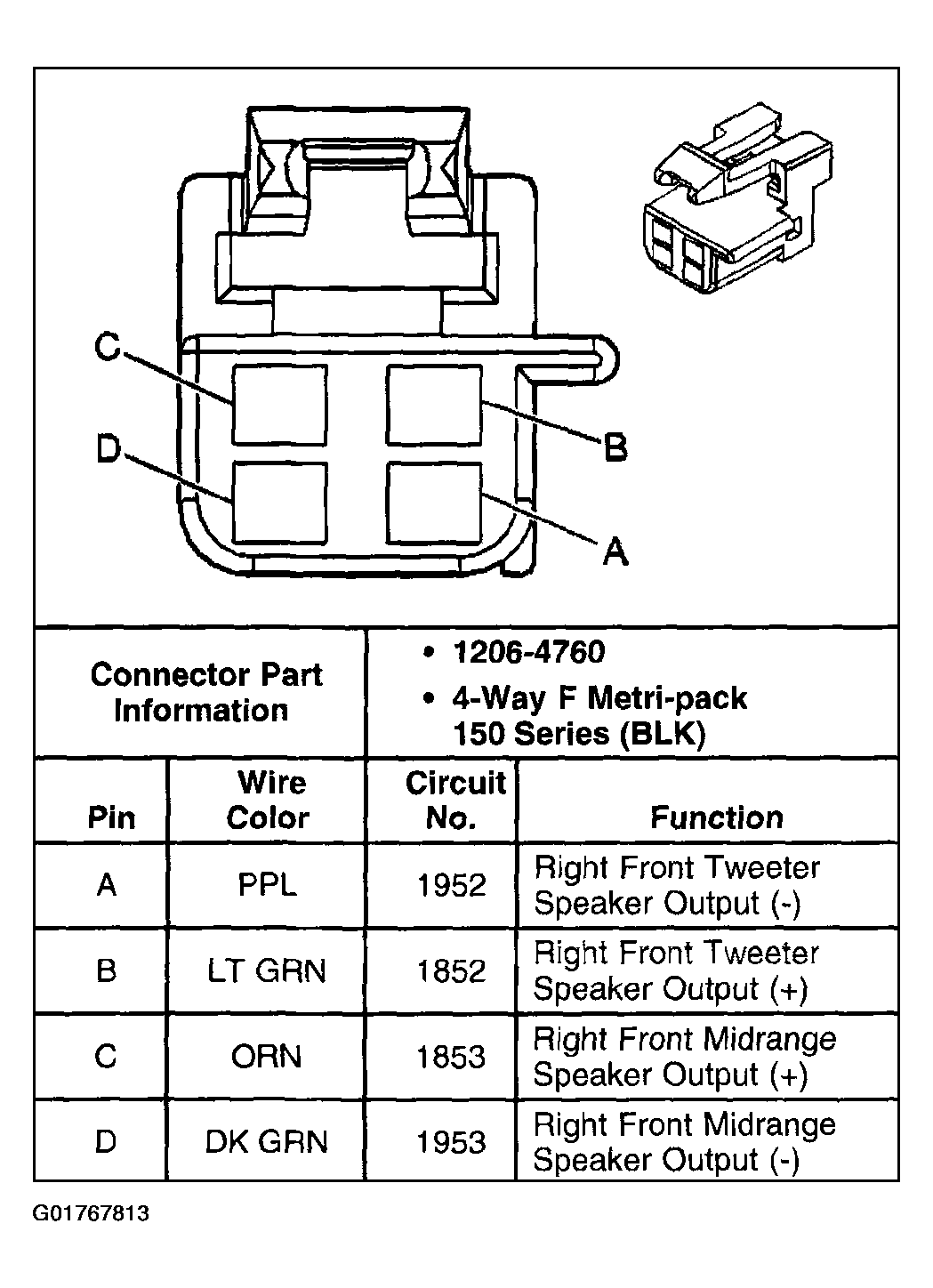

Fig 12: Front Tweeter Speaker, RH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.

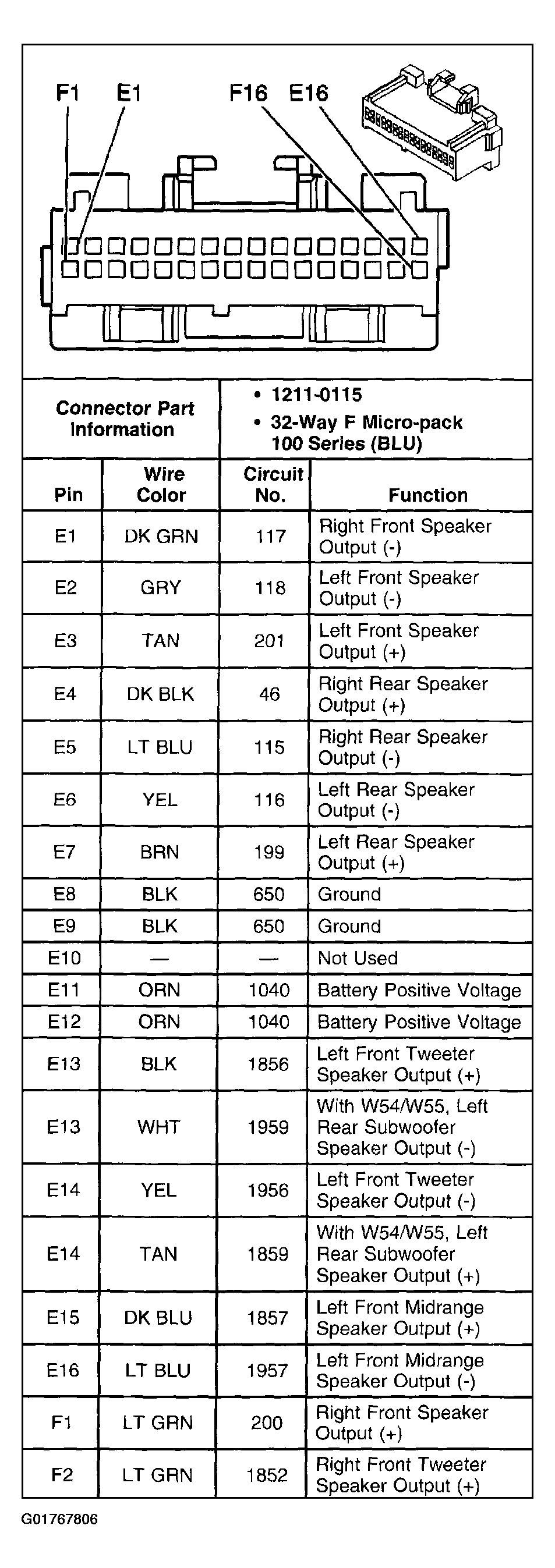

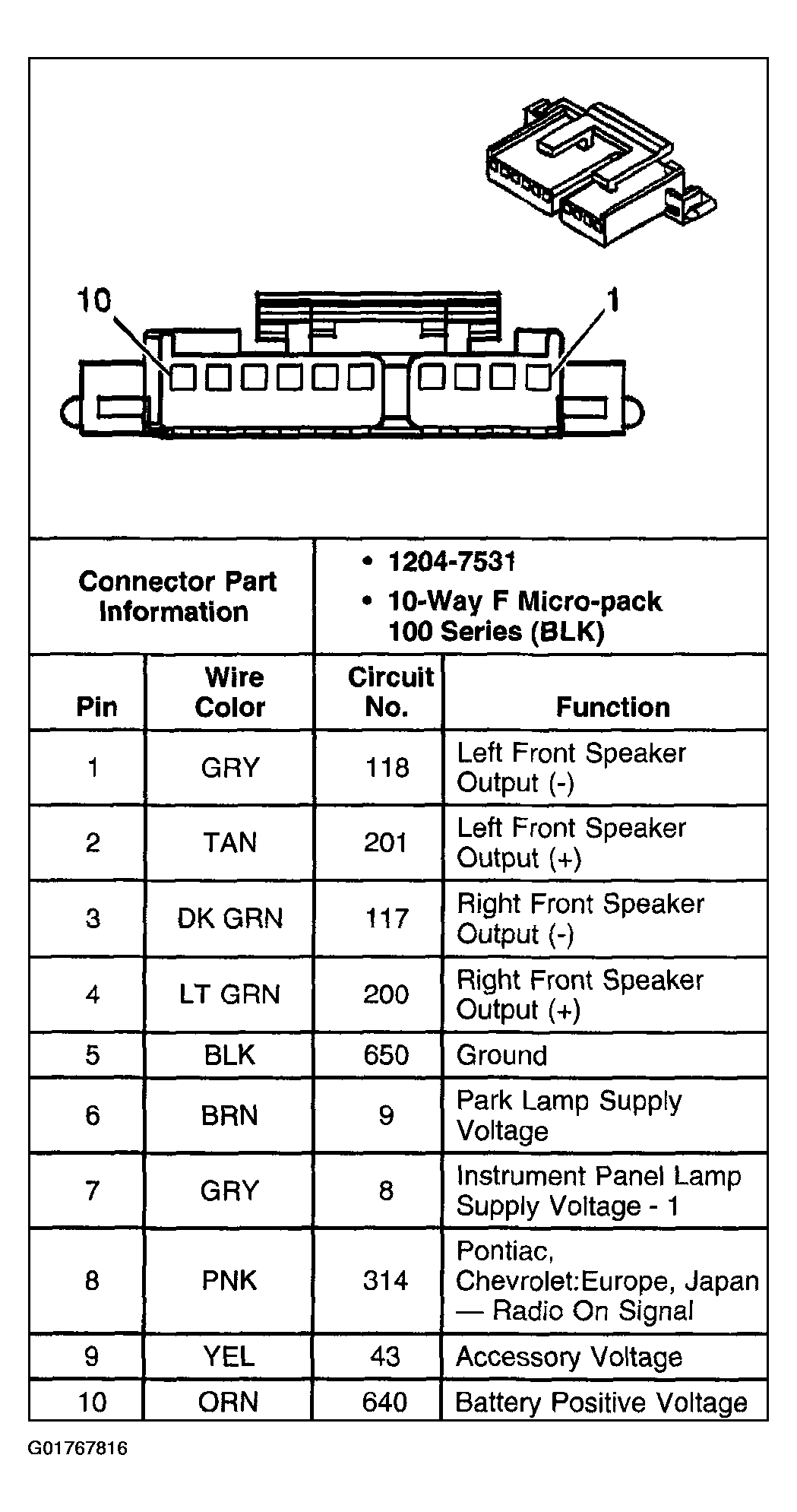

Fig 13: Radio Connector C1
Courtesy of GENERAL MOTORS CORP.

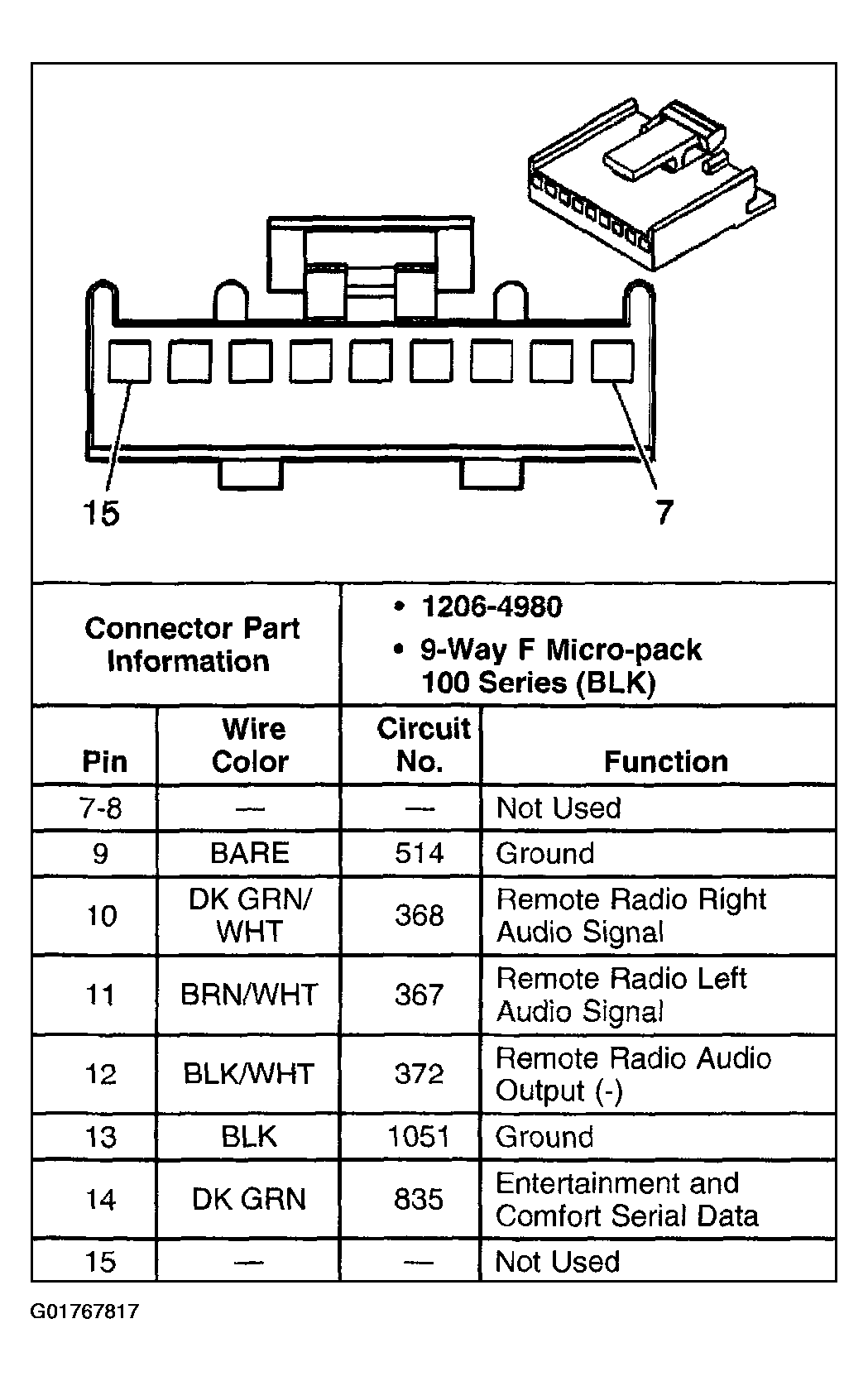

Fig 14: Radio Connector C2
Courtesy of GENERAL MOTORS CORP.

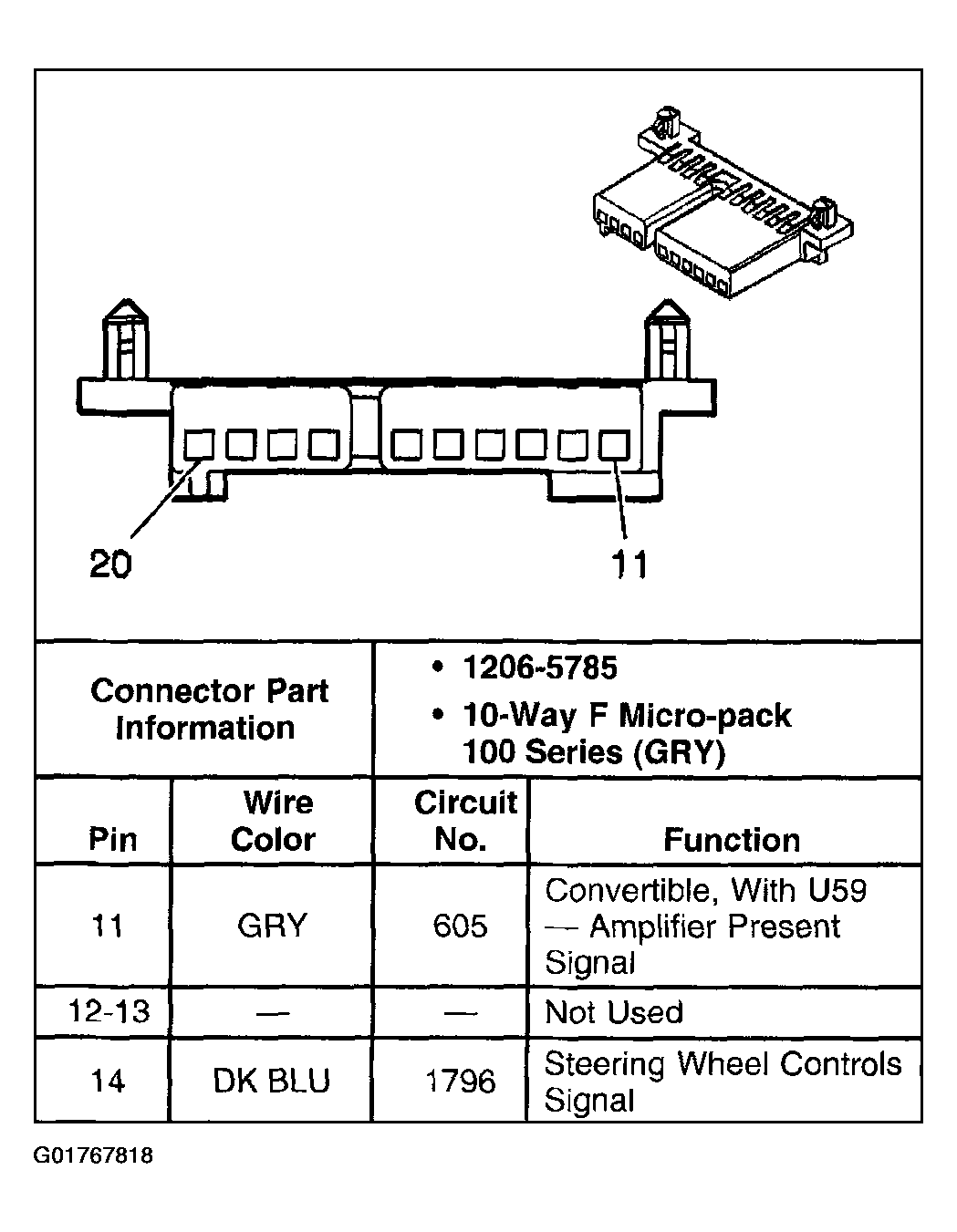

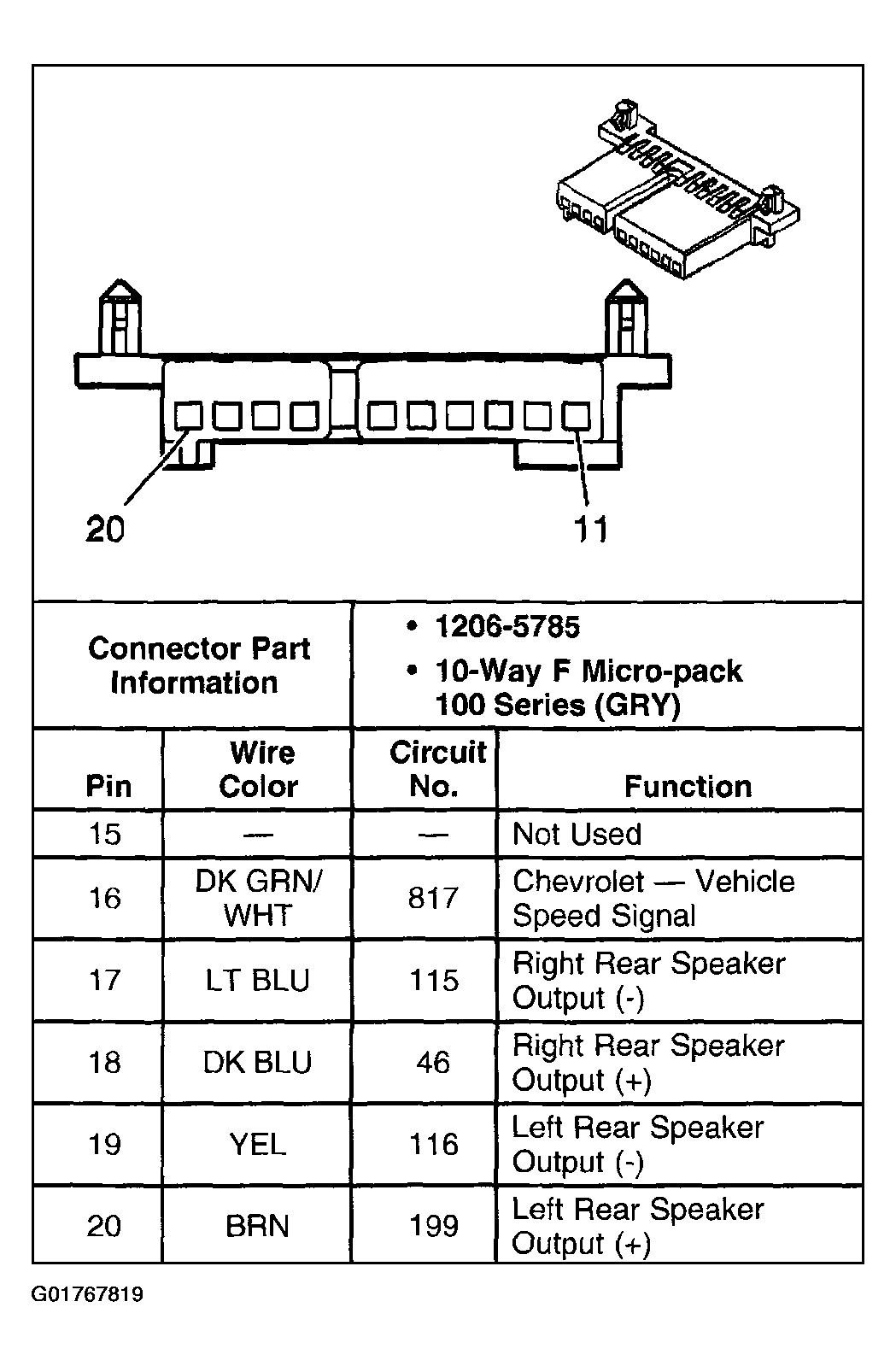

Fig 15: Radio Connector C3 (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Radio Connector C3 (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

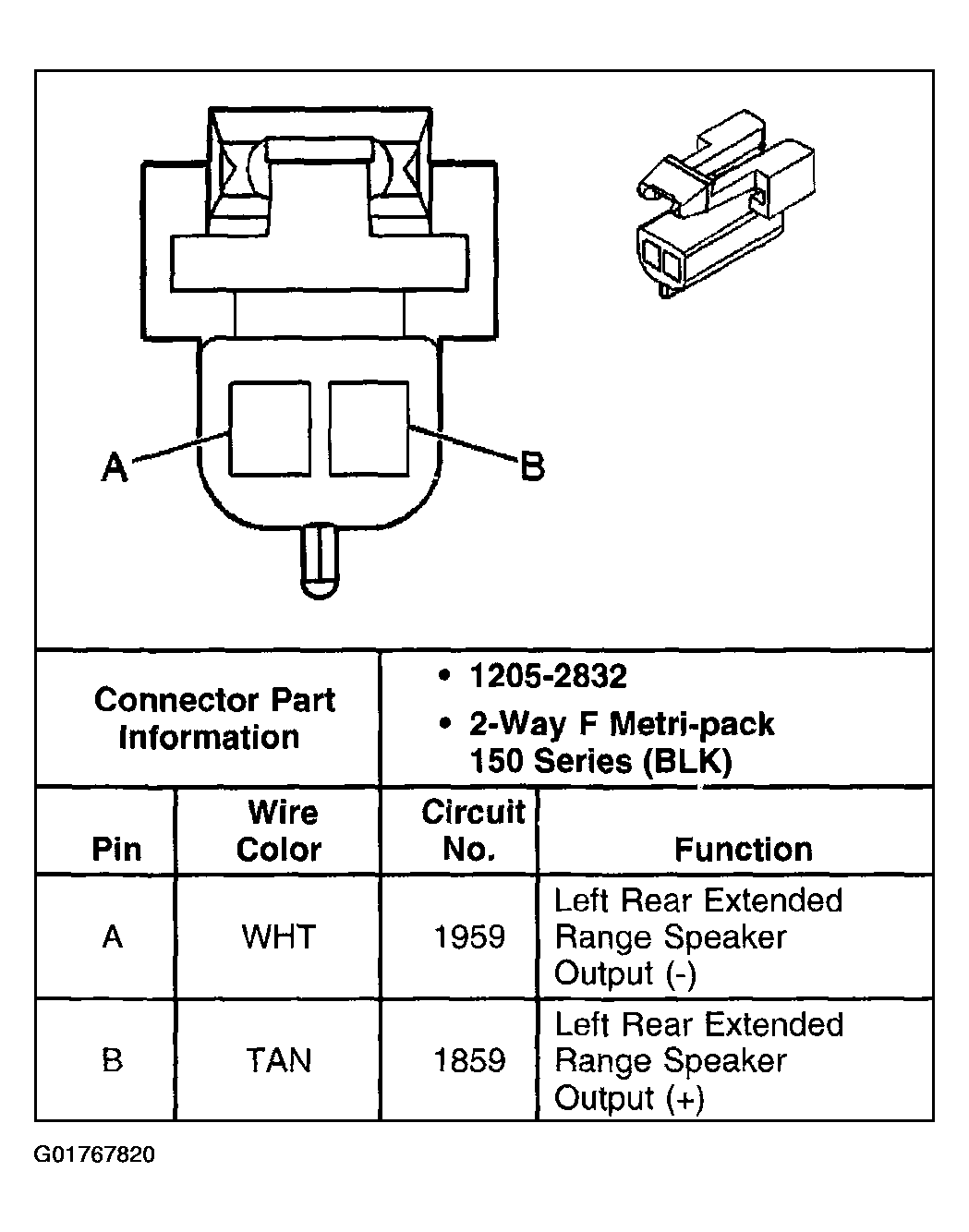

Fig 17: Rear Extended Range Speaker, LH (With UZ7)
Courtesy of GENERAL MOTORS CORP.

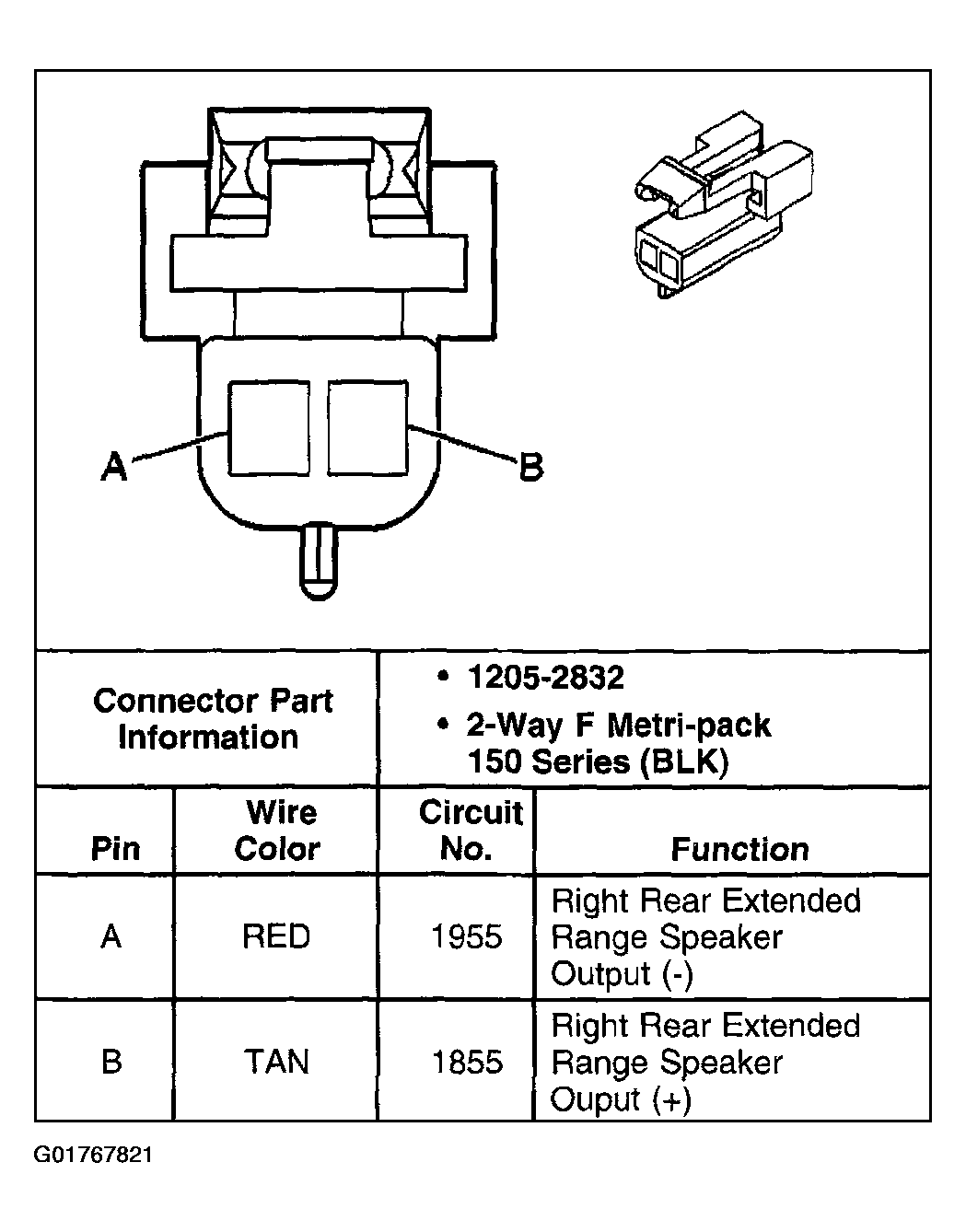

Fig 18: Rear Extended Range Speaker, RH (With UZ7)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Rear Midrange Speaker, LH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Rear Midrange Speaker, RH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.

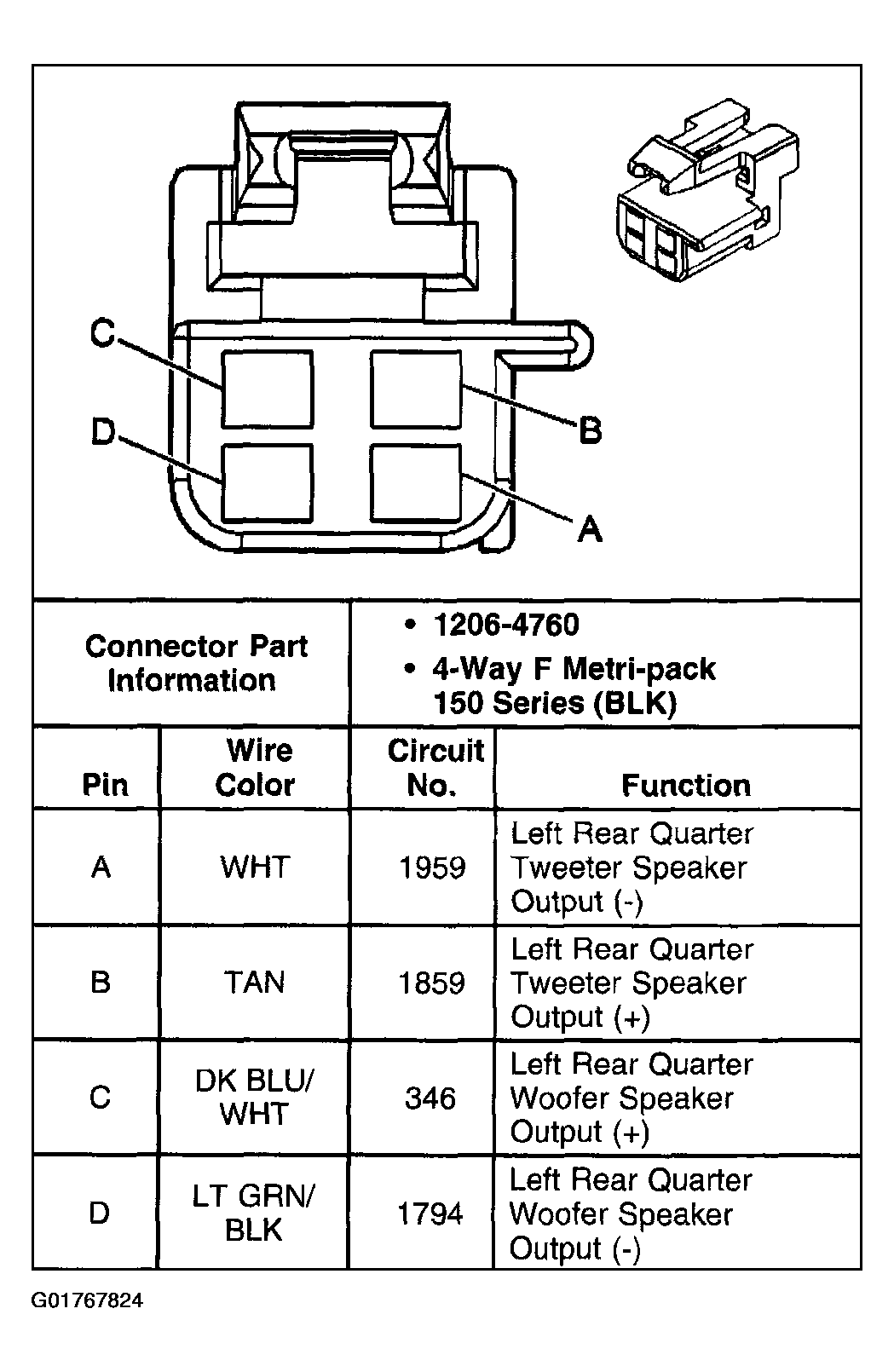

Fig 21: Rear Quarter Speaker, LH (With U59)
Courtesy of GENERAL MOTORS CORP.

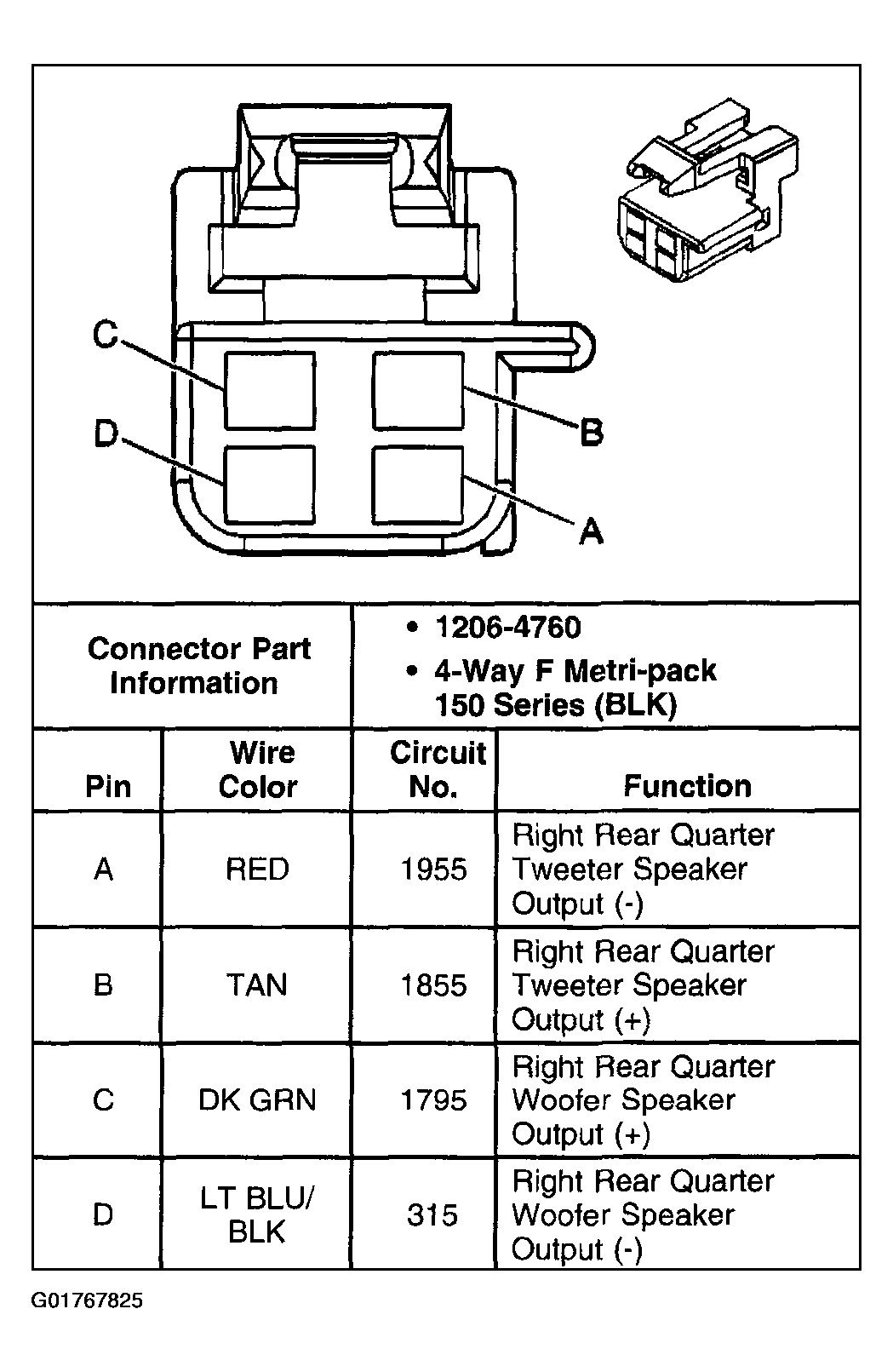

Fig 22: Rear Quarter Speaker, RH (With U59)
Courtesy of GENERAL MOTORS CORP.

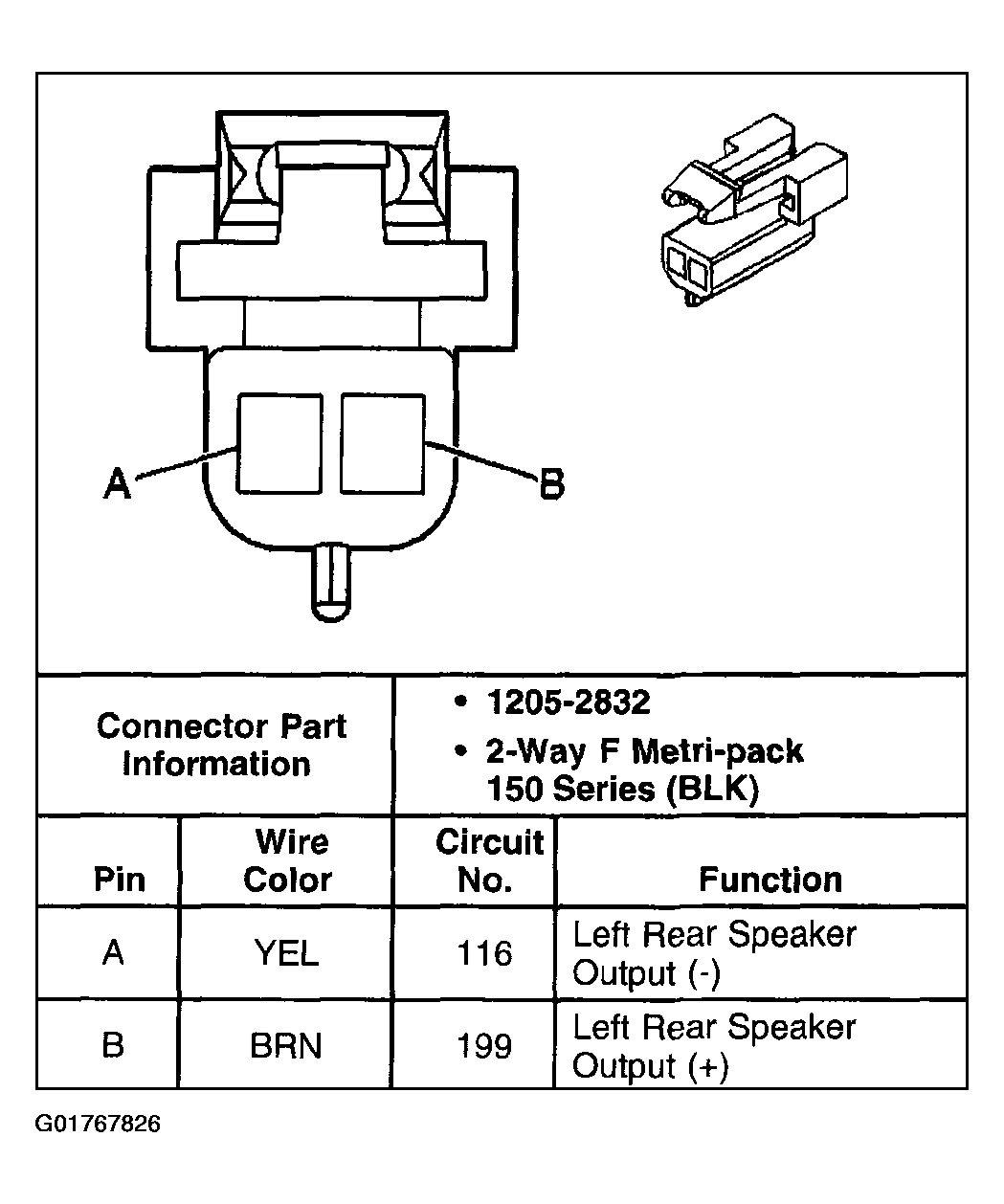

Fig 23: Rear Speaker, LH - Chevrolet and Pontiac Domestic, With UQO, W53
Courtesy of GENERAL MOTORS CORP.

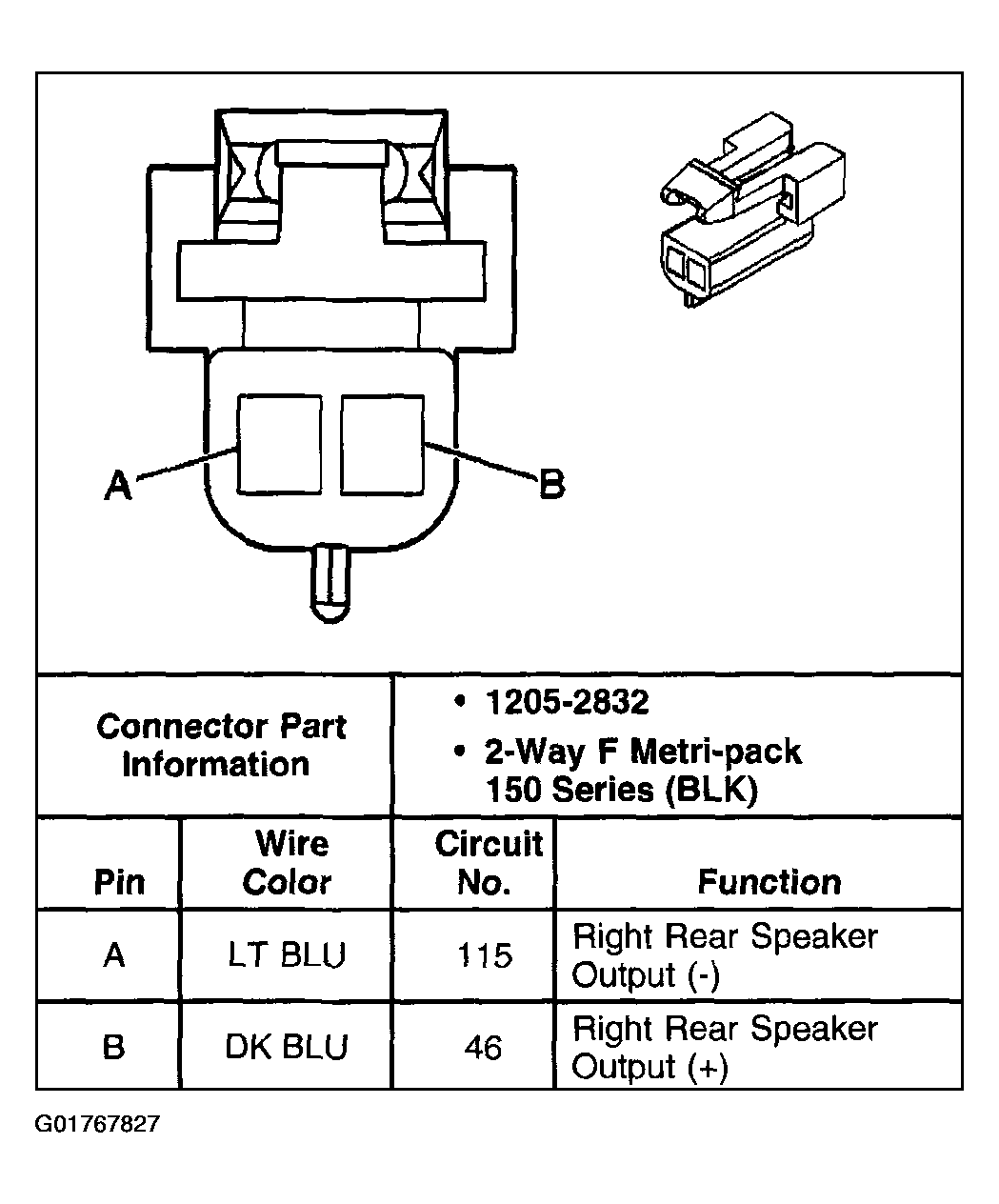

Fig 24: Rear Speaker, RH - Chevrolet and Pontiac Domestic, With UQO, W53
Courtesy of GENERAL MOTORS CORP.

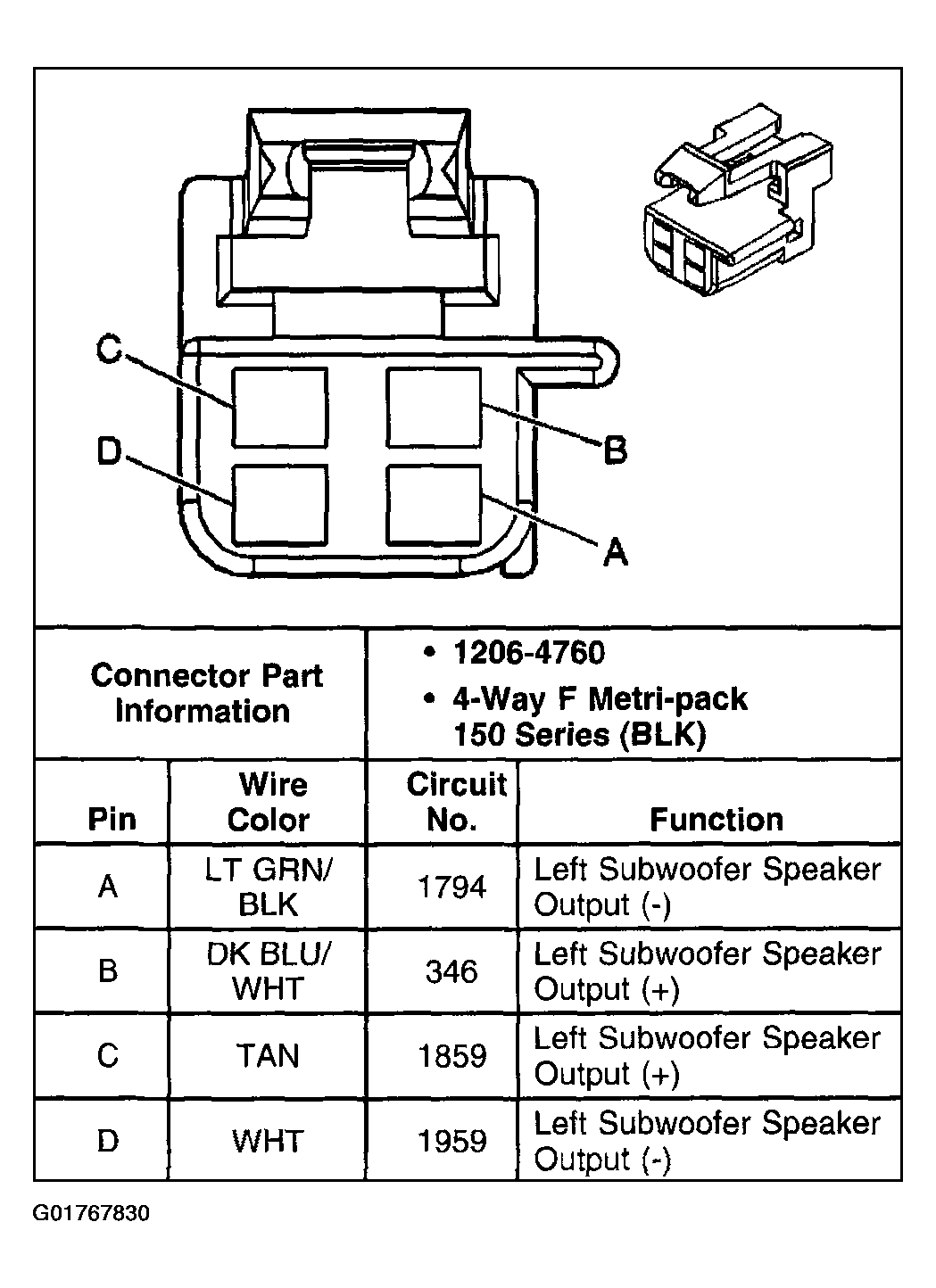

Fig 25: Rear Subwoofer Speaker, LH (With UZ7)
Courtesy of GENERAL MOTORS CORP.

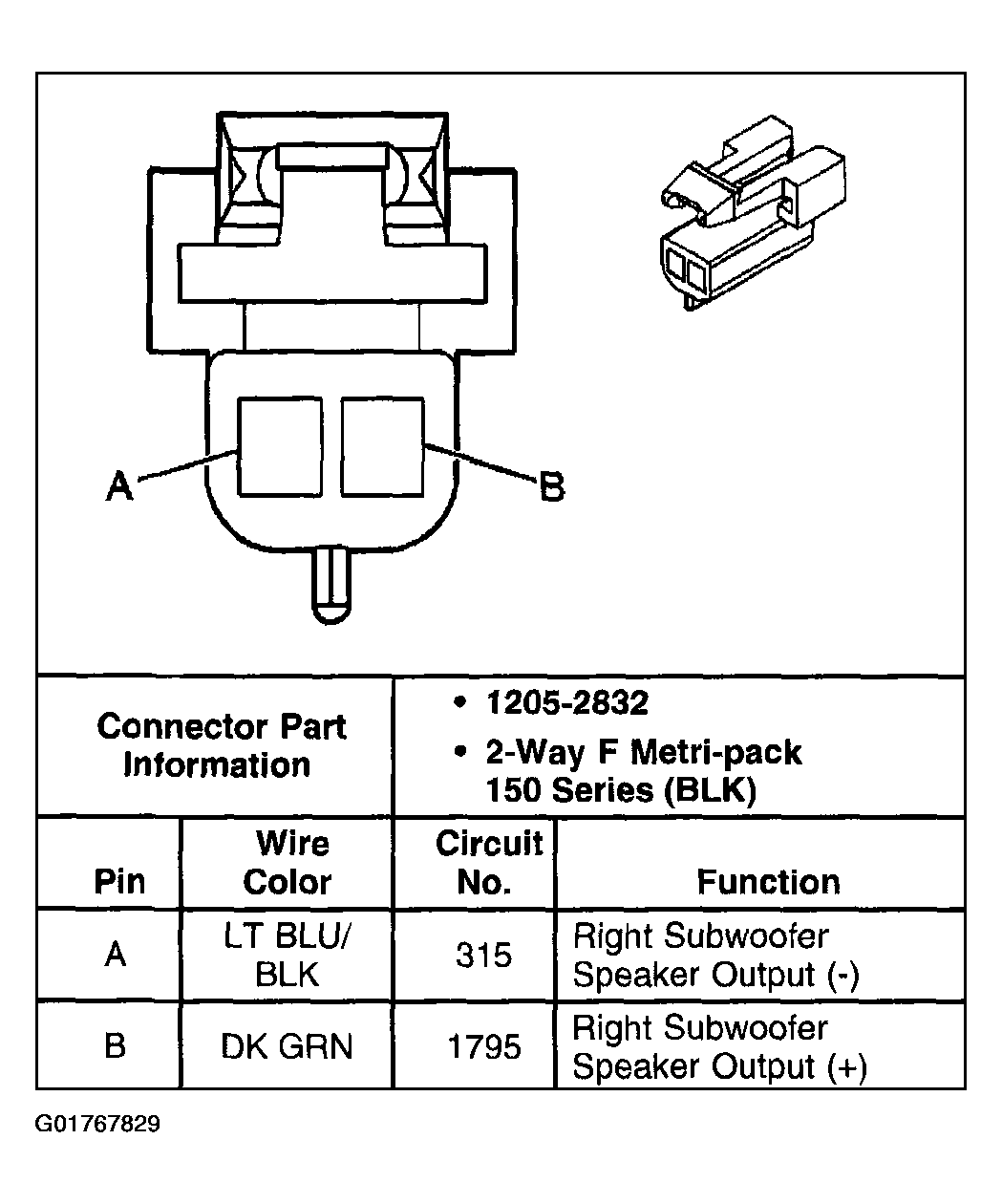

Fig 26: Rear Subwoofer Speaker, RH (With UZ7)
Courtesy of GENERAL MOTORS CORP.

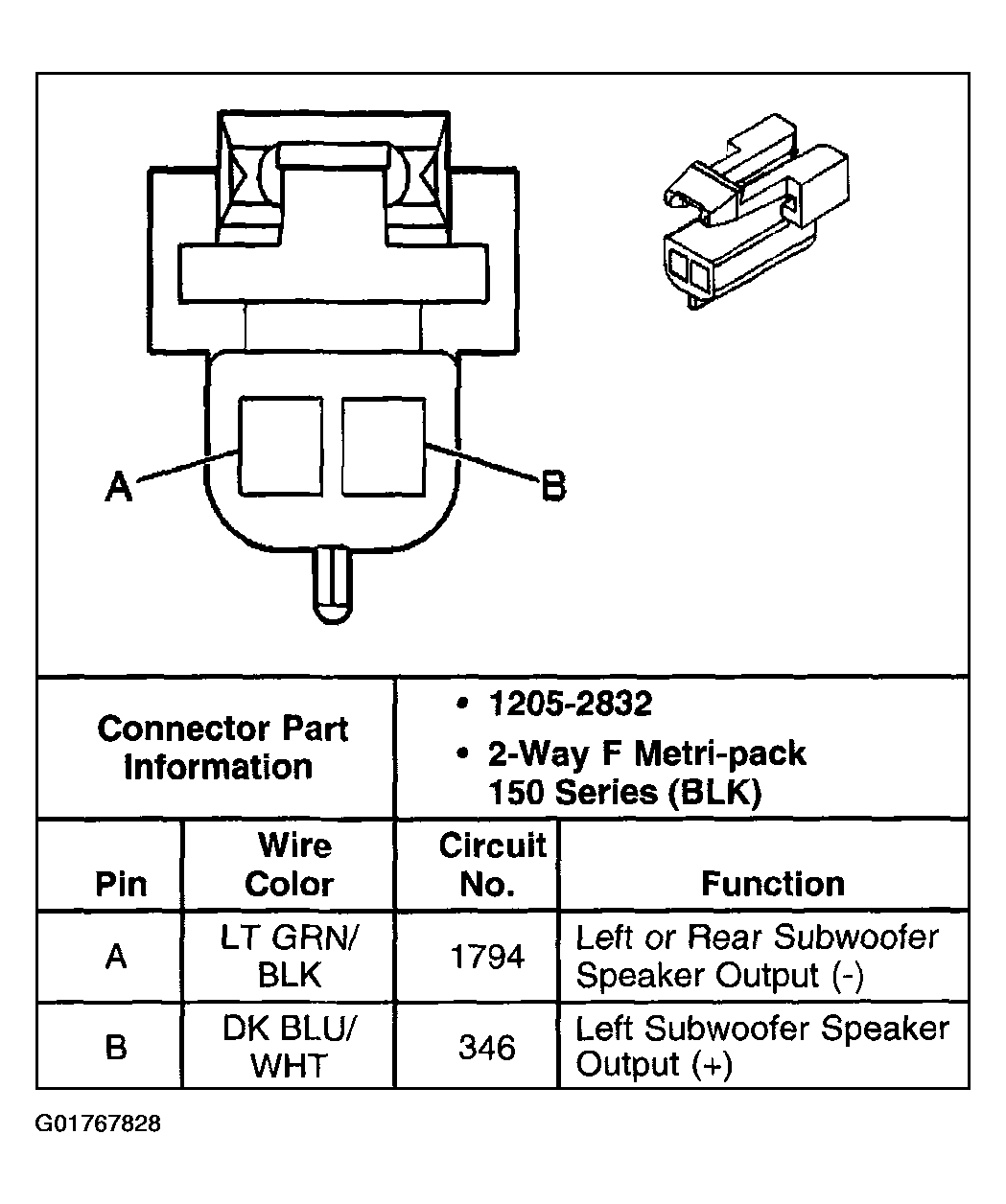

Fig 27: Rear Subwoofer Speaker, LH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.

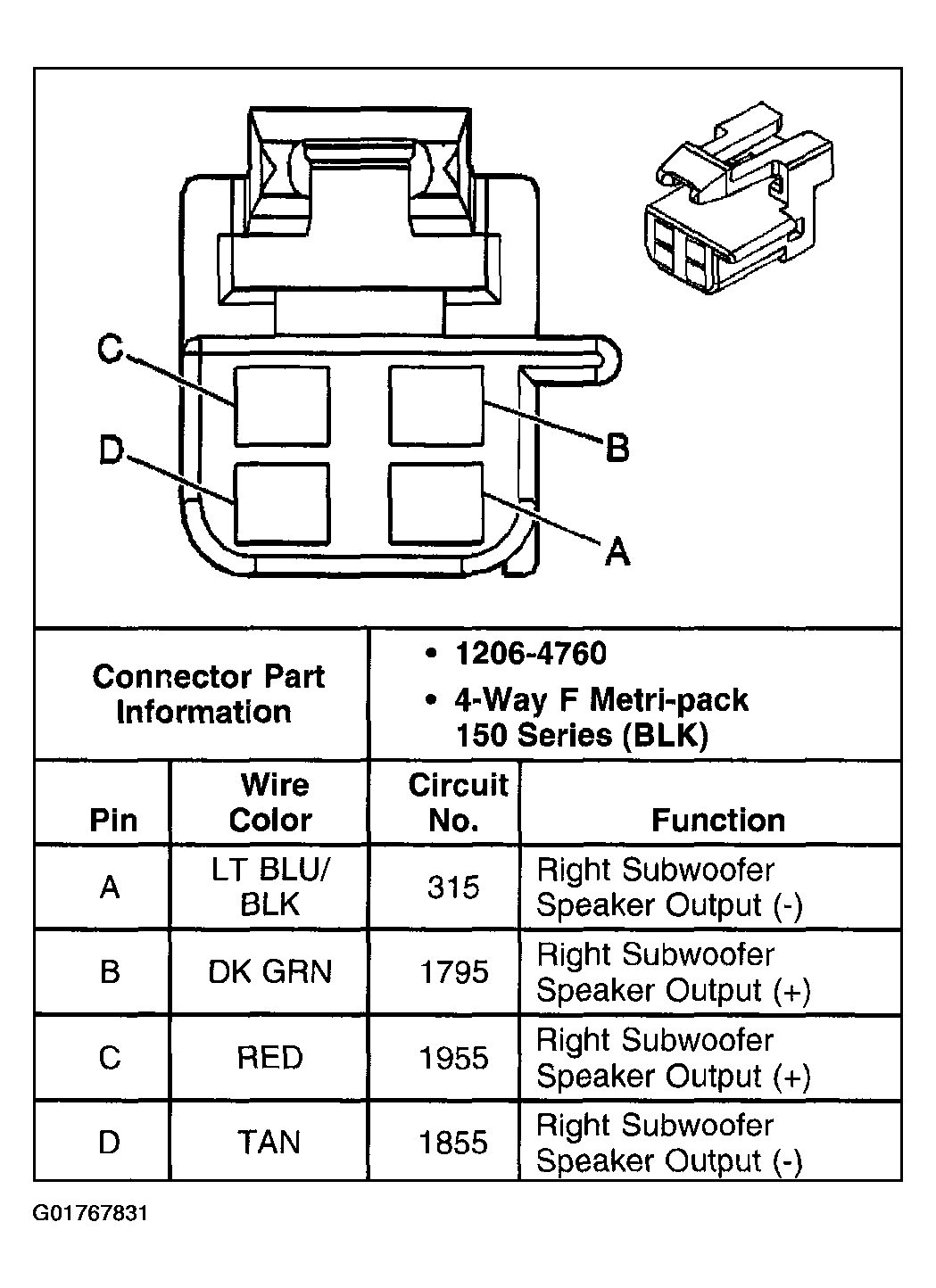

Fig 28: Rear Subwoofer Speaker, RH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.

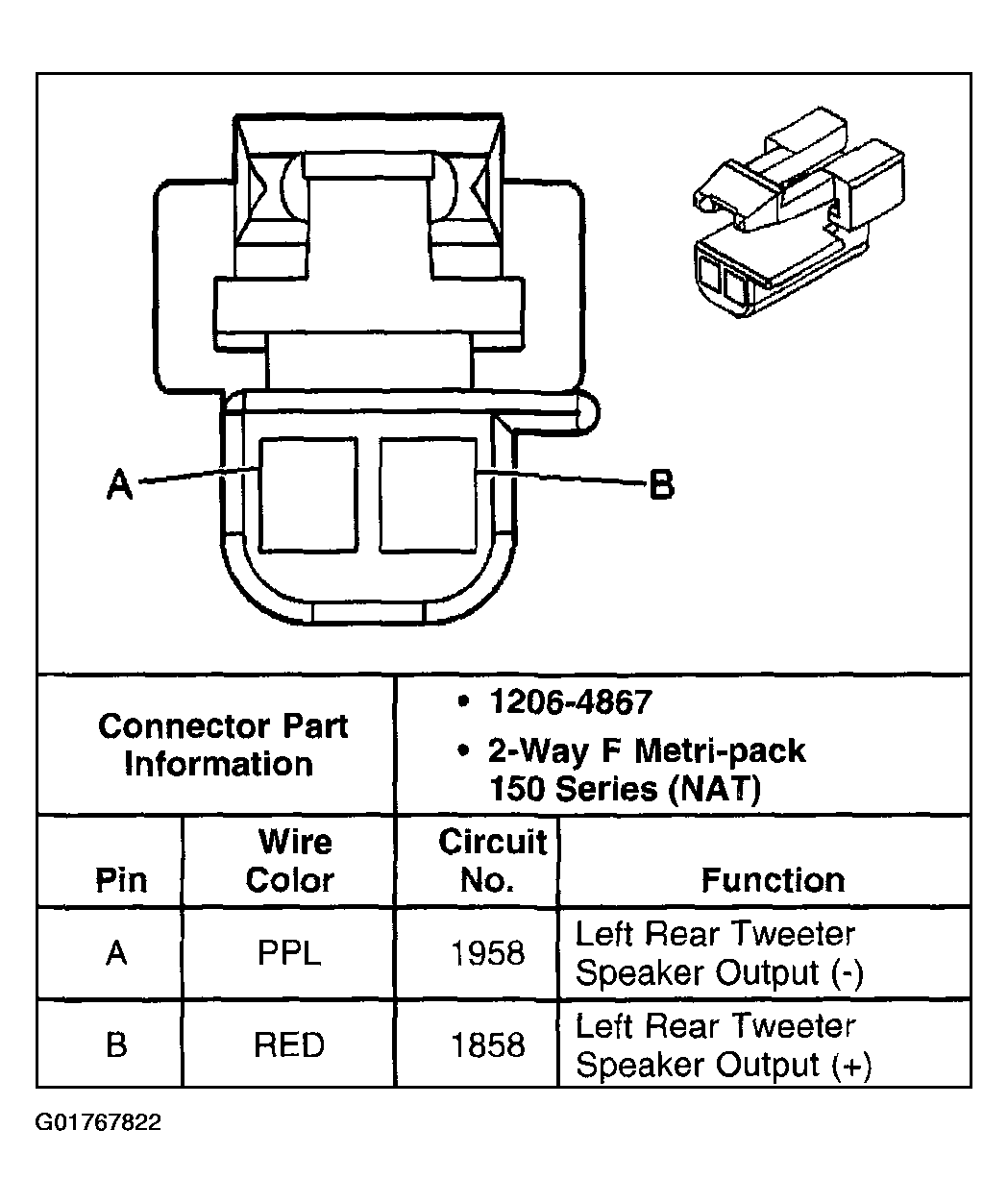

Fig 29: Rear Tweeter Speaker, LH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.

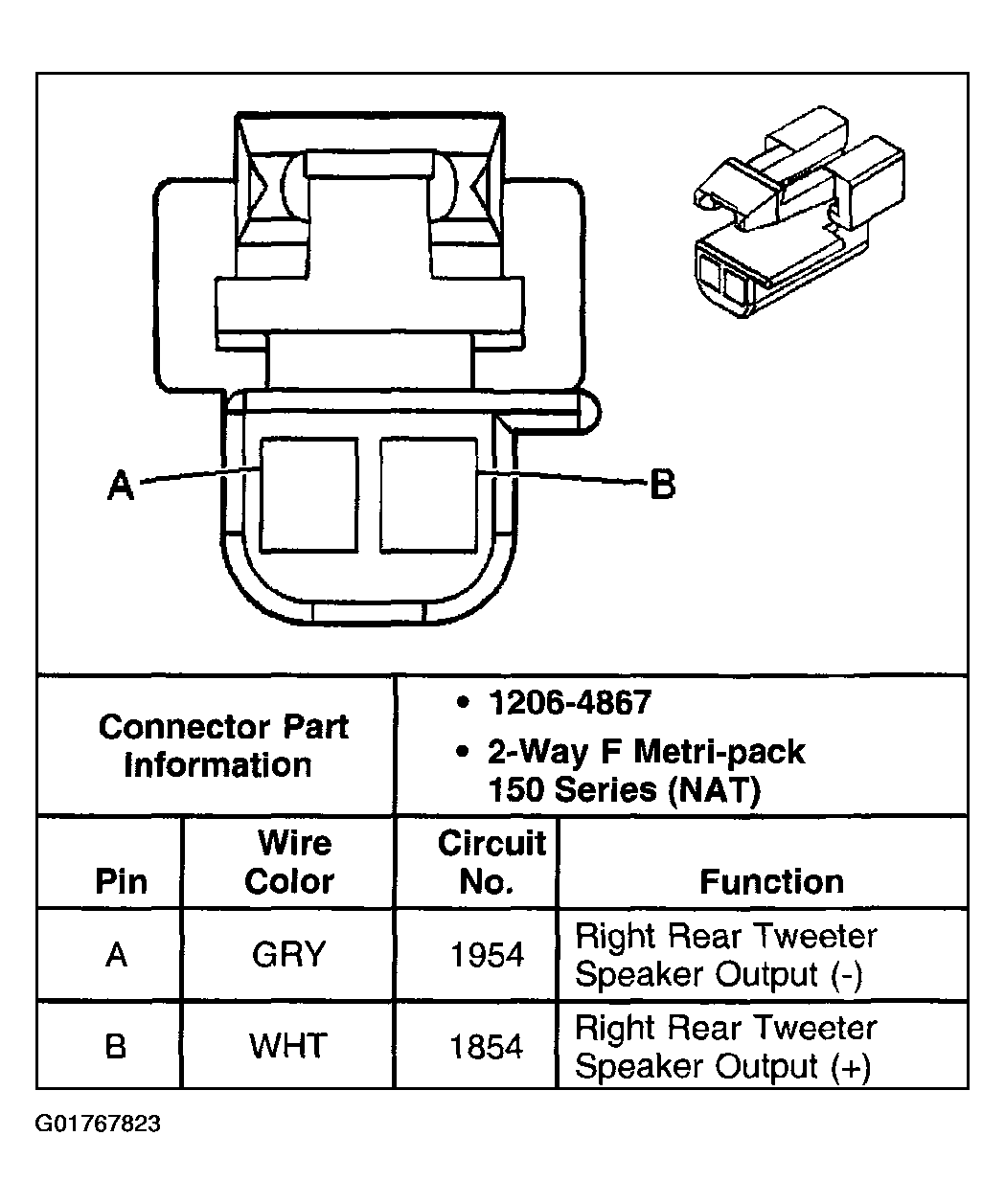

Fig 30: Rear Tweeter Speaker, RH (With W54/W55)
Courtesy of GENERAL MOTORS CORP.
Fig 31: Remote Compact Disc Player
Courtesy of GENERAL MOTORS CORP.
