Removal Procedure

  1. Remove the mirror bezel screw. (2)
    Fig 1: Removing Mirror Bezel Screw
    G01768577Courtesy of GENERAL MOTORS CORP.
  2. Remove the mirror bezel (3).
  3. Remove the remote handle from the bezel, if equipped.
  4. Remove the door trim panel. Refer to TRIM PANEL REPLACEMENT - Door .
  5. Disconnect the electrical connector, if equipped.
    1. 5.1. Pull the rosebud clip on the electrical connector from the mirror.
    2. 5.2. Disconnect the electrical connector.
  6. Remove the outside rearview mirror nuts (1) from the mirror assembly (2).
  7. Remove the outside rearview mirror (2).

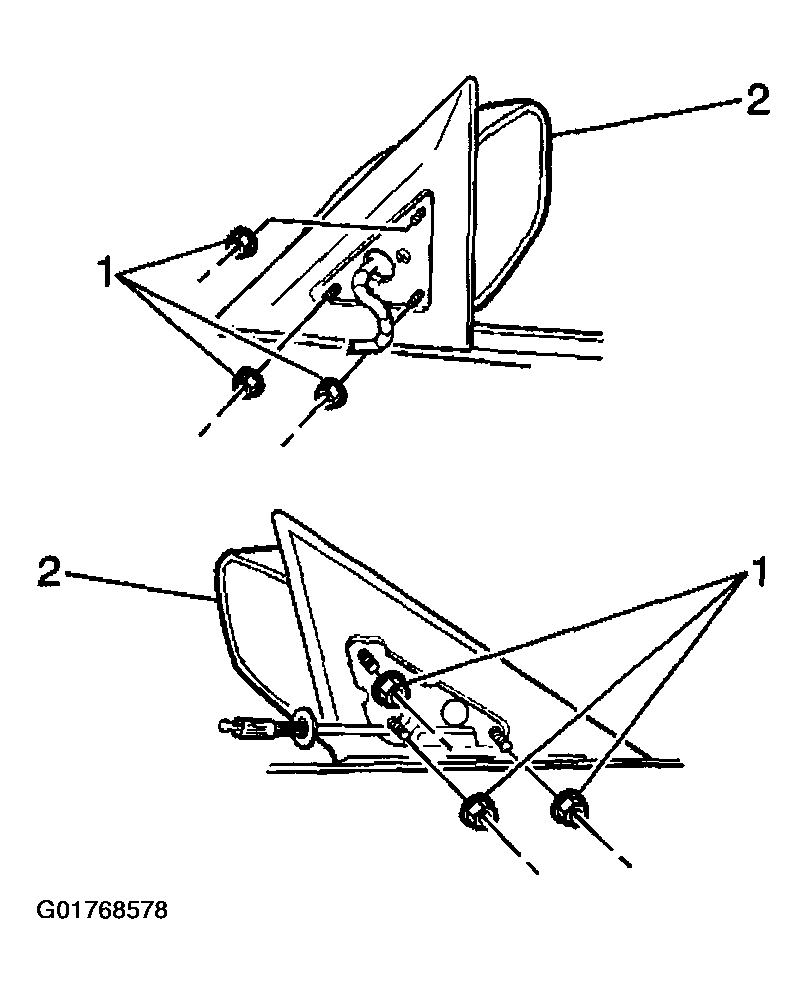

    Fig 2: Removing Outside Rearview Mirror
    G01768578Courtesy of GENERAL MOTORS CORP.
