Cooling System Connector End Views

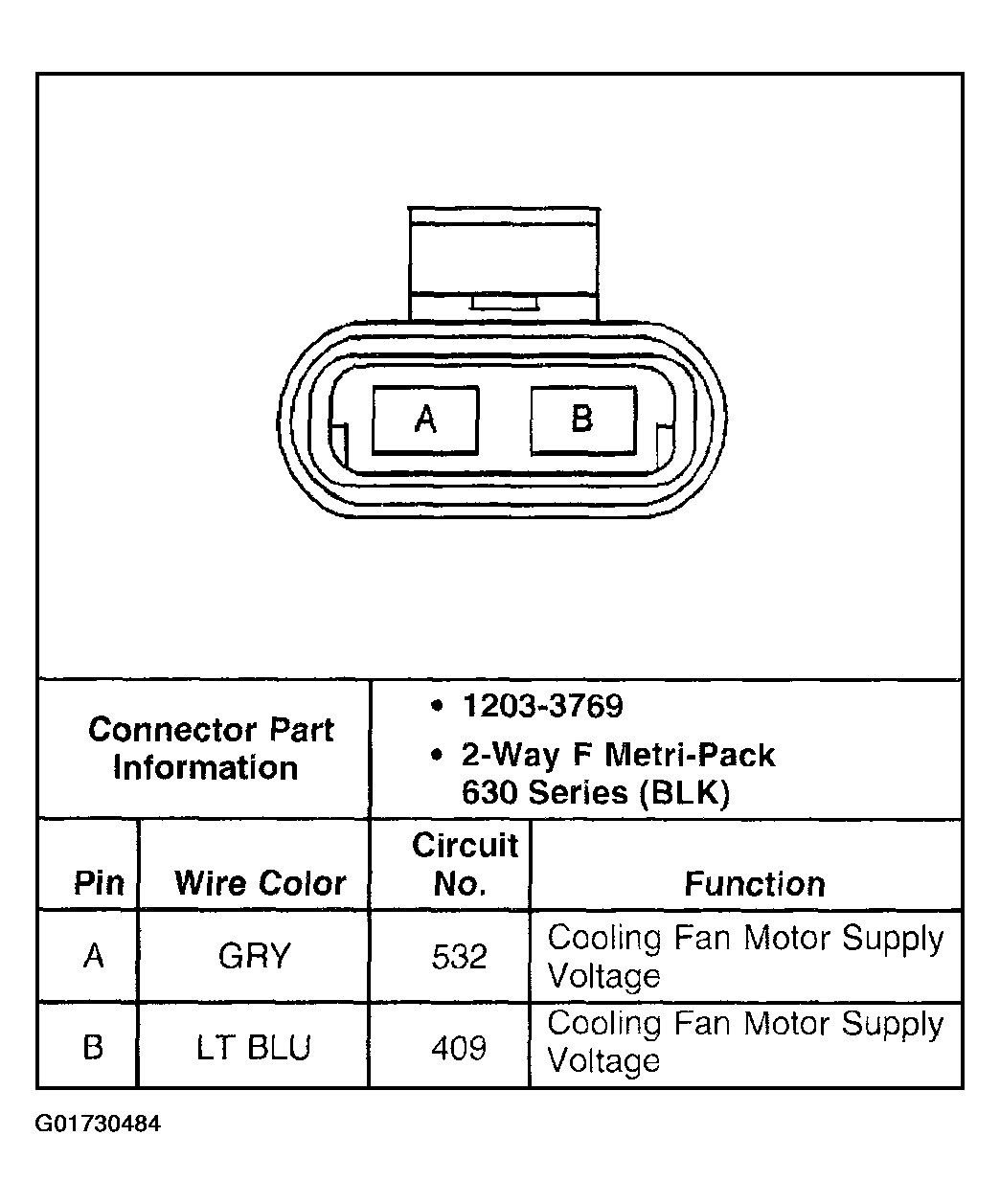

Fig 1: Cooling Fan Left
G01730484Courtesy of GENERAL MOTORS CORP.

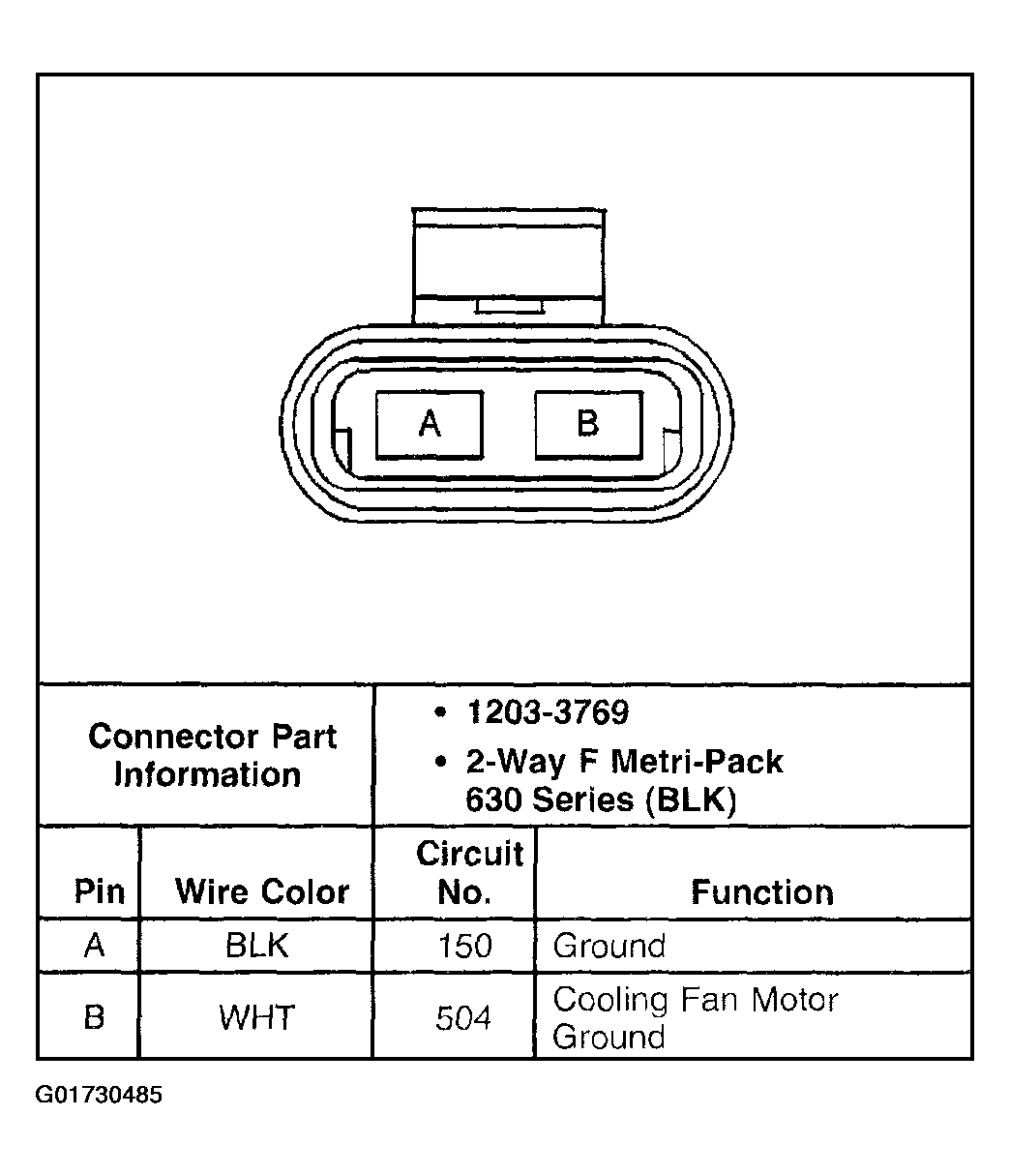

Fig 2: Cooling Fan Right
G01730485Courtesy of GENERAL MOTORS CORP.
