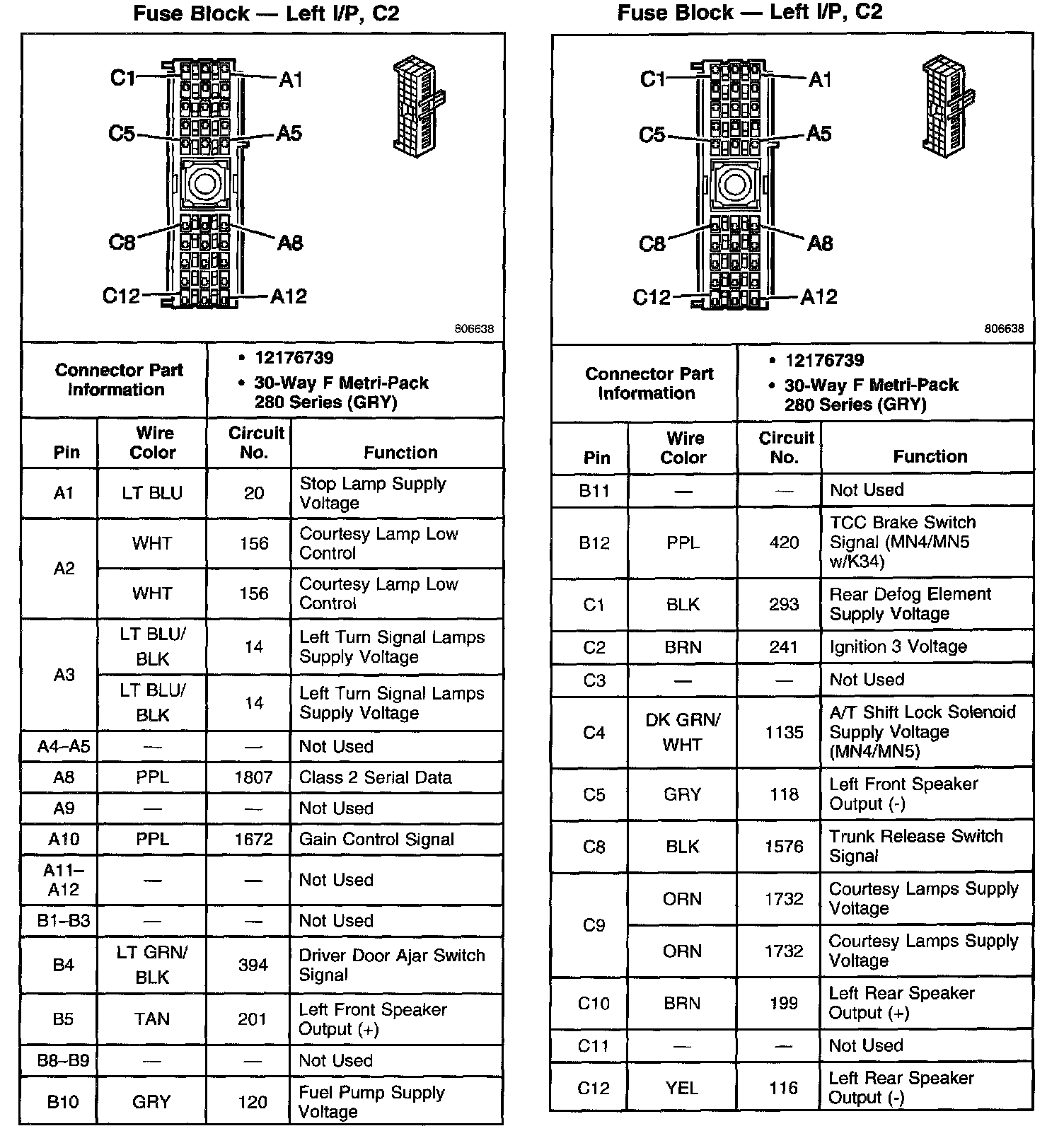

Fuse Block - Left I/P, C2

Fuse Block - Left I/P, C2:





For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
