Tire Monitoring System

Tire Pressure Monitoring System Connector End Views

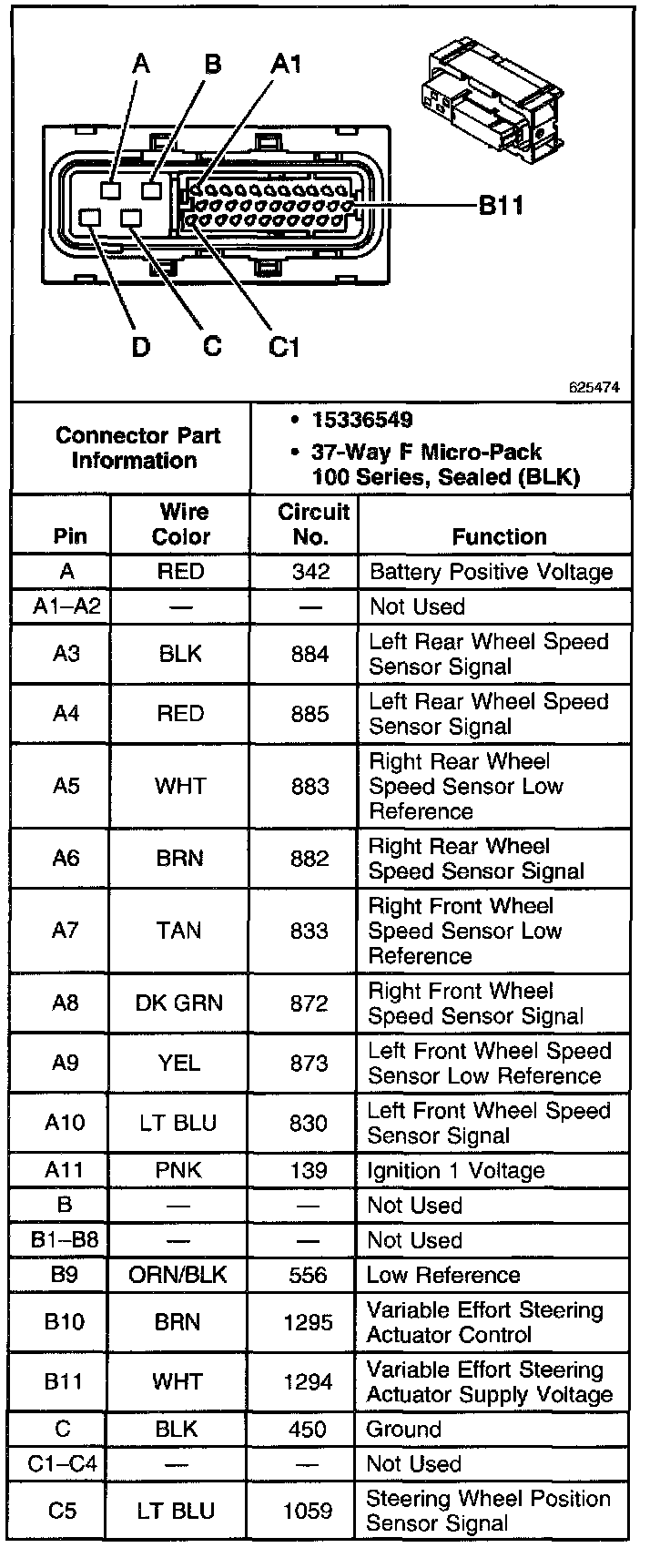

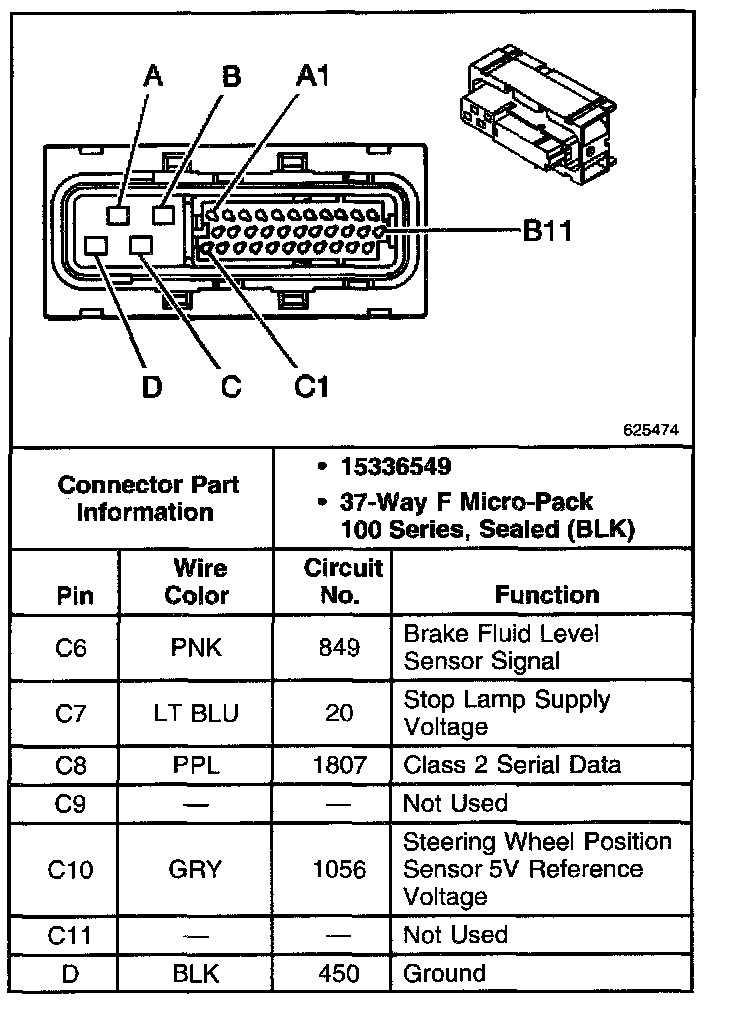

Electronic Brake Control Module (EBCM)





Wheel Speed Sensor (WSS)-LF





Wheel Speed Sensor (WSS)-LR





Wheel Speed Sensor (WSS)-RF





Wheel Speed Sensor (WSS)-RR
