Fuse Block: Application and ID

Underhood Fuse Block Label:

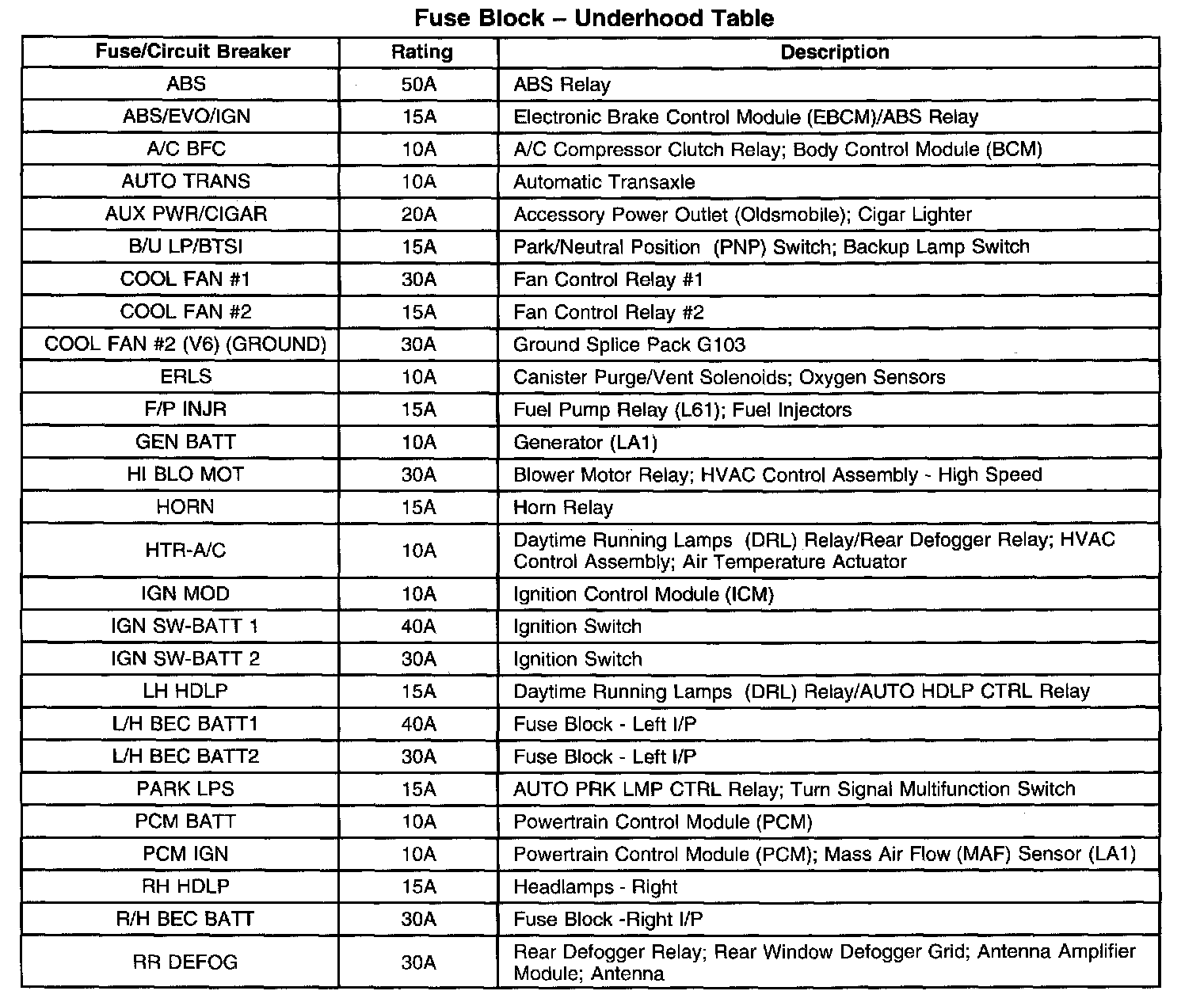

Fuse Block - Underhood Table:

For a description of the RPO Code(s) shown in this article/images refer to the RPO Code List found at Vehicle/Application ID RPO Codes
